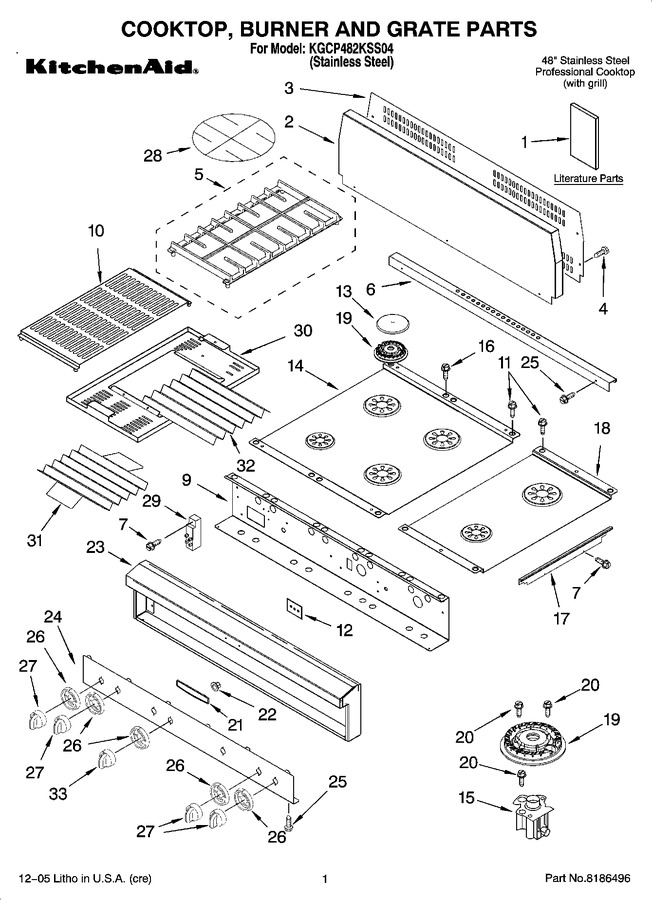

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8285497 | Wiring Diagram |
|
- | |||||
| 1 | 8286611 | Use & Care Guide |
|
- | |||||
| 1 | 9759405 | Installation Instructions |
|
- | |||||
| 1 | 9759442 | Instructions, Lp Conversion |
|
- | |||||
| 2 | 8284730 | Backsplash |
|
- | |||||
| 3 | 8284760 | Support, Backsplash |
|
- | |||||
| 4 | WP3196557 | Screw, 8-18 X 3/8 (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 5 | 4457149 | Grate, Burner |
|
- | |||||
| 6 | 8284852 | Trim, Island |
|
- | |||||
| 7 | WP12990527 | Screw, 8-18 X 1/4 (Replaces: 3400843) |
|
Immediately | $ 7.15 | ||||
| 9 | 8285486 | Support, Control Panel |
|
- | |||||
| 10 | 4457151 | Grate, Grill |
|
- | |||||
| 11 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 12 | W10491984 | Seal (Replaces: 3192439) |
|
$ 10.33 | |||||
| 13 | WP8284669 | Cap, Burner (6k (2)) (Replaces: 8284669) |
|
Immediately | $ 64.79 | ||||
| 13 | 4455243 | Cap, Burner (14k (2)) |
|
$ 41.37 | |||||
| 14 | 9760869 | Cooktop (24``) |
|
- | |||||
| 15 | WPW10155786 | Holder, Orifice Includes Orifice (turbo (4)) (Replaces: 4456622) |
|
Immediately | $ 102.16 | ||||
| 15 | 4456920 | Holder, Orifice Includes Orifice (auxillary (2)) |
|
- | |||||
| 16 | WP4449743 | Screw (Replaces: 4449743) |
|
$ 6.47 | |||||
| 17 | 4457297 | Trim, Side (left Hand) |
|
- | |||||
| 17 | 4457296 | Trim, Side (right Hand) |
|
- | |||||
| 18 | 9760863 | Cooktop (12``) |
|
- | |||||
| 19 | 4455849 | Burner Head 14k (turbo (2)) |
|
$ 47.68 | |||||
| 19 | 4455979 | Burner Head 14k (auxillary (2)) |
|
$ 28.52 | |||||
| 20 | WP3368921 | Screw, 7-18 X 3/4 (Replaces: 3368921) |
|
Immediately | $ 6.42 | ||||
| 21 | 2005292 | Nameplate |
|
$ 52.20 | |||||
| 22 | WP2004333 | Palnut (Replaces: 2004333) |
|
$ 9.63 | |||||
| 23 | 8284939 | Control Frame |
|
- | |||||
| 24 | 4457158 | Panel, Control |
|
- | |||||
| 25 | W11233072 | Screw, 8-18 X 1/2 (Replaces: 3196176) |
|
Immediately | $ 12.62 | ||||
| 26 | 4455192 | Bezel, Knob |
|
- | |||||
| 27 | WPW10078400 | Knob, Burner (Replaces: 4454970) |
|
$ 6.26 | |||||
| 28 | 4455109 | Plate, Simmer |
|
$ 52.31 | |||||
| 29 | WPW10110486 | Module, Spark (Replaces: 8522424) |
|
$ 285.33 | |||||
| 30 | 8284918 | Frame, Wave Tray |
|
- | |||||
| 31 | 8284919 | Plate, Wave |
|
- | |||||
| 32 | 8284917 | Plate, Wave Tray |
|
- | |||||
| 32 | WP3177991 | Screw (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 33 | 8284742 | Knob, Grill |
|
- |
