SELECT A DIAGRAM
01 - Cooktop, Burner And Grate Parts

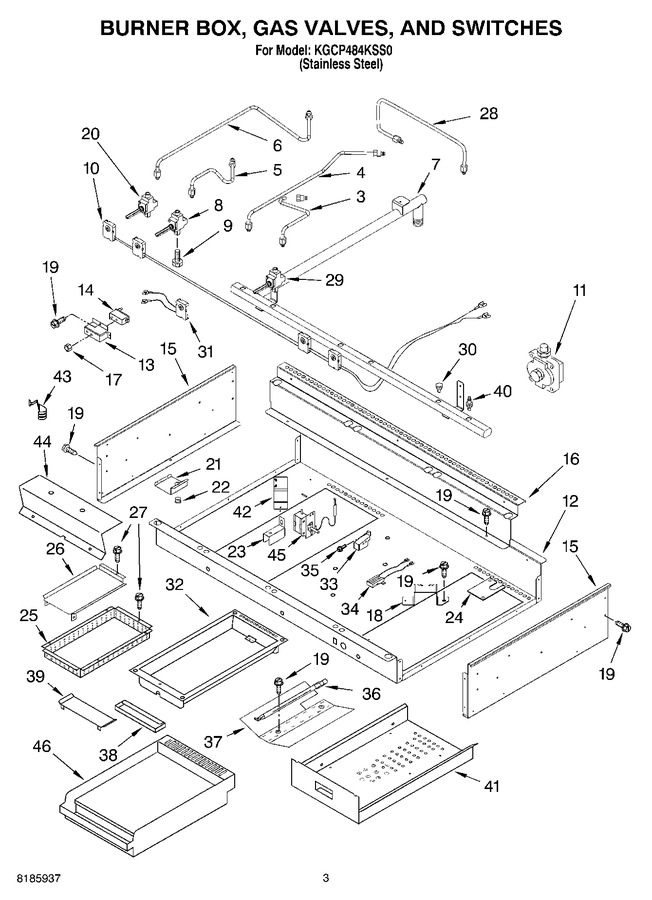

02 - Burner Box, Gas Valves, Switches
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 4455151 | Tubing, Gas Burner - Cf |
|
- | |||||
| 4 | 4455152 | Tubing, Gas |
|
- | |||||
| 5 | 4455153 | Tubing, Gas Burner - Cr Burner - Lf |
|
- | |||||
| 6 | 4455154 | Tubing, Gas Burner - Lr |
|
- | |||||
| 7 | 8284737 | Manifold (includes Items No.9 & No.30) |
|
- | |||||
| 8 | 3192157 | Valve, Burner (turbo) |
|
- | |||||
| 9 | 3185829 | Bolt, Valve |
|
- | |||||
| 10 | 8284816 | Burner Switch & Harness Assembly |
|
- | |||||
| 10 | WP3188425 | Seal, Switch (Replaces: 3191387) |
|
$ 82.61 | |||||
| 11 | WP9759091 | Regulator, Pressure (Replaces: 4455157) |
|
Immediately | $ 291.80 | ||||
| 12 | 8284902 | Burner Box |
|
- | |||||
| 13 | 8284805 | Bracket, Griddle Valve |
|
- | |||||
| 13 | 8284795 | Bracket, Grill Valve |
|
- | |||||
| 14 | 8284788 | Valve, Griddle |
|
$ 183.21 | |||||
| 14 | 8284858 | Valve, Grill |
|
$ 191.46 | |||||
| 15 | 8284735 | Side, Burner Box (right Hand) |
|
- | |||||
| 15 | 8284736 | Side, Burner Box (left Hand) |
|
- | |||||
| 16 | 8285044 | Support, Rear |
|
- | |||||
| 17 | WP488130 | Nut, Hex (Replaces: 488130) |
|
$ 6.27 | |||||
| 18 | 3192811 | Bracket, Burner |
|
- | |||||
| 19 | WP3177991 | Screw, 8-18 X 1/4 (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 20 | 3191292 | Valve, Burner Auxillary |
|
$ 120.40 | |||||
| 21 | 8284680 | Cover, Shelf |
|
- | |||||
| 22 | 8284722 | Bushing, Cover Shelf |
|
- | |||||
| 23 | 4449845 | Bracket-support |
|
- | |||||
| 24 | 4455139 | Cover, Panel |
|
- | |||||
| 25 | 8285031 | Box, Burner Lower |
|
- | |||||
| 26 | 8284960 | Guard, Rear Spill |
|
- | |||||
| 27 | WP12990527 | Screw (Replaces: 3400843) |
|
Immediately | $ 7.15 | ||||
| 28 | 8284790 | Tube, Grill |
|
- | |||||
| 28 | 8284966 | Tube, (griddle) |
|
- | |||||
| 29 | 8284922 | Valve, Gas Grill |
|
- | |||||
| 30 | 8284796 | Plug, Manifold (close) |
|
- | |||||
| 31 | 8284974 | Harness, Switch Grill |
|
- | |||||
| 32 | 8284787 | Module, Grill |
|
- | |||||
| 33 | 8284800 | Bracket, Ignitor (griddle) |
|
- | |||||
| 33 | 8284968 | Bracket, Ignitor (grill) |
|
- | |||||
| 34 | 8284941 | Ignitor, Grill |
|
$ 98.51 | |||||
| 35 | 3400855 | Screw |
|
- | |||||
| 36 | 8284764 | Log Burner, Grill |
|
- | |||||
| 36 | 8284991 | Log Burner, Griddle |
|
- | |||||
| 37 | 8284900 | Deflector |
|
- | |||||
| 38 | 8284791 | Tray, Drip (grill) |
|
- | |||||
| 38 | 8284763 | Tray, Drip (griddle) |
|
- | |||||
| 39 | 8285030 | Guard, Spill |
|
- | |||||
| 40 | 8284804 | Plug, Manifold (open) |
|
- | |||||
| 41 | 8285050 | Enclosure, Griddle |
|
- | |||||
| 42 | 8284993 | Bracket, Thermo |
|
- | |||||
| 43 | 98005642 | Clip, Bulb (Replaces: 313382) |
|
Immediately | $ 74.64 | ||||
| 44 | 8284811 | Bracket |
|
- | |||||
| 45 | 8284765 | Griddle, Thermo |
|
$ 255.18 | |||||
| 46 | 8284782 | L.p. Orifice Spud Pack |
|
- | |||||
| 46 | 3191418 | Harness, Wire Jumper (6 Burner) |
|
- | |||||
| 46 | 8284772 | Harness, Wire Ignitor (brown) |
|
- | |||||
| 46 | 8285048 | Harness, Wire Jumper (white) |
|
- | |||||
| 46 | 8285000 | Harness, Wire Jumper (black) |
|
- | |||||
| 46 | 3192230 | Harness, Ignitor |
|
- | |||||
| 46 | 8284759 | Module, Griddle |
|
- | |||||
| 46 | W10392007 | Power Cord (Replaces: 3192231) |
|
$ 96.25 | |||||
| 46 | 1129449 | Bushing |
|
- | |||||
| 46 | 4173634 | Bushing, Electric |
|
$ 5.83 | |||||
| 46 | 8285047 | Harness, Spark Jmp Combo |
|
- | |||||
| 46 | 8284847 | Harness, Wire Jumper |
|
- |
