01 - Cooktop, Burner And Grate Parts

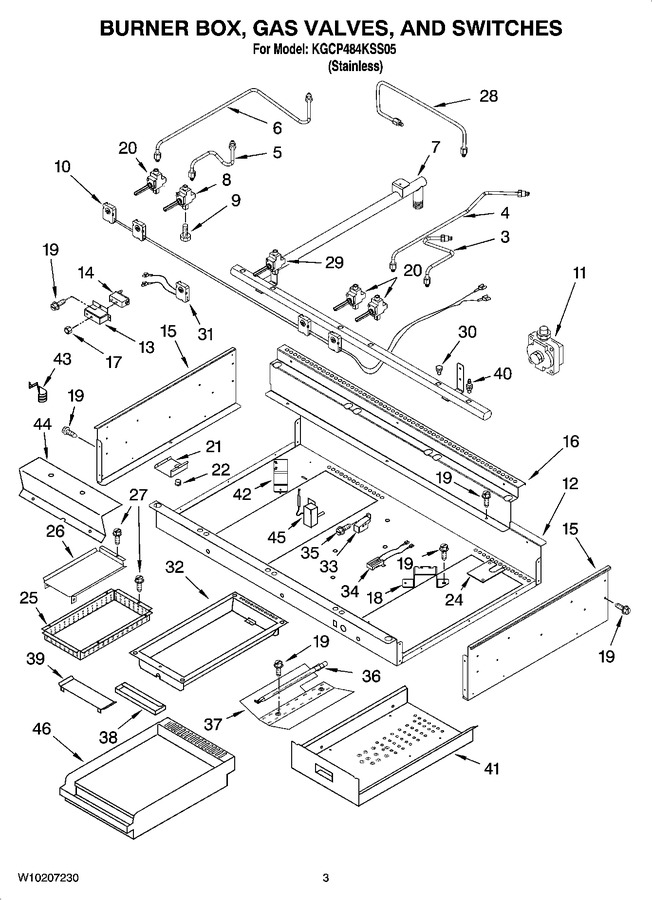

02 - Burner Box, Gas Valves, And Switches, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 4455151 | Tubing, Gas Burner - Cf |
|
- | |||||
| 4 | 4455152 | Tubing, Gas |
|
- | |||||
| 5 | 4455153 | Tubing, Gas Burner - Cr Burner - Lf |
|
- | |||||
| 6 | 4455154 | Tubing, Gas Burner - Lr |
|
- | |||||
| 7 | 8284737 | Manifold (includes Items 9 & 30) |
|
- | |||||
| 8 | WP4456816 | Valve, Burner Small (red) (Replaces: 4456816) |
|
Immediately | $ 286.55 | ||||
| 9 | 8523704 | Bolt, Valve |
|
- | |||||
| 10 | 4456908 | Burner Switch & Harness Assembly |
|
- | |||||
| 10 | WP3188425 | Seal, Switch (Replaces: 3191387) |
|
$ 82.61 | |||||
| 11 | WP9759091 | Regulator, Pressure (Replaces: 9759091) |
|
Immediately | $ 291.80 | ||||
| 12 | 4457096 | Burner Box |
|
- | |||||
| 13 | 9760834 | Bracket, Griddle Valve |
|
- | |||||
| 13 | 9760835 | Bracket, Grill Valve |
|
- | |||||
| 14 | 8284788 | Valve, Griddle |
|
$ 183.21 | |||||
| 14 | 8284858 | Valve, Grill |
|
$ 191.46 | |||||
| 15 | 8285487 | Side, Burner Box (right) |
|
- | |||||
| 15 | 8285488 | Side, Burner Box (left) |
|
- | |||||
| 16 | 9759138 | Support, Rear |
|
- | |||||
| 17 | WP488130 | Hex Nut (Replaces: 488130) |
|
$ 6.27 | |||||
| 18 | 3192811 | Bracket, Burner |
|
- | |||||
| 19 | WP3177991 | Screw (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 20 | 4456818 | Valve, Burner Turbi (bronze) |
|
$ 231.30 | |||||
| 21 | 8284680 | Cover, Shelf |
|
- | |||||
| 22 | 8284722 | Bushing, Cover Shelf |
|
- | |||||
| 24 | 8285361 | Cover, Panel |
|
- | |||||
| 25 | W10095290 | Box, Burner Lower |
|
- | |||||
| 26 | W10157552 | Guard, Rear Spill |
|
- | |||||
| 27 | WP12990527 | Screw (Replaces: 3400843) |
|
Immediately | $ 7.15 | ||||
| 28 | 8284790 | Tube, Grill |
|
- | |||||
| 28 | 8284966 | Tube, (griddle) |
|
- | |||||
| 29 | 4456819 | Valve, Gas Grill |
|
$ 65.38 | |||||
| 30 | 8284796 | Plug, Manifold (close) |
|
- | |||||
| 31 | 9760882 | Harness, Switch Grill |
|
$ 59.02 | |||||
| 32 | W10120890 | Module, Grill |
|
- | |||||
| 33 | W10157553 | Bracket, Ignitor (grill) |
|
- | |||||
| 33 | W10157547 | Bracket, Ignitor (griddle) |
|
- | |||||
| 34 | 8284941 | Ignitor, Grill |
|
$ 98.51 | |||||
| 35 | 3400855 | Screw |
|
- | |||||
| 36 | 8285052 | Log Burner, Grill |
|
- | |||||
| 36 | 8285051 | Log Burner, Griddle |
|
$ 60.54 | |||||
| 37 | W10157550 | Deflector |
|
- | |||||
| 38 | W10157582 | Tray, Drip (griddle) |
|
- | |||||
| 38 | W10157581 | Tray, Drip (grill) |
|
- | |||||
| 39 | W10157554 | Guard, Front Spill |
|
- | |||||
| 40 | 8284804 | Plug, Manifold (open) |
|
- | |||||
| 41 | 8285056 | Enclosure, Griddle |
|
- | |||||
| 42 | 8284993 | Bracket, Thermo |
|
- | |||||
| 43 | 98005642 | Clip, Bulb (Replaces: 313382) |
|
Immediately | $ 74.64 | ||||
| 44 | W10157545 | Bracket, Thermostat Bulb |
|
- | |||||
| 45 | 8284765 | Griddle, Thermo |
|
$ 255.18 | |||||
| 46 | W10115169 | Module, Griddle |
|
$ 850.98 | |||||
| W10392007 | Power Cord (Replaces: 9763116) |
|
$ 96.25 | ||||||
| W10491984 | Seal, Limiter (Replaces: 3192439) |
|
$ 10.33 | ||||||
| 1129449 | Bushing |
|
- | ||||||
| 8284782 | L.p. Orifice Spud Pack |
|
- | ||||||
| 4456627 | Harness, Ignitor |
|
$ 189.13 | ||||||
| 8284847 | Harness, Jumper Valve |
|
- | ||||||
| 8285000 | Harness, Wire Jumper (black) |
|
- | ||||||
| 8285048 | Harness, Wire Jumper (white) |
|
- | ||||||
| 8285047 | Harness, Spark Jmp Combo |
|
- | ||||||
| 4173634 | Bushing, Electric (Replaces: FE02349) |
|
$ 5.83 |
