SELECT A DIAGRAM

01 - Cooktop, Burner And Grate Parts

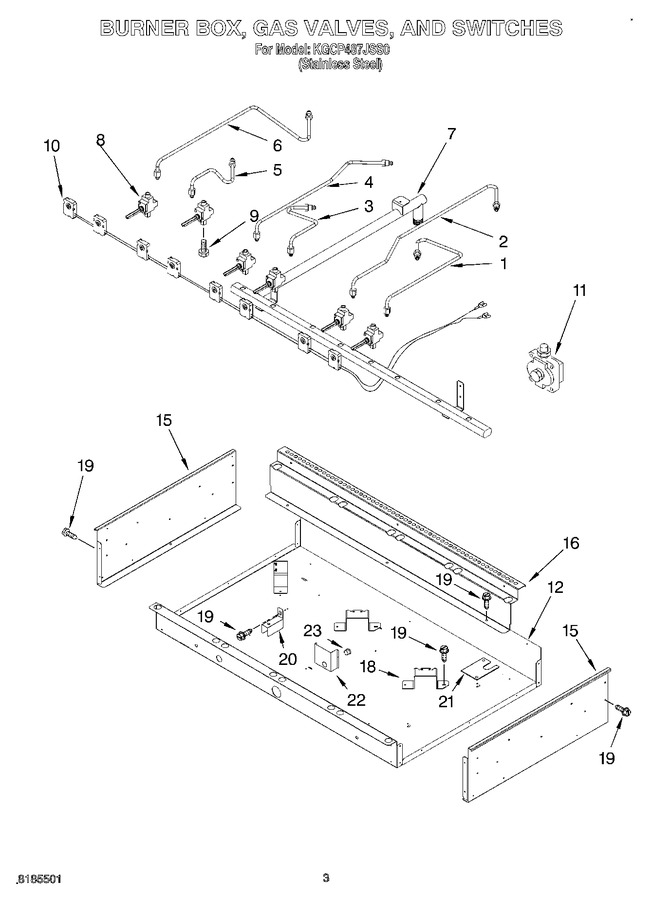

02 - Burner Box, Gas Valves, And Switches


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4455040		Tubing, Gas Burner - Rf		Appelez-nous	-
2	4455041		Tubing, Gas Burner - Rr		Appelez-nous	-
3	4455151		Tubing, Gas Burner - Cf		Appelez-nous	-
4	4455152		Tubing, Gas Burner - Cr		Appelez-nous	-
5	4455153		Tubing, Gas Burner - Lf		Appelez-nous	-
6	4455154		Tubing, Gas Burner - Lr		Appelez-nous	-
7	8284592		Manifold		Appelez-nous	-
8	3191292		Valve, Burner (small, Lf-rf)				$ 120.40
8	3192157		Valve, Burner (large (6))		Appelez-nous	-
9	307630		Bolt, Valve		Appelez-nous	-
10	8284661		Burner Switch & Harness Assembly		Appelez-nous	-
11	WP9759091		Regulator, Pressure   (Replaces: 4455157)			Immediately	$ 291.80
12	8284810		Burner Box		Appelez-nous	-
15	8284677		Side, Burner Box (right Side)		Appelez-nous	-
15	8284678		Side, Burner Box (left Side)		Appelez-nous	-
16	8284773		Support, Rear		Appelez-nous	-
18	3192811		Bracket, Burner		Appelez-nous	-
19	WP3177991		Screw, 8-18 X 1/4   (Replaces: 3177991)			Immediately	$ 6.47
20	4449845		Bracket-support		Appelez-nous	-
21	4455139		Cover, Manifold Slot		Appelez-nous	-
22	8284680		Cover, Shelf		Appelez-nous	-
23	8284722		Bushing, Cover Shelf		Appelez-nous	-
23	8284771		Harness, Wire Ignitor		Appelez-nous	-
23	3191418		Harness, Wire Jumper		Appelez-nous	-
23	1129449		Bushing		Appelez-nous	-
23	8284663		L.p. Orifice Spud Pack		Appelez-nous	-
23	W10392007		Power Cord   (Replaces: 3192231)				$ 96.25

    View Diagram in Separate Window       Print Part List
