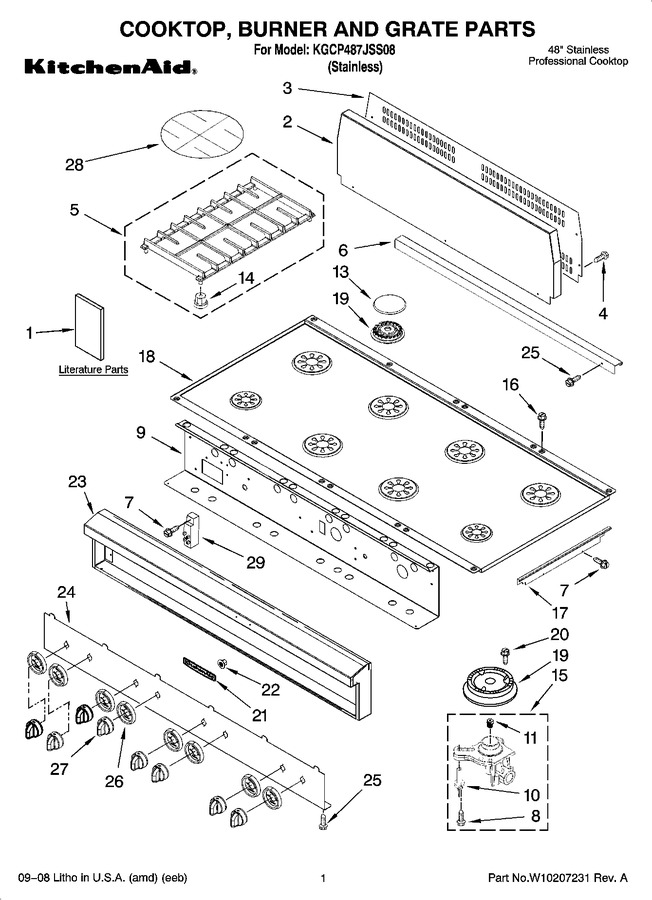

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9759405 | Installation Instructions |
|
- | |||||
| 1 | 9759442 | Instructions, Lp Conversion |
|
- | |||||
| 1 | W10086200 | Use & Care Guide |
|
- | |||||
| 2 | W10157555 | Backsplash |
|
- | |||||
| 3 | 8285058 | Support, Backsplash |
|
- | |||||
| 4 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 5 | W10106670 | Grate, Burner |
|
- | |||||
| 6 | W10157521 | Trim, Island |
|
- | |||||
| 7 | WP3177991 | Screw (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 8 | WP8273062 | Screw, Spark Electrode (Replaces: 8273062) |
|
Immediately | $ 7.12 | ||||
| 9 | 8285486 | Support, Control Panel |
|
- | |||||
| 10 | WP9782116 | Electrode (Replaces: 9782116) |
|
Immediately | $ 49.45 | ||||
| 11 | 3192525 | Orifice (14k) |
|
$ 38.58 | |||||
| 11 | 8286473 | Orifice (6k) |
|
$ 73.44 | |||||
| 13 | 4455243 | Cap, Burner (turbo, 14k) |
|
$ 41.37 | |||||
| 13 | WP8284669 | Cap, Burner (auxi (6k)) (Replaces: 8284669) |
|
Immediately | $ 64.79 | ||||
| 14 | W10185266 | Bumper, Grate (Replaces: 8286695) |
|
Immediately | $ 13.26 | ||||
| 15 | WPW10155786 | Orifice Holder Includes Orifice (turbo, 14k) (Replaces: W10155786) |
|
Immediately | $ 102.16 | ||||
| 15 | W10128449 | Orifice Holder Includes Orifice (auxi, 6k) |
|
- | |||||
| 16 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 17 | W10157586 | Trim, Side (right) |
|
- | |||||
| 17 | W10157587 | Trim, Side (left) |
|
- | |||||
| 18 | 9760873 | Cooktop |
|
- | |||||
| 19 | 4455849 | Burner Head (turbo (14k)) |
|
$ 47.68 | |||||
| 19 | 4455979 | Burner Head (auxi (6k)) |
|
$ 28.52 | |||||
| 20 | WP3368921 | Screw (Replaces: 3368921) |
|
Immediately | $ 6.42 | ||||
| 21 | 2005292 | Nameplate |
|
$ 52.20 | |||||
| 22 | WP2004333 | Palnut (Replaces: 2004333) |
|
$ 9.63 | |||||
| 23 | W10157551 | Control Frame |
|
- | |||||
| 24 | W10199056 | Panel, Control |
|
- | |||||
| 25 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 12.62 | ||||
| 26 | 4455192 | Bezel, Knob |
|
- | |||||
| 27 | WPW10078400 | Knob, Burner (Replaces: W10078400) |
|
$ 6.26 | |||||
| 28 | 4455109 | Plate, Simmer |
|
$ 52.31 | |||||
| 29 | WPW10110491 | Module, Spark (Replaces: W10110488) |
|
Immediately | $ 276.35 |
