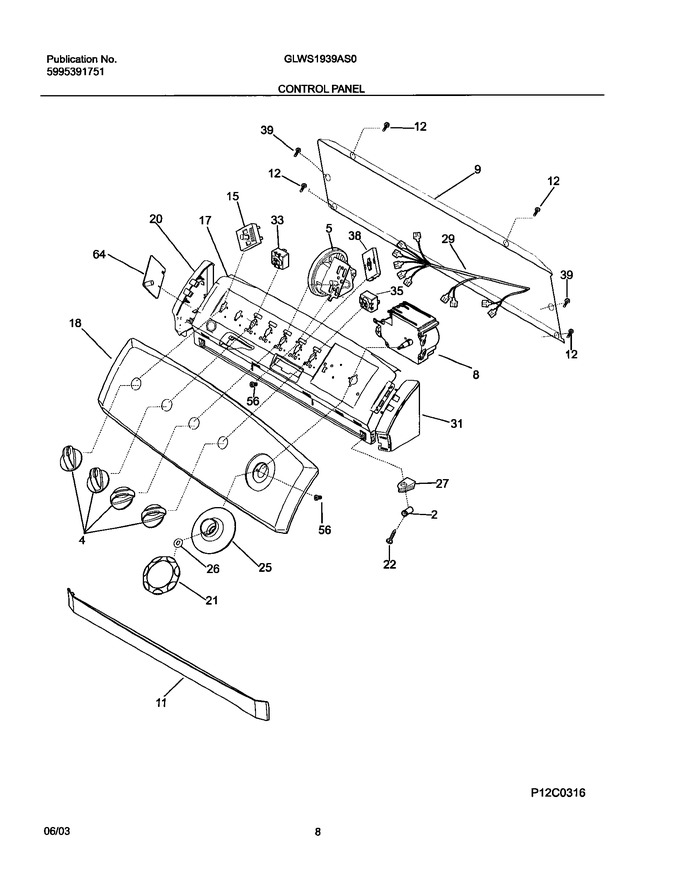

09 - Control Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	134096100		Spacer,console Mtg				$ 13.55
4	134844410		Knob,rotary ,white   (Replaces: 134034900)			Immediately	$ 57.36
9	131992910		Panel,backsheet ,console				$ 64.73
11	134019900		Closure,console Trim ,white ,front				$ 66.68
12	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
17	131993010		Bracket,control Mtg.		Appelez-nous	-
18	134220600		Panel,trimplate ,console Front		Appelez-nous	-
20	134019610		End Cap,white ,lh				$ 46.31
21	134034800		Knob,timer ,white ,assy				$ 54.13
22	131266330		Screw,8-18 X 1.250				$ 7.63
25	134034700		Pointer-timer				$ 54.60
26	5308015493		Spacer-timer Shaft				$ 14.36
27	131197000		Clip-console Mtg				$ 13.62
31	134019600		End Cap,white ,rh				$ 46.10
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive			Immediately	$ 14.18
56	131243800		Screw,pan Hd Locking ,8-32ca X 0.375 ,cup Point				$ 10.46
F15	134215200		Switch,temp Selector ,3 Posn Rotary		Appelez-nous	-
F29	134216200		Wiring Harness,controls		Appelez-nous	-
F33	134214800		Switch,option Selector ,2 Position		Appelez-nous	-
F35	131243200		Switch,cycle Signal ,2 Position		Appelez-nous	-
F38	131959200		Beeper Continuous Low Tone				$ 134.82
F5	134421000		Switch,pressure ,infinite   (Replaces: 134218500)				$ 213.26
F64	131891000		Control Board,temperature ,automatic		Appelez-nous	-
F8	134216100		Timer,5 Off ,with Buzzer		Appelez-nous	-
NI	134220900		Energy Guide		Appelez-nous	-
