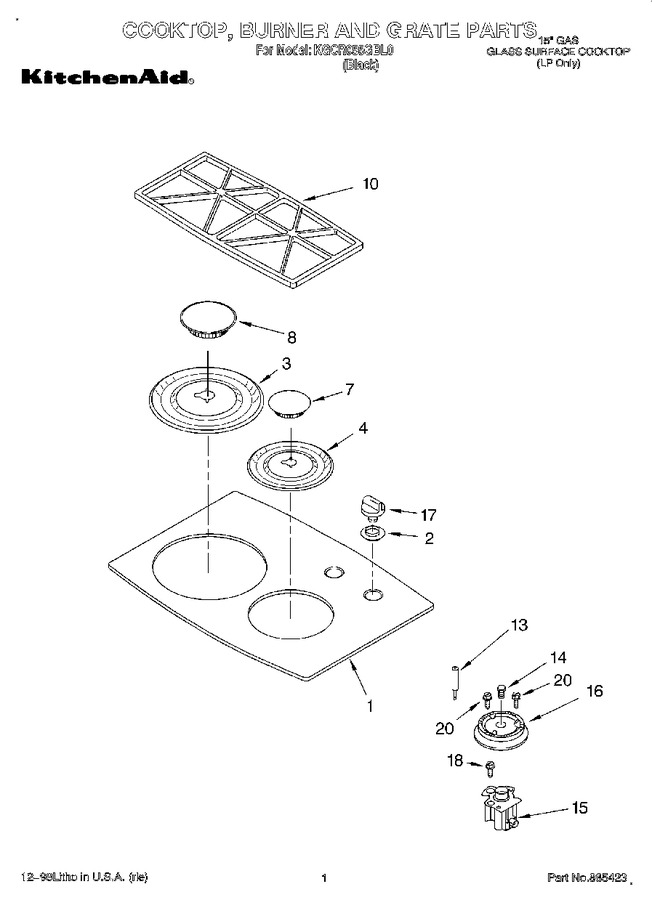

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3192373 | Cooktop, Glass (black) |
|
- | |||||
| 2 | W10854242 | Grommet, Glass Cooktop (4) (Replaces: 3180079) |
|
Immediately | $ 7.58 | ||||
| 3 | 3191302 | Bezel, Cooktop (large) |
|
- | |||||
| 4 | 3191307 | Bezel, Cooktop (small) |
|
- | |||||
| 7 | 3191728 | Cap, Burner (small) |
|
$ 33.65 | |||||
| 8 | 3191731 | Cap, Burner (large) |
|
$ 35.27 | |||||
| 10 | 3191485 | Grate, Burner |
|
$ 96.94 | |||||
| 13 | 3192527 | Ignitor |
|
- | |||||
| 14 | 3192198 | Orifice, Spud Pack |
|
- | |||||
| 15 | 3192305 | Holder, Orifice (includes Items 13 & 14) (front) |
|
- | |||||
| 15 | 3192311 | Holder, Orifice (includes Items 13 & 14) (rear) |
|
- | |||||
| 16 | 9753187 | Head, Burner (rear) |
|
- | |||||
| 16 | 9753109 | Head, Burner (front) |
|
- | |||||
| 17 | WP3191922 | Knob, Control (2) (Replaces: 3191922) |
|
Immediately | $ 6.47 | ||||
| 18 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 20 | WP3400814 | Screw (Replaces: 3400863) |
|
$ 3.96 |
