SELECT A DIAGRAM
01 - Cooktop, Burner And Grate Parts

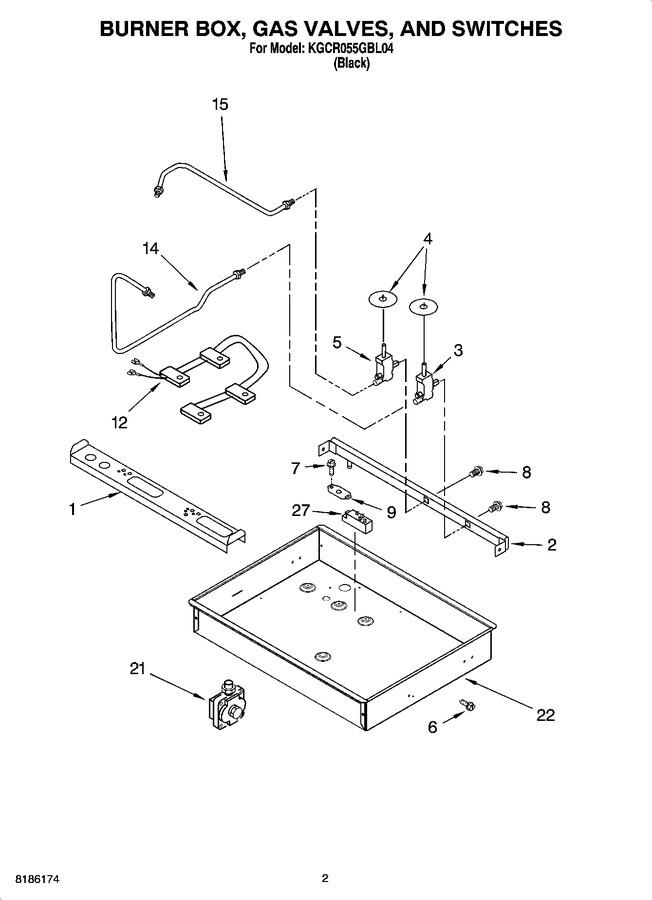

02 - Burner Box, Gas Valves, And Switches
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10203756 | Rail, Burner (Replaces: 3191557) |
|
- | |||||
| 2 | 6610009 | Pipe, Manifold |
|
- | |||||
| 3 | 3191292 | Valve, Gas Burner Front |
|
$ 120.40 | |||||
| 4 | WP3188425 | Seal, Shaft (Replaces: 3191387) |
|
$ 82.61 | |||||
| 5 | 3191293 | Valve, Gas Burner Rear |
|
$ 122.26 | |||||
| 6 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 7 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 8 | 8523704 | Bolt, Gas Valve |
|
- | |||||
| 9 | 3192491 | Bracket, Support |
|
- | |||||
| 12 | 4456702 | Harness & Switches |
|
- | |||||
| 14 | 3192343 | Tubing, Gas Burner (front) |
|
- | |||||
| 15 | 3192344 | Tubing, Gas Burner (rear) |
|
- | |||||
| 21 | 3186570 | Regulator, Pressure |
|
- | |||||
| 22 | 4456776 | Burner Box |
|
- | |||||
| 27 | N/A | Wiring Harness Parts |
|
- | |||||
| 27 | 4455116 | Hardware, Mounting |
|
- | |||||
| 27 | 3191931 | Seal, Foam 15`` |
|
- | |||||
| 27 | 4456626 | Harness, Ignitor 15`` |
|
$ 66.34 | |||||
| 27 | 4456629 | Harness, Wire Ignitor 15`` |
|
- | |||||
| 27 | WP12990527 | Screw (2) (Replaces: 3400843) |
|
Immediately | $ 7.15 | ||||
| 27 | 8522422 | Module Spark Reignition |
|
$ 123.44 | |||||
| 27 | W10392007 | Cord, Power (Replaces: 3192231) |
|
$ 96.25 | |||||
| 27 | 4173634 | Bushing, Cord |
|
$ 5.83 |
