SELECT A DIAGRAM

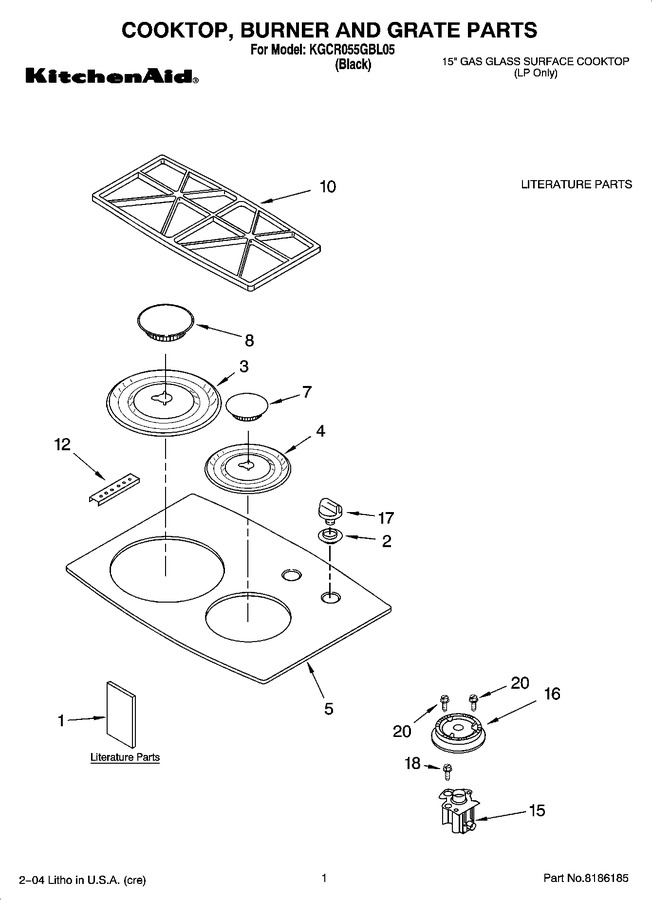

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT4455834		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT3193071		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT3192097		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
2	W10854242		Grommet, Glass Cooktop (4)   (Replaces: 3180079)			Immediately	$ 7.58
3	3191302		Bezel, Cooktop (large)		Appelez-nous	-
4	3191307		Bezel, Cooktop (small)		Appelez-nous	-
5	3192373		Cooktop, Glass		Appelez-nous	-
7	3191728		Cap, Burner (small)				$ 33.65
8	3191731		Cap, Burner (large)				$ 35.27
10	4456435		Grate, Burner		Appelez-nous	-
12	8186533		Bracket, Mounting   (Replaces: 4455917)				$ 79.60
12	WP3400093		Screw   (Replaces: 3400093)				$ 6.47
15	4456624		Holder, Orifice (includes Items 13 & 14) (semi Rapid)		Appelez-nous	-
15	4456625		Holder, Orifice (includes Items 13 & 14) (auxi)		Appelez-nous	-
16	4455979		Head, Burner (auxi)				$ 28.52
16	WP4455980		Head, Burner (semi Rapid)   (Replaces: 4455980)				$ 55.89
17	WP3191922		Knob, Control (2)   (Replaces: 3191922)			Immediately	$ 6.47
18	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
20	WP3368921		Screw   (Replaces: 3368921)			Immediately	$ 6.42
