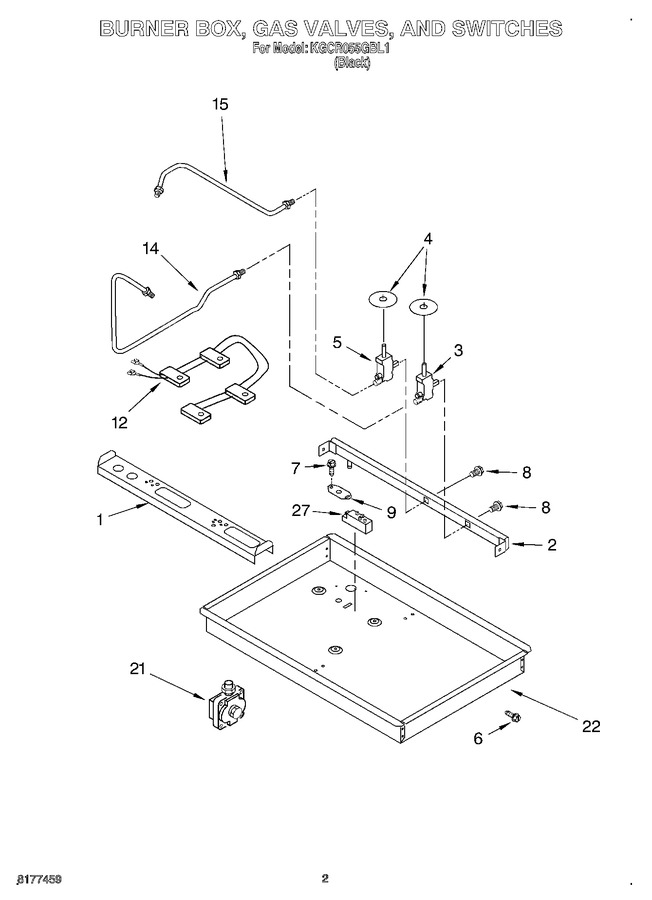

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10203756		Rail, Burner   (Replaces: 3191557)		Appelez-nous	-
2	3191297		Pipe, Manifold		Appelez-nous	-
3	3191292		Valve, Gas Burner Front				$ 120.40
4	WP3188425		Seal, Shaft   (Replaces: 3191387)				$ 82.61
5	3191293		Valve, Gas Burner Rear				$ 122.26
6	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
7	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.47
8	307630		Bolt, Gas Valve		Appelez-nous	-
9	3192491		Bracket, Support		Appelez-nous	-
12	3191334		Harness & Switches				$ 87.56
14	3192343		Tubing, Gas Burner (front)		Appelez-nous	-
15	3192344		Tubing, Gas Burner (rear)		Appelez-nous	-
21	3186570		Regulator, Pressure		Appelez-nous	-
22	3192492		Burner Box		Appelez-nous	-
27	WP3177991		Screw (3)   (Replaces: 3177991)			Immediately	$ 6.47
27	8053420		Module Spark Reignition		Appelez-nous	-
	LIT3193071		Use & Care Guide		Appelez-nous	-
	4455116		Hardware, Mounting		Appelez-nous	-
	4173634		Bushing, Cord				$ 5.83
	W10392007		Power Cord   (Replaces: 3192231)				$ 96.25
	LIT3191638		Safer Cooking Tips		Appelez-nous	-
	LIT3192097		Wiring Diagram		Appelez-nous	-
	LIT3191827		Installation Instructions		Appelez-nous	-
	3192700		Harness, Wire Ignitor 15``		Appelez-nous	-
	3192229		Harness, Ignitor 15``		Appelez-nous	-
	3191931		Seal, Foam 15``		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
