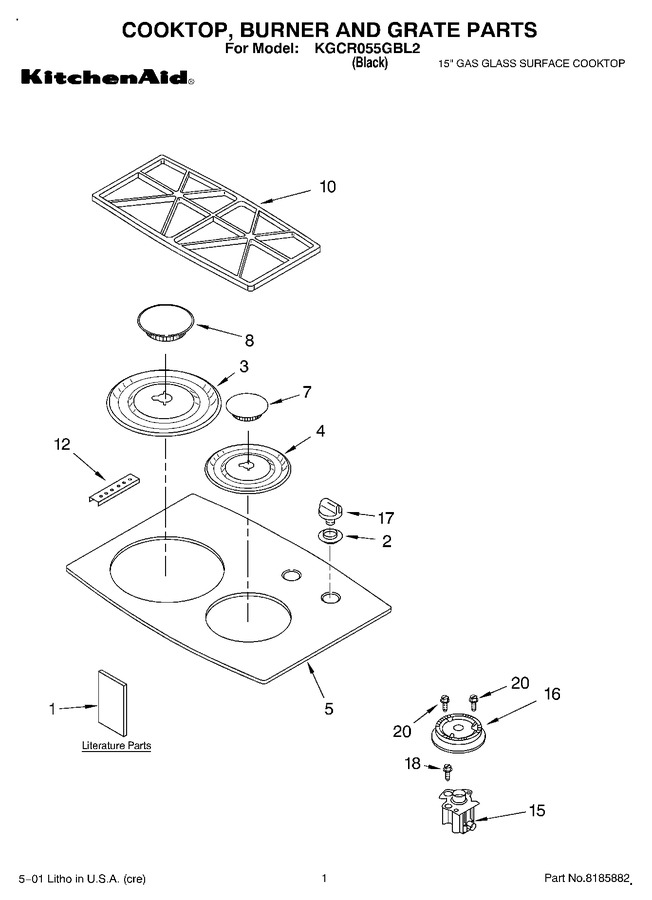

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT4455834		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT3193071		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT3192097		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
2	W10854242		Grommet, Glass Cooktop (4)   (Replaces: 3180079)			Immediately	$ 7.58
3	3191302		Bezel, Cooktop (large)		Appelez-nous	-
4	3191307		Bezel, Cooktop (small)		Appelez-nous	-
5	3192373		Cooktop, Glass		Appelez-nous	-
7	3191728		Cap, Burner (small)				$ 33.65
8	3191731		Cap, Burner (large)				$ 35.27
10	3191485		Grate, Burner				$ 96.94
12	8186533		Bracket, Mounting   (Replaces: 3183401)				$ 79.60
12	3179557		Screw		Appelez-nous	-
12	4167077		Nut		Appelez-nous	-
15	9754191		Holder, Orifice (includes Items 13 & 14) (rear)		Appelez-nous	-
15	9754185		Holder, Orifice (includes Items 13 & 14) (front)		Appelez-nous	-
16	WP4455980		Head, Burner (rear)   (Replaces: 8273215)				$ 55.89
16	8273216		Head, Burner (front)		Appelez-nous	-
17	WP3191922		Knob, Control (2)   (Replaces: 3191922)			Immediately	$ 6.47
18	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
20	WP3368921		Screw   (Replaces: 3368921)			Immediately	$ 6.42
