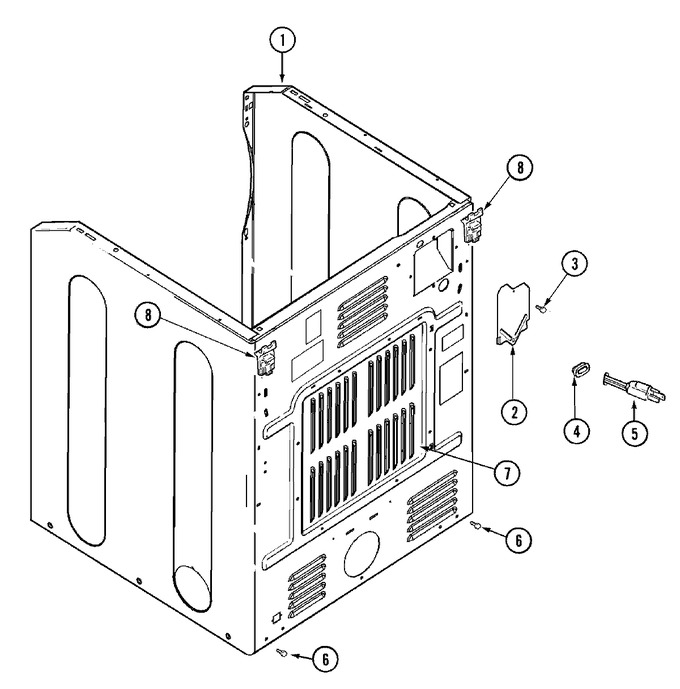

01 - Cabinet-front
02 - Cabinet-rear
03 - Control Panel
04 - Door
05 - Gas Valve
06 - Motor Drive
07 - Tumbler
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 22003639 | Cabinet Assy. (wht As Pk) | 38 |
|
- | ||||
| 1 | 33002256 | Seal, Cabinet (export) | 10 |
|
- | ||||
| 1 | 33002255 | Seal, Cabinet (export) | 10 |
|
- | ||||
| 1 | 22003582 | Cabinet, Assy. (wht-as Pk) | 10 |
|
- | ||||
| 2 | 33001795 | Cover, Terminal Block | 10 |
|
- | ||||
| 3 | 33002190 | Screw (no.10-3/8``) | 10 |
|
- | ||||
| 6 | 33002190 | Screw (no.10-3/8``) | 10 |
|
- | ||||
| 7 | 22002092 | Panel, Access | 10 |
|
- | ||||
| 7 | WP489128 | Screw (Replaces: 22001996) | 10 |
|
$ 9.79 | ||||
| 8 | 22003367 | Hinge, Plastic | 10 |
|
- | ||||
| 8 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | Y310376 | Clip, Wire Harness |
|
- |
