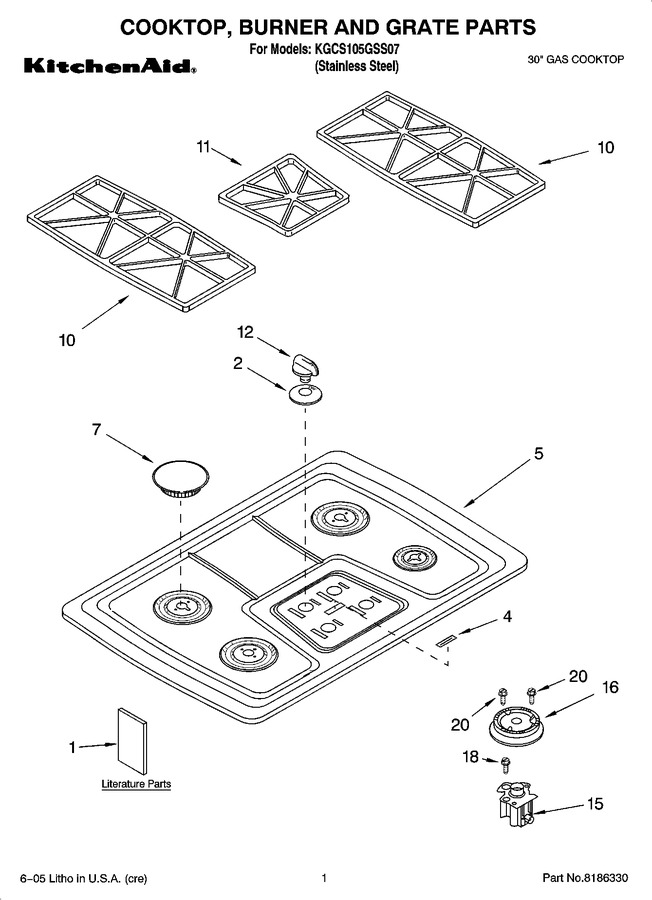

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4455834		Installation Instructions		Appelez-nous	-
1	4456479		Use & Care Guide		Appelez-nous	-
1	3192098		Wiring Diagram		Appelez-nous	-
1	3191638		Safe Cooking Tips		Appelez-nous	-
1	9759440		L.p. Conversion Instructions		Appelez-nous	-
2	WP4457192		Collar, Knob   (Replaces: 4457192)				$ 52.13
4	3191514		Nameplate				$ 53.29
5	8285730		Cooktop		Appelez-nous	-
7	3192489		Cap (black, 14k)		Appelez-nous	-
7	WP8286155CB		Cap (black, 12k)   (Replaces: 8286155BL)				$ 104.70
7	WP8286154CB		Cap (black, 9k)   (Replaces: 8286154BL)				$ 77.94
7	WP8286153CB		Cap (black, 6k)   (Replaces: 8286153BL)				$ 61.97
10	WP9759505		Grate, Burner   (Replaces: 9759505)				$ 189.84
11	9759509		Grate, Filler				$ 76.71
12	WP3191922		Knob, Control (4)   (Replaces: 3191922)			Immediately	$ 6.47
15	WPW10128451		Holder, Orifice (rapid)   (Replaces: 8286180)				$ 99.80
15	WPW10128450		Holder, Orifice (semi Rapid)   (Replaces: 8286178)				$ 106.59
15	WPW10128448		Holder, Orifice (auxi)   (Replaces: 8286179)			Immediately	$ 100.54
15	WPW10155786		Holder, Orifice (turbi)   (Replaces: 4456622)			Immediately	$ 102.16
16	4455849		Head, Burner (turbi)				$ 47.68
16	WPW10406797		Head, Burner (12k)   (Replaces: 8286182)				$ 79.64
16	WPW10406283		Head, Burner (9k)   (Replaces: 8286184)				$ 66.87
16	WPW10406243		Head, Burner (6k)   (Replaces: 8286181)			Immediately	$ 33.50
18	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
20	WP3368921		Screw   (Replaces: 3368921)			Immediately	$ 6.42
