01 - Cooktop, Burner And Grate Parts

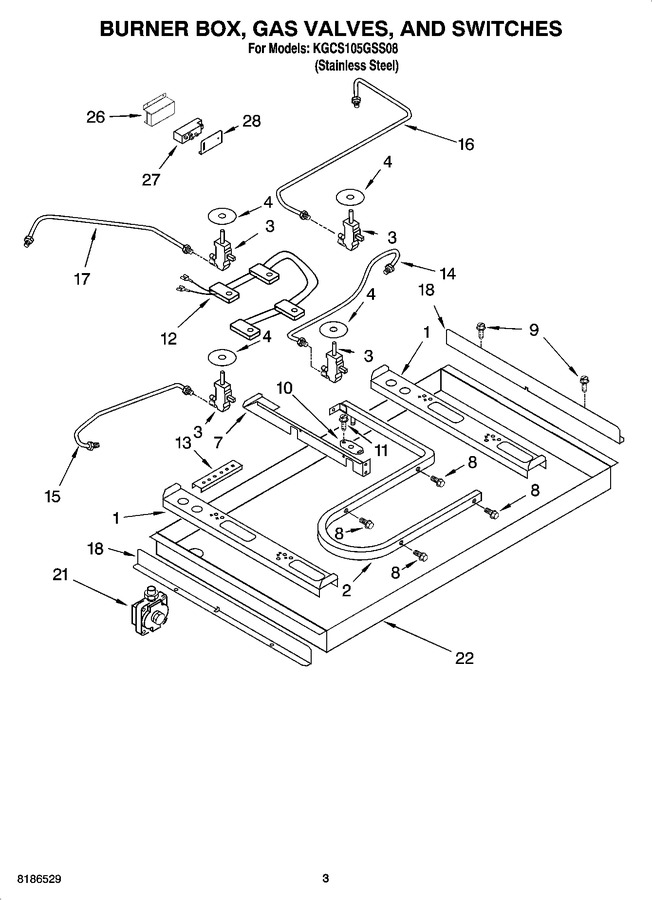

02 - Burner Box, Gas Valves, And Switches, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8285796 | Rail, Burner |
|
- | |||||
| 2 | 8286069 | Pipe, Manifold |
|
$ 295.39 | |||||
| 3 | 4456818 | Valve, Gas Burner (turbi (bronze)) |
|
$ 231.30 | |||||
| 3 | 8286560 | Valve, Gas Burner (rapid (yellow)) |
|
$ 123.39 | |||||
| 3 | WP4456817 | Valve, Gas Burner (large (black)) (Replaces: 4456817) |
|
$ 286.38 | |||||
| 3 | 8286559 | Valve, Gas Burner (auxi (white)) |
|
$ 123.31 | |||||
| 4 | WP3188425 | Seal, Shaft (Replaces: 3191387) |
|
$ 82.61 | |||||
| 7 | 8285791 | Rail, Center |
|
- | |||||
| 8 | 8523704 | Bolt, Gas Valve |
|
- | |||||
| 9 | WP12990527 | Screw (Replaces: 3400843) |
|
Immediately | $ 7.15 | ||||
| 10 | 3192491 | Bracket, Mainfold |
|
- | |||||
| 11 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 12 | WP4456905 | Harness & Switches (Replaces: 4456905) |
|
Immediately | $ 176.83 | ||||
| 13 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.47 | |||||
| 13 | 8186533 | Bracket, Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 14 | 8285793 | Tubing, Gas Burner (rf) |
|
$ 162.29 | |||||
| 15 | 8285794 | Tubing, Gas Burner (lf) |
|
$ 179.75 | |||||
| 16 | 8285792 | Tubing, Gas Burner (rr) |
|
$ 160.65 | |||||
| 17 | 8285795 | Tubing, Gas Burner (lr) |
|
$ 158.02 | |||||
| 18 | 3191462 | Shield, Heat (2) |
|
- | |||||
| 21 | 4454571 | Regulator, Pressure |
|
$ 108.68 | |||||
| 22 | 9760837 | Burner Box |
|
- | |||||
| 26 | 8285788 | Shield, Heat |
|
- | |||||
| 27 | WPW10110491 | Module, Spark (Replaces: 8522423) |
|
Immediately | $ 276.35 | ||||
| 28 | 4455837 | Bracket, Spark Module |
|
$ 70.10 | |||||
| 4173634 | Bushing |
|
$ 5.83 | ||||||
| N/A | Wiring Harness Parts |
|
- | ||||||
| 9759145 | Bracket, Mounting |
|
$ 26.15 | ||||||
| WP3177991 | Screw (Replaces: 3177991) |
|
Immediately | $ 6.47 | |||||
| W10392007 | Cord, Power (Replaces: 3192231) |
|
$ 96.25 | ||||||
| 4456627 | Harness, Ignitor 28`` |
|
$ 189.13 | ||||||
| 4456626 | Harness, Ignitor 15`` (2) |
|
$ 66.34 | ||||||
| WP3192741 | Conversion Kit Natural Gas To L.p. (Replaces: 3192741) |
|
$ 41.81 | ||||||
| 4455918 | Hardware, Mounting |
|
- | ||||||
| 8537055 | S.steel Cleaner |
|
- | ||||||
| 9760045 | Foam, Blower |
|
$ 236.42 |
