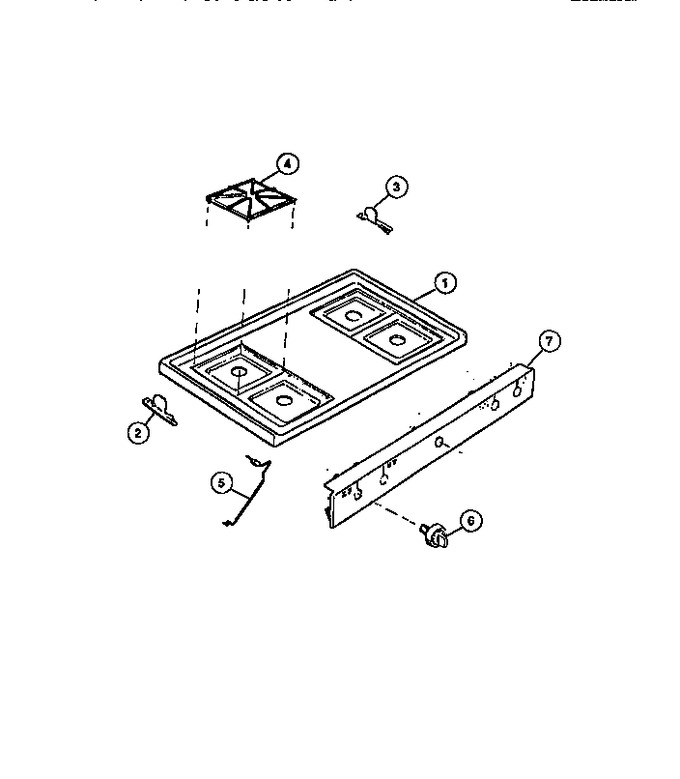

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131455 | Main Top, Almond |
|
- | |||||
| 2 | 3011558 | Bracket, Main Top Hinge Lh |
|
- | |||||
| 3 | 3011559 | Bracket, Main Top Hinge Rh |
|
- | |||||
| 4 | 3018432 | Grate (4) |
|
- | |||||
| 5 | 5303209316 | Rod, Main Top |
|
- | |||||
| 6 | 5303210280 | Knob, Top Valve (4) |
|
- | |||||
| 7 | 5303210895 | Panel, Manifold |
|
- |
