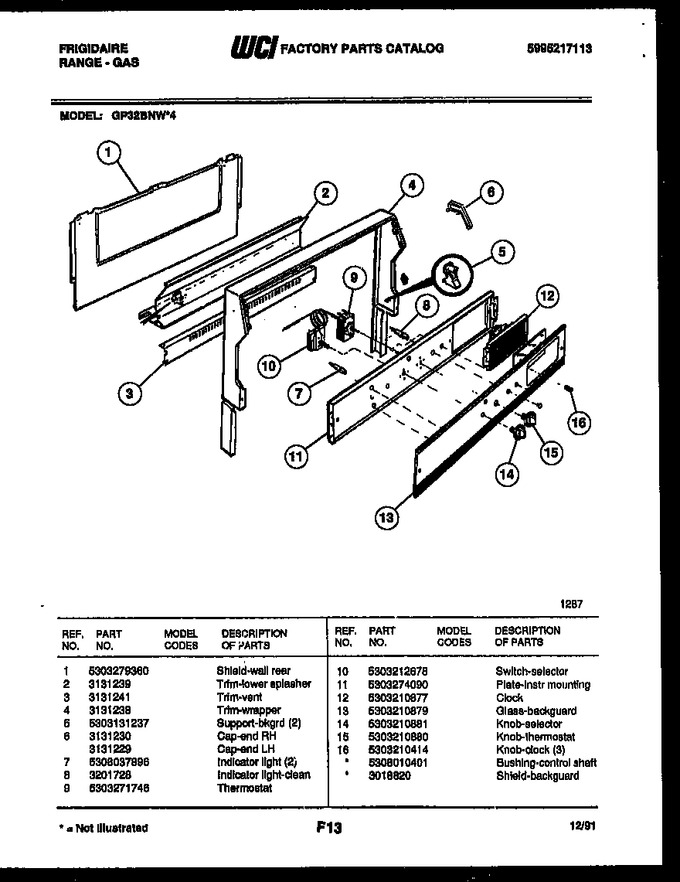

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303279360 | Shield-wall Rear |
|
- | |||||
| 2 | 3131239 | Trim-lower Splasher |
|
- | |||||
| 3 | 3131241 | Trim-vent |
|
- | |||||
| 4 | 3131238 | Trim, Wrapper |
|
- | |||||
| 5 | 5303131237 | Support-bkgrd (2) |
|
- | |||||
| 6 | 3131230 | Cap, End (rh) |
|
- | |||||
| 7 | 5308037896 | Indicator Light |
|
$ 39.75 | |||||
| 8 | 3201728 | Indicator Light-clean |
|
- | |||||
| 9 | 5303271746 | Thermostat |
|
$ 414.28 | |||||
| 10 | 5303212678 | Switch Selector |
|
- | |||||
| 11 | 5303274090 | Plate-instr Mounting |
|
- | |||||
| 12 | 5303210877 | Clock |
|
- | |||||
| 13 | 5303210879 | Glass-backguard |
|
- | |||||
| 14 | 5303210881 | Knob-selector |
|
- | |||||
| 15 | 5303210880 | Knob-thermostat |
|
- | |||||
| 16 | 5303210414 | Knob - Clock (3) |
|
- | |||||
| *57244 | 5308010401 | Bushing-control Shaft |
|
- | |||||
| *57244 | 3018820 | Shield-backguard |
|
- | |||||
| 6A | 3131229 | Cap, End (lh) |
|
- |
