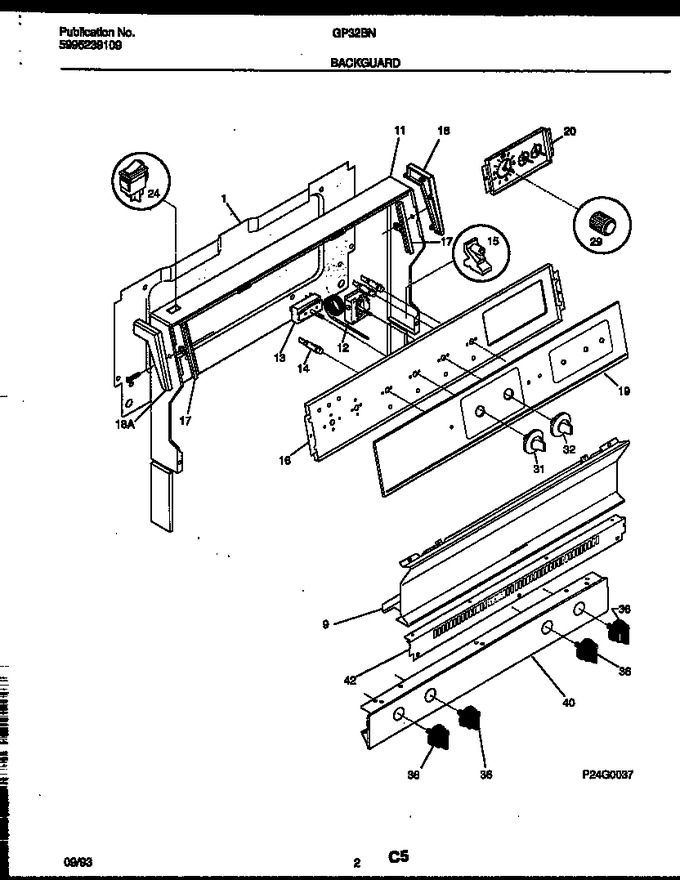

02 - Backguard
03 - Burner, Manifold And Gas Control
04 - Body Parts
05 - Body Parts
06 - Cooktop And Drawer Parts
07 - Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316028703 | Shield-backguard, Rear Wall |
|
- | |||||
| 9 | 3131239 | Trim Splasher |
|
- | |||||
| 11 | 3131238 | Trim, Wrapper |
|
- | |||||
| 12 | 5303271746 | Thermostat-oven |
|
$ 414.28 | |||||
| 13 | 5303212678 | Switch Selector |
|
- | |||||
| 14 | 5308037896 | Indicator Light |
|
$ 39.75 | |||||
| 15 | 5303131237 | Support-backguard,(2) |
|
- | |||||
| 16 | 316042601 | Plate,instrument Mtg |
|
- | |||||
| 17 | 3131240 | Trim-glass Retainer, (2) |
|
- | |||||
| 18 | 3131230 | End Cap, Rh |
|
- | |||||
| 19 | 5303210879 | Panel-control, Glass |
|
- | |||||
| 20 | 5303210877 | Clock/timer, Analog 3 Stem |
|
- | |||||
| 29 | 5303210414 | Knob, Clock |
|
- | |||||
| 31 | 5303210881 | Knob-selector |
|
- | |||||
| 32 | 5303210880 | Knob-thermostat |
|
- | |||||
| 36 | 5303210280 | Knob, Top Valve (4) |
|
- | |||||
| 40 | 5303210895 | Panel, Manifold |
|
- | |||||
| 42 | 3131241 | Trim-vent |
|
- | |||||
| *85959 | 5303272555 | Clip-backguard |
|
- | |||||
| *85959 | 5308010401 | Bushing-control Panel Glass |
|
- | |||||
| 14A | 3201728 | Light/lamp, Indicator, Red, Lock, 125, Lock, (non-illustrated) |
|
- | |||||
| 18A | 3131229 | End Cap, Lh |
|
- |
