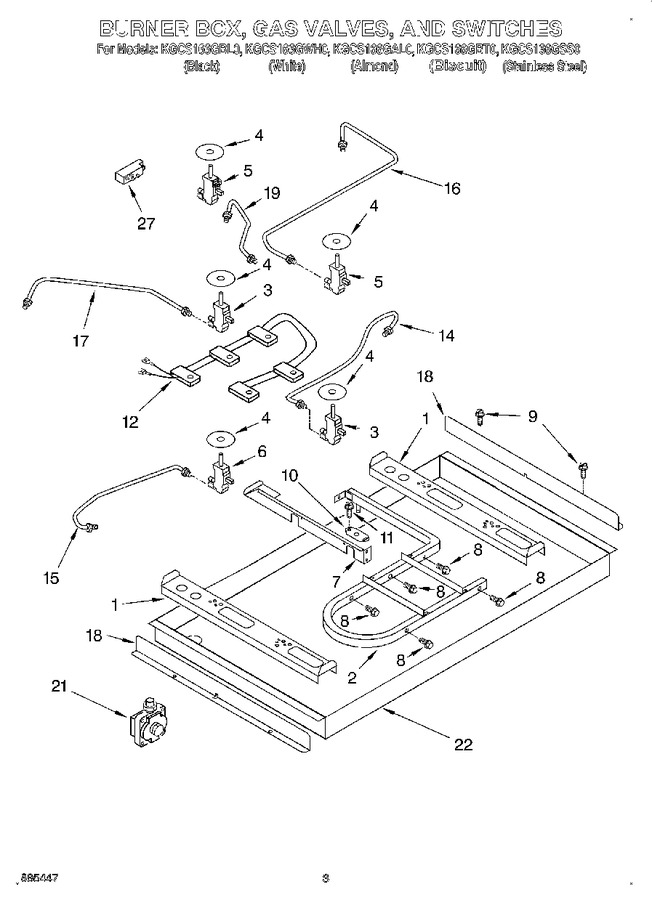

SELECT A DIAGRAM

01 - Section


02 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10203756		Rail, Burner   (Replaces: 3191557)		Appelez-nous	-
2	3191317		Pipe, Manifold		Appelez-nous	-
3	3191292		Valve, Gas Burner Burner, (rf) (lr)				$ 120.40
4	WP3188425		Seal, Shaft   (Replaces: 3191387)				$ 82.61
5	3191293		Valve, Gas Burner (rr & Cr)				$ 122.26
6	3192157		Valve, Gas Burner (lf)		Appelez-nous	-
7	3192819		Rail, Center		Appelez-nous	-
8	307630		Bolt, Gas Valve		Appelez-nous	-
9	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 6.47
10	3192491		Bracket, Mainfold		Appelez-nous	-
11	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.47
12	3191336		Harness & Switches		Appelez-nous	-
14	3191324		Tubing, Gas Burner (rf)				$ 123.70
15	3191326		Tubing, Gas Burner (lf)		Appelez-nous	-
16	3191325		Tubing, Gas Burner (rr)		Appelez-nous	-
17	3191327		Tubing, Gas Burner (lr)		Appelez-nous	-
18	3191462		Shield, Heat (2)		Appelez-nous	-
19	3191332		Tubing, Gas Burner (cr)		Appelez-nous	-
21	3177120		Regulator, Pressure		Appelez-nous	-
22	3192498		Burner Box		Appelez-nous	-
27	WPW10110486		Module Spark   (Replaces: 3190700)				$ 285.33
	LIT3191828		Use & Care Guide		Appelez-nous	-
	LIT3192099		Wiring Diagram		Appelez-nous	-
	3179557		Screw		Appelez-nous	-
	4173634		Bushing				$ 5.83
	W10392007		Power Cord   (Replaces: 3192231)				$ 96.25
	LIT3192260		Lp Conversion Instructions		Appelez-nous	-
	LIT3191638		Safer Cooking Tips		Appelez-nous	-
	LIT3191827		Installation Instructions		Appelez-nous	-
	3192230		Harness, Ignitor 28`` (2)		Appelez-nous	-
	3191417		Wire, Ground		Appelez-nous	-
	3192229		Harness, Ignitor 15`` (2)		Appelez-nous	-
	3192304		Conversion Kit Natural Gas To L.p.		Appelez-nous	-
	3188310		Hardware, Mounting		Appelez-nous	-
	4167077		Tinnerman Nut		Appelez-nous	-
	8186533		Bracket, Mounting   (Replaces: 3183401)				$ 79.60

    View Diagram in Separate Window       Print Part List
