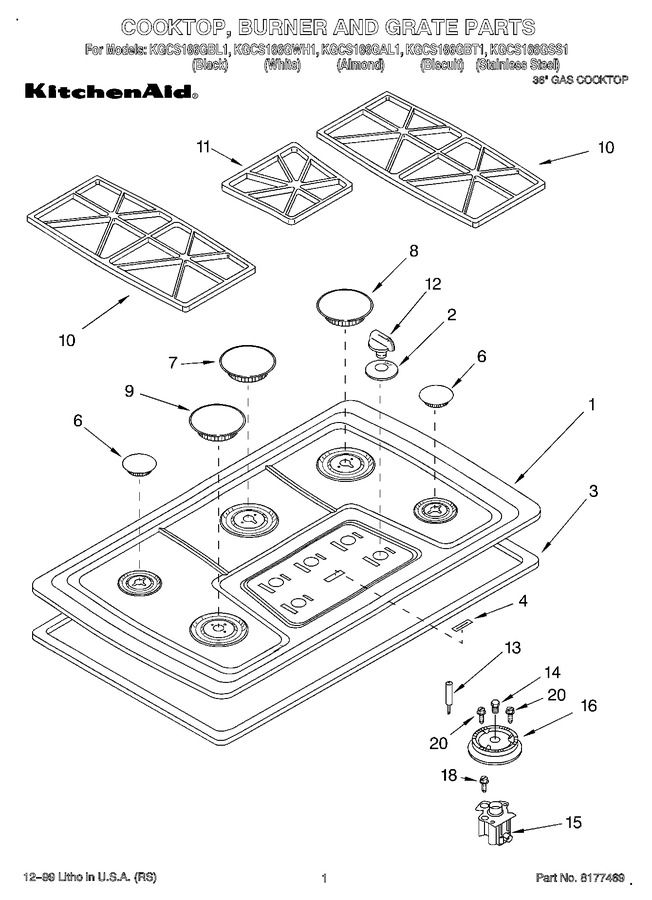

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3191255 | Cooktop (black) |
|
- | |||||
| 1 | 3191257 | Cooktop (almond) |
|
- | |||||
| 1 | 3191256 | Cooktop (white) |
|
- | |||||
| 1 | 3191295 | Cooktop (biscuit) |
|
- | |||||
| 1 | 3191258 | Cooktop (stainless Steel) |
|
- | |||||
| 2 | 3192166 | Collar, Knob (almond) |
|
- | |||||
| 2 | 3192165 | Collar, Knob (white) |
|
- | |||||
| 2 | WP4457192 | Collar, Knob (black) (Replaces: 3192164) |
|
$ 52.13 | |||||
| 2 | 3192167 | Collar, Knob (biscuit) |
|
- | |||||
| 3 | 3193091 | Seal, Foam |
|
- | |||||
| 4 | 3191517 | Nameplate (almond) |
|
- | |||||
| 4 | 3191514 | Nameplate (black) |
|
$ 53.29 | |||||
| 4 | 3191516 | Nameplate (white) |
|
- | |||||
| 4 | 3191920 | Nameplate (biscuit) |
|
- | |||||
| 6 | 3191728 | Cap, (rf) (lr) (black) |
|
$ 33.65 | |||||
| 6 | 3191730 | Cap, (rf) (lr) (biscuit) |
|
- | |||||
| 6 | 3191729 | Cap, (rf) (lr) (white) |
|
- | |||||
| 6 | 3192486 | Cap, (rf) (lr) (use W/stainless Steel Model) |
|
$ 33.24 | |||||
| 7 | 3191732 | Cap, (cr) (white) |
|
- | |||||
| 7 | 3192487 | Cap, (cr) (use W/stainless Steel Model) |
|
$ 34.52 | |||||
| 7 | 3191733 | Cap, (cr) (biscuit) |
|
- | |||||
| 7 | 3191731 | Cap, (cr) (black) |
|
$ 35.27 | |||||
| 8 | 3192488 | Cap, (rr) (use W/stainless Steel Model) |
|
$ 40.03 | |||||
| 8 | 3191735 | Cap, (rr) (white) |
|
$ 43.51 | |||||
| 8 | 3191734 | Cap, (rr) (black) |
|
$ 41.09 | |||||
| 8 | 3191736 | Cap, (rr) (biscuit) |
|
- | |||||
| 9 | 3191739 | Cap, (lf) (biscuit) |
|
- | |||||
| 9 | 3191738 | Cap, (lf) (white) |
|
- | |||||
| 9 | 3191737 | Cap, (lf) (black) |
|
$ 44.65 | |||||
| 9 | 3192489 | Cap, (lf) (use W/stainless Steel Model) |
|
- | |||||
| 10 | 3191485 | Grate, Burner (black) |
|
$ 96.94 | |||||
| 10 | 3191487 | Grate, Burner (biscuit) |
|
- | |||||
| 10 | WP9759505 | Grate, Burner (use W/stainless Steel Model) (Replaces: 3192485) |
|
$ 189.84 | |||||
| 10 | 3191486 | Grate, Burner (white) |
|
$ 99.21 | |||||
| 11 | 3191281 | Grate, Filler (white) |
|
- | |||||
| 11 | 3191280 | Grate, Filler (black) |
|
- | |||||
| 11 | 3191282 | Grate, Filler (biscuit) |
|
- | |||||
| 11 | 3192483 | Grate, Filler (use W/stainless Steel Model) |
|
- | |||||
| 12 | 3191925 | Knob, Control (4) (biscuit) |
|
$ 12.21 | |||||
| 12 | 3191923 | Knob, Control (4) (white) |
|
$ 5.84 | |||||
| 12 | WP3191922 | Knob, Control (4) (black) (Replaces: 3191922) |
|
Immediately | $ 6.47 | ||||
| 12 | 3191924 | Knob, Control (4) (almond) |
|
- | |||||
| 13 | WP9754215 | Ignitor (Replaces: 9754215) |
|
Immediately | $ 47.11 | ||||
| 14 | WP3192523 | Orifice (center) (Replaces: 3192523) |
|
$ 80.19 | |||||
| 14 | 3192525 | Orifice (lf) |
|
$ 38.58 | |||||
| 14 | WP9753930 | Orifice (rr) (Replaces: 3192524) |
|
$ 80.19 | |||||
| 14 | 3192528 | Orifice (rf - Lr) |
|
- | |||||
| 15 | 9754186 | Holder, Orifice (center) |
|
- | |||||
| 15 | 9754182 | Holder, Orifice (rf - Lr) |
|
- | |||||
| 15 | 9754188 | Holder, Orifice (lf) |
|
$ 48.21 | |||||
| 15 | 9754187 | Holder, Orifice (rr) |
|
- | |||||
| 16 | WP4455980 | Head, Burner (center) (Replaces: 8273215) |
|
$ 55.89 | |||||
| 16 | 8273216 | Head, Burner (rf - Lr) |
|
- | |||||
| 16 | 9754181 | Head, Burner (lf) |
|
- | |||||
| 16 | WP4455981 | Head, Burner (rr) (Replaces: 8273214) |
|
Immediately | $ 78.77 | ||||
| 18 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 20 | WP3368921 | Screw (Replaces: 3368921) |
|
Immediately | $ 6.42 |
