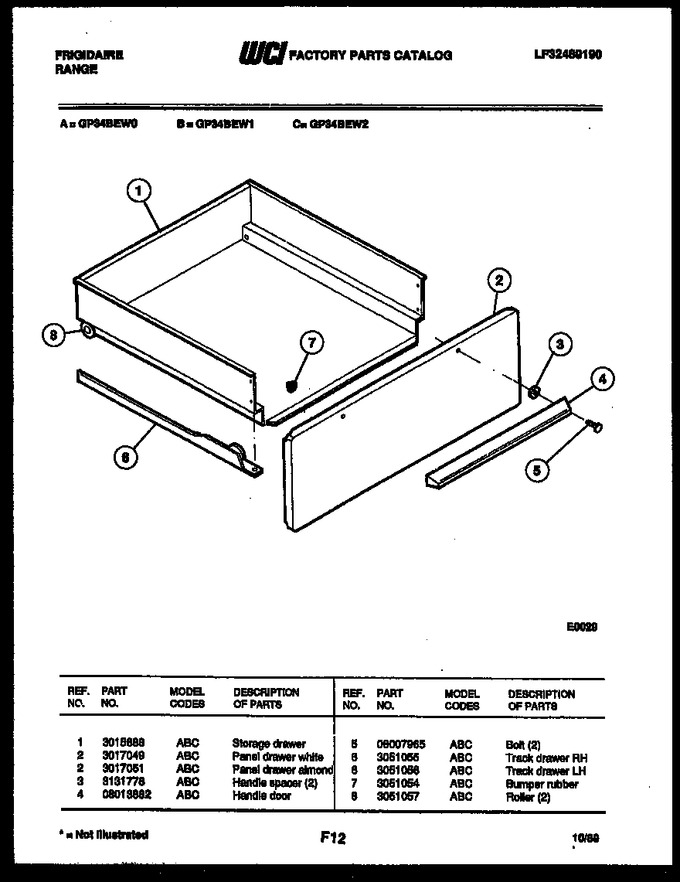

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3015688 | Storage Drawer |
|
- | |||||
| 2 | 3017051 | Panel Drawer Almond |
|
- | |||||
| 3 | 3131778 | Handle Spacer (2) |
|
- | |||||
| 4 | 08013882 | Handle Door |
|
- | |||||
| 5 | 08007965 | Bolt (2) |
|
- | |||||
| 6 | 3051056 | Track Drawer Lh |
|
- | |||||
| 6 | 3051055 | Track Drawer Rh |
|
- | |||||
| 7 | 3051054 | Bumper Rubber |
|
- | |||||
| 8 | 3051057 | Roller (2) |
|
- |
