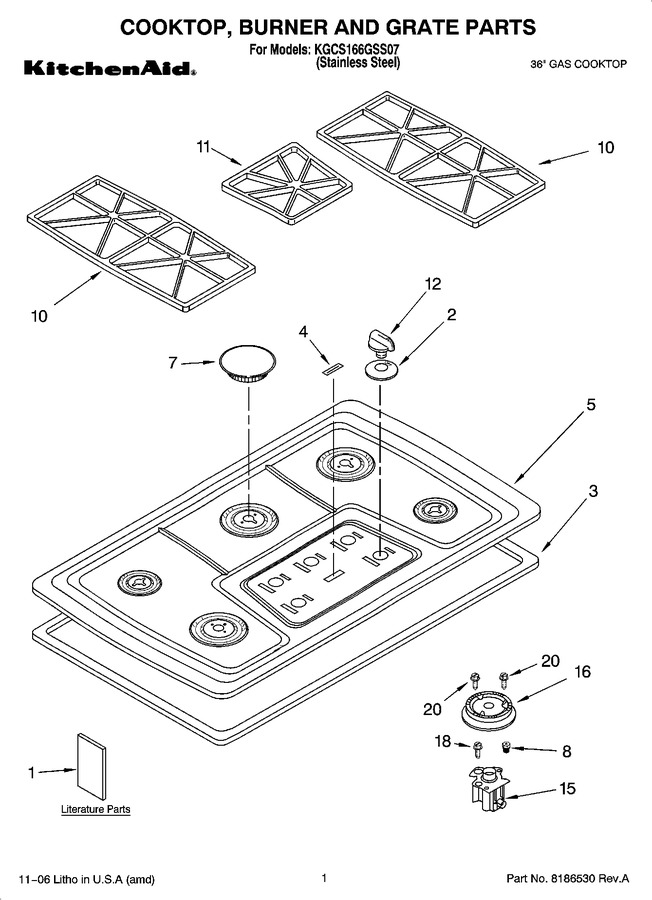

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4455834 | Installation Instructions |
|
- | |||||
| 1 | 8286640 | Use & Care Guide |
|
- | |||||
| 1 | 3192099 | Wiring Diagram |
|
- | |||||
| 1 | 3191638 | Safe Cooking Tips |
|
- | |||||
| 1 | 9759133 | Safer Cooking Tips |
|
- | |||||
| 1 | 9759440 | L.p. Conversion Instructions |
|
- | |||||
| 2 | WP4457192 | Collar, Knob (Replaces: 4457192) |
|
$ 52.13 | |||||
| 3 | 3193091 | Seal, Foam |
|
- | |||||
| 4 | 3191514 | Nameplate |
|
$ 53.29 | |||||
| 5 | 8285735 | Cooktop |
|
- | |||||
| 7 | WP8286155CB | Cap (12k (blk) Rr) (Replaces: 8286155CB) |
|
$ 104.70 | |||||
| 7 | 3192489 | Cap (14k (blk) Lf) |
|
- | |||||
| 7 | WP8286154CB | Cap (9k (blk) Ctr) (Replaces: 8286154CB) |
|
$ 77.94 | |||||
| 7 | WP8286153CB | Cap (6k (blk) Lr, Rf) (Replaces: 8286153CB) |
|
$ 61.97 | |||||
| 8 | 8286551 | Orifice (rapid 12k Rr) |
|
$ 89.96 | |||||
| 8 | WP3192529 | Orifice (auxi (2) 6k Rf, Lr) (Replaces: 3192529) |
|
$ 86.35 | |||||
| 8 | 3192525 | Orifice (turbi 14k Lf) |
|
$ 38.58 | |||||
| 8 | WP3192523 | Orifice (semi Rapid 9k Ctr) (Replaces: 3192523) |
|
$ 80.19 | |||||
| 10 | WP9759505 | Grate, Burner (Replaces: 9759505) |
|
$ 189.84 | |||||
| 11 | 9759513 | Grate, Filler |
|
$ 83.91 | |||||
| 12 | WP3191922 | Knob, Control (4) (Replaces: 3191922) |
|
Immediately | $ 6.47 | ||||
| 15 | WPW10128448 | Holder, Orifice (auxi (2) Lr, Rf) (Replaces: 8286179) |
|
Immediately | $ 100.54 | ||||
| 15 | WPW10155786 | Holder, Orifice (turbi Lf) (Replaces: 4456622) |
|
Immediately | $ 102.16 | ||||
| 15 | WPW10128451 | Holder, Orifice (rapid Rr) (Replaces: 8286180) |
|
$ 99.80 | |||||
| 15 | WPW10128450 | Holder, Orifice (semi Rapid Ctr) (Replaces: 8286178) |
|
$ 106.59 | |||||
| 16 | 4455849 | Head, Burner (turbi 14k Lf) |
|
$ 47.68 | |||||
| 16 | WPW10406797 | Head, Burner (12k Rr) (Replaces: 8286182) |
|
$ 79.64 | |||||
| 16 | WPW10406283 | Head, Burner (9k Ctr) (Replaces: 8286184) |
|
$ 66.87 | |||||
| 16 | WPW10406243 | Head, Burner (6k (2) Lr, Rf) (Replaces: 8286181) |
|
Immediately | $ 33.50 | ||||
| 18 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 20 | WP3368921 | Screw (Replaces: 3368921) |
|
Immediately | $ 6.42 |
