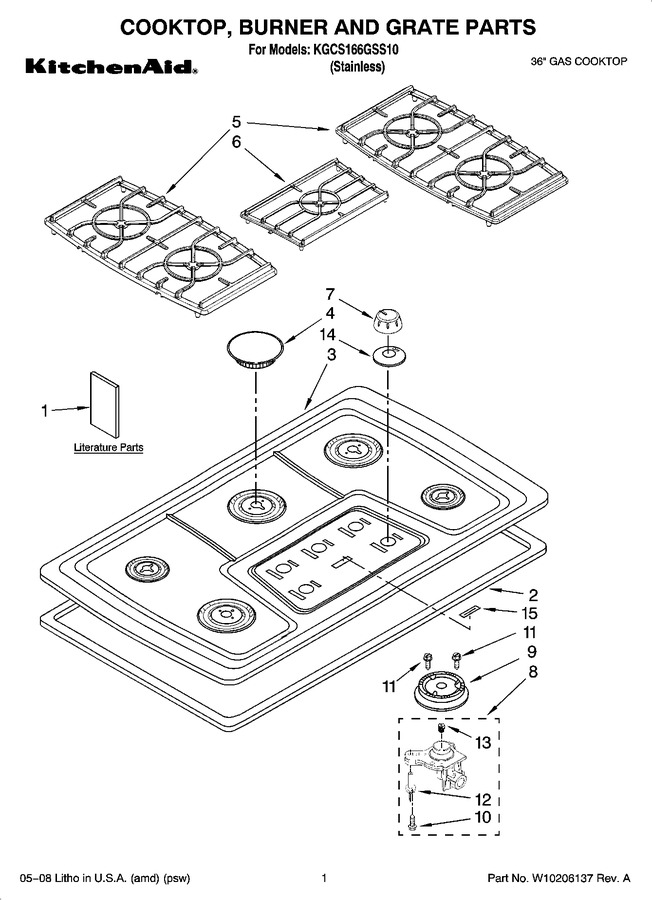

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8304571 | Undercounter Installation |
|
- | |||||
| 1 | W10162169 | Use & Care Guide |
|
- | |||||
| 1 | 9762761 | Safe Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safe Cooking Tips (french) |
|
- | |||||
| 1 | 4455834 | Installation Instructions |
|
- | |||||
| 2 | 9760279 | Seal, Foam |
|
$ 51.94 | |||||
| 3 | W10140184 | Cooktop |
|
- | |||||
| 4 | 3192489 | Burner Caps (lf) |
|
- | |||||
| 4 | WP8286153CB | Burner Caps (lr & Rf) (Replaces: 8286153CB) |
|
$ 61.97 | |||||
| 4 | WP8286154CB | Burner Caps (ctr) (Replaces: 8286154CB) |
|
$ 77.94 | |||||
| 4 | WP8286155CB | Burner Caps (rr) (Replaces: 8286155CB) |
|
$ 104.70 | |||||
| 5 | WP9759505 | Grate, Burner (Replaces: 9759505) |
|
$ 189.84 | |||||
| 6 | 9759513 | Grate, Center |
|
$ 83.91 | |||||
| 7 | WP3191922 | Knob, Control (Replaces: 3191922) |
|
Immediately | $ 6.47 | ||||
| 8 | WPW10128448 | Holder, Orifice (lr & Rf) (Replaces: W10128448) |
|
Immediately | $ 100.54 | ||||
| 8 | WPW10155786 | Holder, Orifice (lf) (Replaces: W10155786) |
|
Immediately | $ 102.16 | ||||
| 8 | WPW10128451 | Holder, Orifice (rr) (Replaces: W10128451) |
|
$ 99.80 | |||||
| 8 | WPW10128450 | Holder, Orifice (ctr) (Replaces: W10128450) |
|
$ 106.59 | |||||
| 9 | WPW10406243 | Head, Burner (lr & Rf) (Replaces: 8286181) |
|
Immediately | $ 33.50 | ||||
| 9 | 4455849 | Head, Burner ((lf)) |
|
$ 47.68 | |||||
| 9 | WPW10406797 | Head, Burner (rr) (Replaces: 8286182) |
|
$ 79.64 | |||||
| 9 | WPW10406283 | Head, Burner (ctr) (Replaces: 8286184) |
|
$ 66.87 | |||||
| 10 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.12 | ||||
| 11 | WP3368921 | Screw (Replaces: 3368921) |
|
Immediately | $ 6.42 | ||||
| 12 | WP9782116 | Electrode (Replaces: 9782116) |
|
Immediately | $ 49.45 | ||||
| 13 | 3192525 | Orifice (lf) |
|
$ 38.58 | |||||
| 13 | WP3192523 | Orifice (ctr) (Replaces: 3192523) |
|
$ 80.19 | |||||
| 13 | WP3192529 | Orifice (lr & Rf) (Replaces: 3192529) |
|
$ 86.35 | |||||
| 13 | 8286551 | Orifice (rr) |
|
$ 89.96 | |||||
| 14 | WP4457192 | Collar, Knob (Replaces: 4457192) |
|
$ 52.13 | |||||
| 15 | 3191514 | Nameplate |
|
$ 53.29 |
