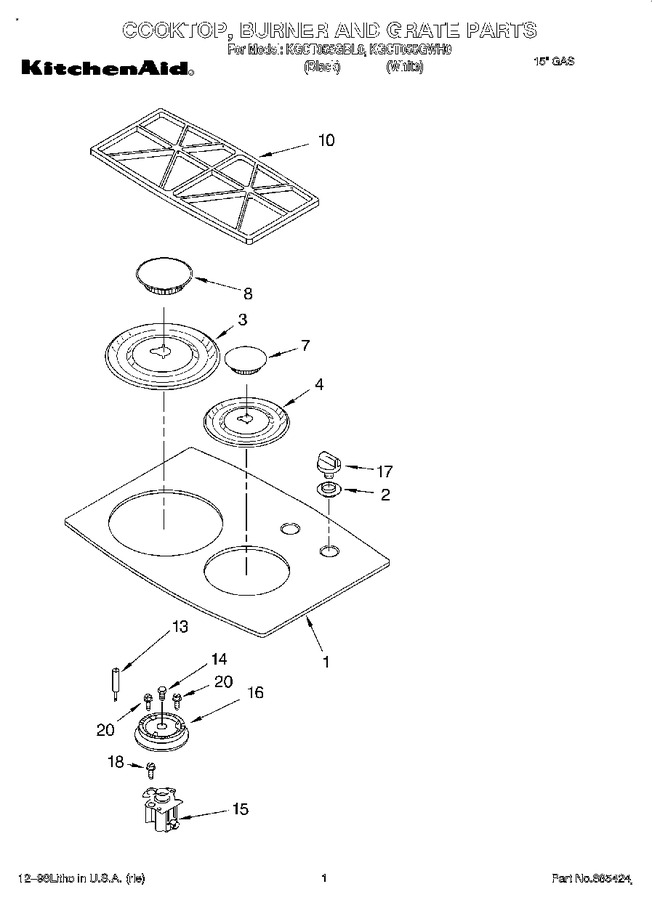

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3192373		Cooktop, Glass (black)		Appelez-nous	-
1	3192374		Cooktop, Glass (white)		Appelez-nous	-
2	WP3180081		Grommet, Glass (white Cooktop (4))   (Replaces: 3180081)				$ 7.40
2	W10854242		Grommet, Glass (black)   (Replaces: 3180079)			Immediately	$ 7.58
3	3191302		Bezel, Cooktop (large) (black)		Appelez-nous	-
3	3191303		Bezel, Cooktop (large) (white)		Appelez-nous	-
4	3191308		Bezel, Cooktop (small) (white)		Appelez-nous	-
4	3191307		Bezel, Cooktop (small) (black)		Appelez-nous	-
7	3191729		Cap, Burner (small) (white)		Appelez-nous	-
7	3191728		Cap, Burner (small) (black)				$ 33.65
8	3191735		Cap, Burner (large) (white)				$ 43.51
8	3191734		Cap, Burner (large) (black)				$ 41.09
10	3191485		Grate, Burner (black)				$ 96.94
10	3191486		Grate, Burner (white)				$ 99.21
13	3192527		Ignitor		Appelez-nous	-
14	3192528		Orifice (front)		Appelez-nous	-
14	WP9753930		Orifice (rear)   (Replaces: 3192524)				$ 80.19
15	3191742		Holder, Orifice (includes Items 13 & 14) (rear)		Appelez-nous	-
15	3191740		Holder, Orifice (includes Items 13 & 14) (front)		Appelez-nous	-
16	9753109		Head, Burner (front)		Appelez-nous	-
16	9753110		Head, Burner (rear)		Appelez-nous	-
17	WP3191922		Knob, Control (2) (black)   (Replaces: 3191922)			Immediately	$ 6.47
17	3191923		Knob, Control (2) (white)				$ 5.84
18	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
20	WP3368921		Screw   (Replaces: 3368921)			Immediately	$ 6.42
