New Model Search:

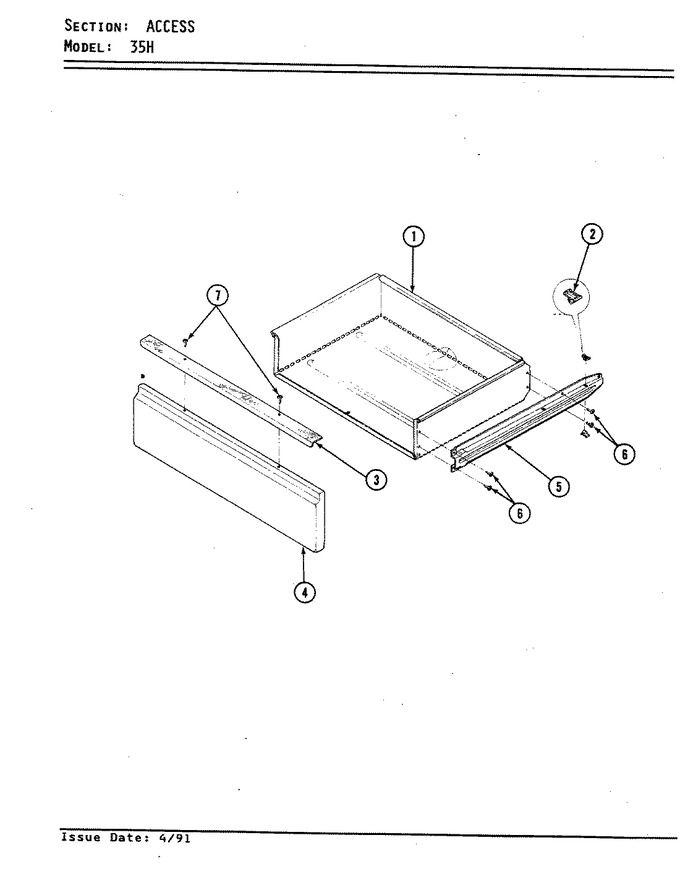

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3802F044-51 | Brace, Drawer | 01 |
|
- | ||||
| 1 | 3801F031-51 | Bracket | 01 |
|
- | ||||
| 1 | 3405F008-80 | Drawer, Service | 01 |
|
- | ||||
| 2 | 8016P009-60 | Glide, Drawer | 01 |
|
- | ||||
| 2 | 8016P004-60 | Glide, Drawer | 01 |
|
- | ||||
| 3 | 2411F001-70 | Handle, Door Black | 01 |
|
- | ||||
| 4 | 2416F006-65 | Panel, Svc Drawer (black) | 01 |
|
- | ||||
| 5 | 3406F026-80 | Runner, Inner | 01 |
|
- | ||||
| 6 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 7 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 01 |
|
Immediately | $ 12.62 |
