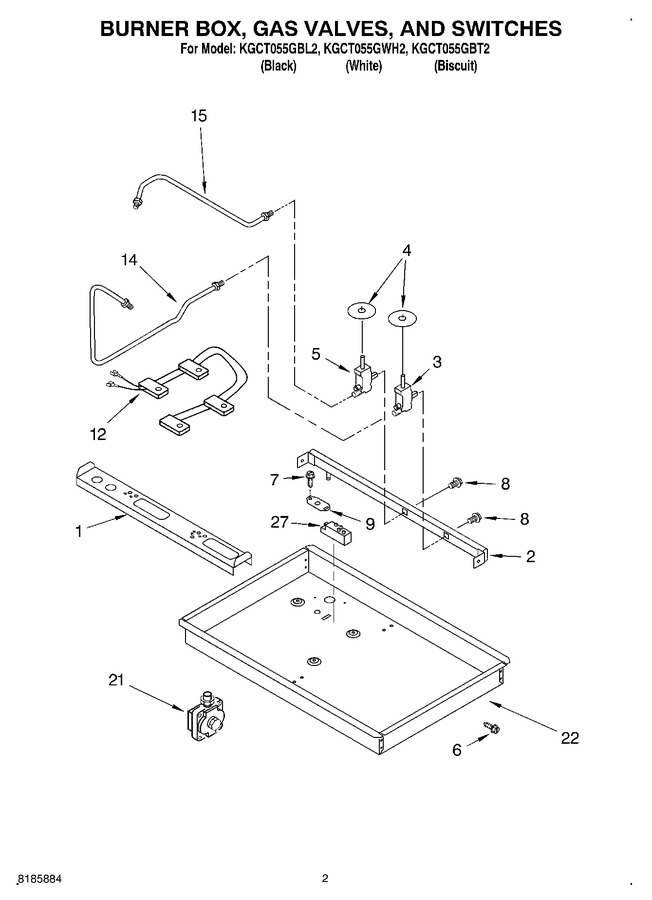

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10203756		Rail, Burner   (Replaces: 3191557)		Appelez-nous	-
2	6610009		Pipe, Manifold		Appelez-nous	-
3	3191292		Valve, Gas Burner Front				$ 120.40
4	WP3188425		Seal, Shaft   (Replaces: 3191387)				$ 82.61
5	3191293		Valve, Gas Burner Rear				$ 122.26
6	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
7	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.47
8	3185829		Bolt (gas Valve)		Appelez-nous	-
9	3192491		Bracket, Support		Appelez-nous	-
12	3191334		Harness & Switches				$ 87.56
14	3192343		Tubing, Gas Burner (front)		Appelez-nous	-
15	3192344		Tubing, Gas Burner (rear)		Appelez-nous	-
21	3177120		Regulator, Pressure		Appelez-nous	-
22	4455812		Burner Box		Appelez-nous	-
27	3192700		Harness, Ignitor 15``		Appelez-nous	-
27	WP3192741		Spud Kit   (Replaces: 3192741)				$ 41.81
27	3188310		Hardware, Mounting		Appelez-nous	-
27	3191931		Seal, Foam 15``		Appelez-nous	-
27	3192229		Harness, Ignitor 15``		Appelez-nous	-
27	WP12990527		Screw (2)   (Replaces: 3400843)			Immediately	$ 7.15
27	8522422		Module Spark Reignition				$ 123.44
27	W10392007		Power Cord   (Replaces: 3192231)				$ 96.25
27	4173634		Bushing, Cord				$ 5.83
27	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 6.47
27	8186533		Bracket, Mounting   (Replaces: 3183401)				$ 79.60
27	4167077		Nut, Tinnerman		Appelez-nous	-
