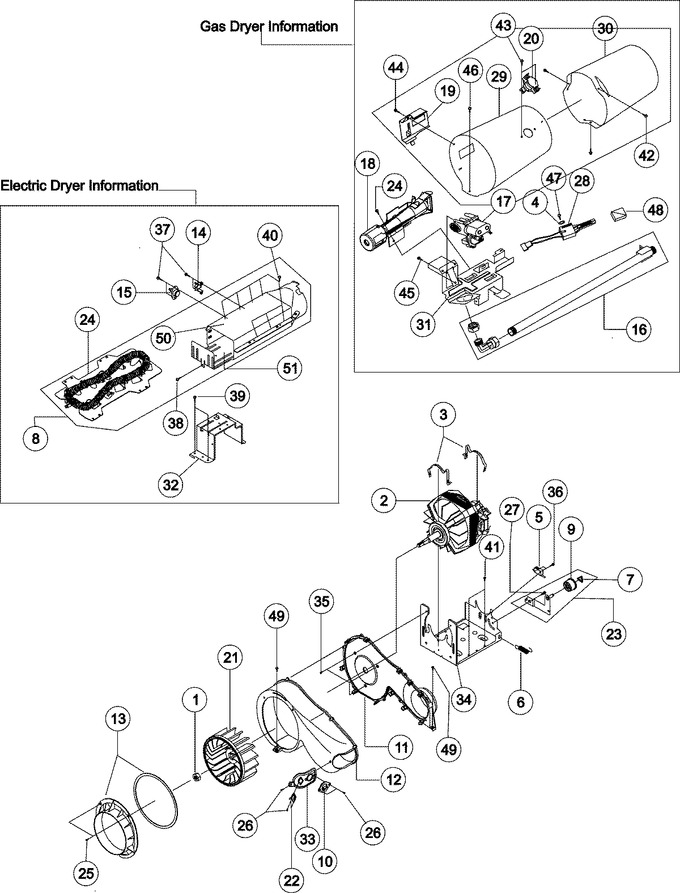

01 - Blower-heater-motor
02 - Control Panel - Cabinet
03 - Drum
04 - Front - Door
05 - Supplemental Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 35001079 | Nut-inch | 10 |
|
$ 11.48 | ||||
| 2 | WP35001080 | Motor-dryer (Replaces: 35001080) | 10 |
|
Immediately | $ 297.59 | |||
| 3 | 35001081 | Spring-plate | 10 |
|
$ 10.14 | ||||
| 4 | 6021-001130 | Nut-circular | 10 |
|
- | ||||
| 5 | 35001082 | Switch-micro | 10 |
|
$ 10.45 | ||||
| 6 | 35001278 | Spring-tension | 16 |
|
$ 26.16 | ||||
| 6 | 35001083 | Spring-tension | 10 |
|
- | ||||
| 7 | 35001084 | Holder-shaft | 10 |
|
$ 5.84 | ||||
| 8 | WPW10222771 | Assy-heater Duct (Replaces: 35001119) | 10 |
|
Immediately | $ 180.05 | |||
| 9 | 35001086 | Assy-roller | 10 |
|
$ 58.24 | ||||
| 10 | 35001191 | Thermistor | 10 |
|
$ 46.43 | ||||
| 11 | 35001088 | Guide-duct Fan | 10 |
|
- | ||||
| 12 | 555555 | Cover-duct Fan (Replaces: 35001089) | 10 |
|
$ 151.94 | ||||
| 13 | DC97-07895A | Assy-duct Connector (Replaces: 35001090) | 10 |
|
$ 56.75 | ||||
| 14 | WP35001193 | Assy-bracket (thermostat) (Replaces: 35001193) | 10 |
|
Immediately | $ 39.33 | |||
| 15 | 35001092 | Thermostat | 10 |
|
$ 55.89 | ||||
| 16 | 35001093 | Assy Pipe | 10 |
|
- | ||||
| 17 | WP33002924 | Conversion Kit (lp To Natural) (Replaces: 306204) | 10 |
|
$ 100.25 | ||||
| 17 | MAL9000AXX | Conversion Kit (natural To Lp) (Replaces: Y306195) | 10 |
|
$ 72.26 | ||||
| 17 | 35001190 | Valve-gas | 10 |
|
$ 266.06 | ||||
| 18 | 35001095 | Tube-burner | 10 |
|
- | ||||
| 19 | WP338906 | Sensor-radiant (Replaces: 35001096) | 10 |
|
Immediately | $ 46.72 | |||
| 20 | 35001192 | Thermostat | 10 |
|
$ 166.89 | ||||
| 21 | 35001097 | Fan - Blower | 10 |
|
- | ||||
| 21 | 35001220 | Fan - Blower | 12 |
|
$ 62.00 | ||||
| 22 | WP35001087 | Thermostat (Replaces: 35001087) | 10 |
|
Immediately | $ 59.90 | |||
| 23 | 35001277 | Bracket-idler | 16 |
|
$ 51.42 | ||||
| 23 | 35001098 | Assy-bracket Idler | 10 |
|
- | ||||
| 24 | 61002031 | Screw-tapping (Replaces: 35001118) | 10 |
|
$ 41.36 | ||||
| 25 | 6002-000213 | Screw-tapping | 10 |
|
Immediately | $ 0.93 | |||
| 26 | 6002-000470 | Screw-tapping | 10 |
|
$ 0.85 | ||||
| 27 | 35001099 | Screw-special | 10 |
|
- | ||||
| 28 | WP33002789 | Heater-ignitor (Replaces: 35001100) | 10 |
|
Immediately | $ 80.85 | |||
| 29 | 35001101 | Duct-cone (f) | 10 |
|
- | ||||
| 29 | 12001224 | Kit, Ctrl. Panel W/knob (wht) | 14 |
|
- | ||||
| 30 | 35001102 | Duct-cone (b) | 10 |
|
- | ||||
| 31 | 35001103 | Bracket-burner | 10 |
|
- | ||||
| 32 | DC61-01224A | Die-heater (Replaces: 35001104) | 10 |
|
$ 62.22 | ||||
| 33 | 35001105 | Bracket-thermistor | 10 |
|
$ 38.82 | ||||
| 34 | 35001106 | Bracket-motor | 10 |
|
- | ||||
| 35 | 555555 | Screw-tapping (Replaces: 6002-000231) | 10 |
|
$ 151.94 | ||||
| 36 | 35001107 | Screw-tapping | 10 |
|
- | ||||
| 37 | 555555 | Screw-tapping (Replaces: 6002-000231) | 10 |
|
$ 151.94 | ||||
| 38 | 555555 | Screw-tapping (Replaces: 6002-000231) | 10 |
|
$ 151.94 | ||||
| 39 | 555555 | Screw-tapping (Replaces: 6002-000231) | 10 |
|
$ 151.94 | ||||
| 40 | 6002-000239 | Screw-tapping | 10 |
|
Immediately | $ 1.66 | |||
| 41 | 555555 | Screw-tapping (Replaces: 6002-000231) | 10 |
|
$ 151.94 | ||||
| 42 | 35001234 | Screw-tapping | 10 |
|
- | ||||
| 43 | 555555 | Screw-tapping (Replaces: 6002-000231) | 10 |
|
$ 151.94 | ||||
| 44 | 555555 | Screw-tapping (Replaces: 6002-000231) | 10 |
|
$ 151.94 | ||||
| 45 | 6002-000470 | Screw-tapping | 10 |
|
$ 0.85 | ||||
| 46 | 555555 | Screw-tapping (Replaces: 6002-000231) | 10 |
|
$ 151.94 | ||||
| 47 | 35001116 | Screw-tapping | 10 |
|
- | ||||
| 48 | 35001117 | Absorber-ignitor | 10 |
|
- | ||||
| 49 | 555555 | Screw-tapping (Replaces: 6002-000231) | 10 |
|
$ 151.94 | ||||
| 50 | 35001109 | Duct-heater (u) | 10 |
|
$ 81.95 | ||||
| 51 | 35001110 | Duct-heater (l) | 10 |
|
$ 77.20 |
