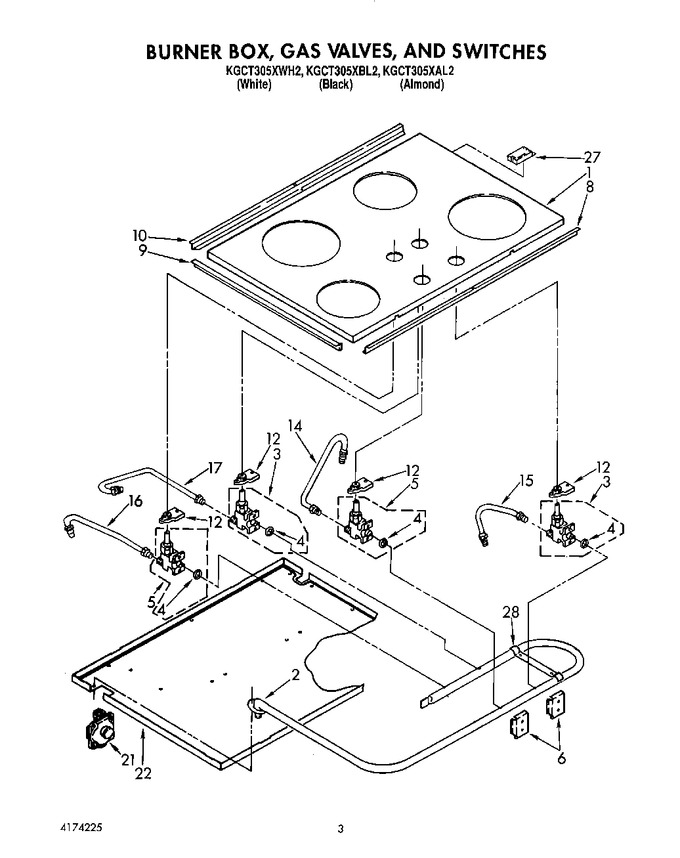

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Section
02 - Section
03 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3180912 | Cover, Top Assy. |
|
- | |||||
| 2 | 3180426 | Pipe, Manifold |
|
- | |||||
| 3 | 3180430 | Valve, Gas Burner (lf & Rr) (includes Illus. 4) |
|
- | |||||
| 3 | WP965173 | Screw, (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 3 | WP3188425 | Seal, Shaft (2) (Replaces: 3185430) |
|
$ 82.61 | |||||
| 4 | 3183487 | Washer, Gas Valve Sealing Washer (4) |
|
- | |||||
| 5 | WP3188425 | Seal, Shaft (2) (Replaces: 3185430) |
|
$ 82.61 | |||||
| 5 | 3180429 | Valve, Gas Burner (rf & Lr) (includes Illus. 4) |
|
- | |||||
| 6 | 3181205 | Bracket, Clamp (4) (gas Valve) |
|
- | |||||
| 6 | 3180435 | Screw (8) |
|
- | |||||
| 8 | 3180696 | Frame, Front |
|
- | |||||
| 9 | 3148443 | Screw (8) |
|
- | |||||
| 9 | 3185634 | Frame, Side (2) |
|
- | |||||
| 10 | 3180670 | Frame, Rear |
|
- | |||||
| 12 | WP3185427 | Switch, Gas Burner (Replaces: 3185427) |
|
$ 114.48 | |||||
| 14 | 3185298 | Tubing, Large Gas Burner (rf) |
|
- | |||||
| 15 | 3185297 | Tubing, Small Gas Burner (lf) |
|
- | |||||
| 16 | 3185296 | Tubing, Large Gas Burner (lr) |
|
- | |||||
| 17 | 3185295 | Tubing, Small Gas Burner (rr) |
|
- | |||||
| 21 | 3177120 | Regulator, Pressure |
|
- | |||||
| 22 | 3180669 | Cover, Burner Box |
|
- | |||||
| 27 | 4159461 | Screw (3) |
|
- | |||||
| 27 | WP4454392 | Module, Spark Reignition (Replaces: 3185229) |
|
$ 290.32 | |||||
| 28 | 311506 | Clip (2) |
|
- | |||||
| 28 | 3148443 | Screw (4) |
|
- | |||||
| 28 | 3180413 | Clamp, Manifold |
|
- | |||||
| LIT3185703 | Use & Care Guide |
|
- | ||||||
| 3179164 | Tape, Foam |
|
- | ||||||
| 3185249 | Wire Assy. Yellow 18`` Spark Module Term.11 To Left Rear Burner Switch |
|
- | ||||||
| 3185248 | Wire Assy. Red 14`` Spark Module Term.12 To Left Front Burner Switch |
|
- | ||||||
| 3185252 | Wire Assy. Yellow 31`` Spark Module Term.4 To Right Front Burner Term.1 |
|
- | ||||||
| 3185245 | Wire Assy. Blue 23`` Spark Module Term.3 To Right Rear Burner Term.1 |
|
- | ||||||
| 3185244 | Wire Assy. Red 16`` Spark Module Term.1 To Left Front Burner Term.1 |
|
- | ||||||
| 3185242 | Wire Assy. White 10`` Spark Module Term.2 To Left Rear Burner Term.1 |
|
- | ||||||
| LIT4174225 | Repair Parts List |
|
- | ||||||
| LIT3177316 | Installation Instructions |
|
- | ||||||
| 4175444 | Conversion Kit Natural Gas To L.p. |
|
- | ||||||
| 3180600 | Hardware, Mounting |
|
- | ||||||
| 3179589 | Tie, Wire (2) |
|
- | ||||||
| 4169261 | Cord, Power |
|
- | ||||||
| 3180474 | Wire Assy. Module Ground |
|
- | ||||||
| 3181197 | Harness, Wire Sealed Gas Cooktop |
|
- | ||||||
| 3185255 | Wire Assy. Red 20.5`` Spark Module Term.9 To Right Front Burner Switch |
|
- | ||||||
| 3185254 | Wire Assy. White 18`` Spark Module Term.10 To Right Rear Burner Switch |
|
- |
