SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts
04 - Door Parts
05 - Drawer Parts
06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:

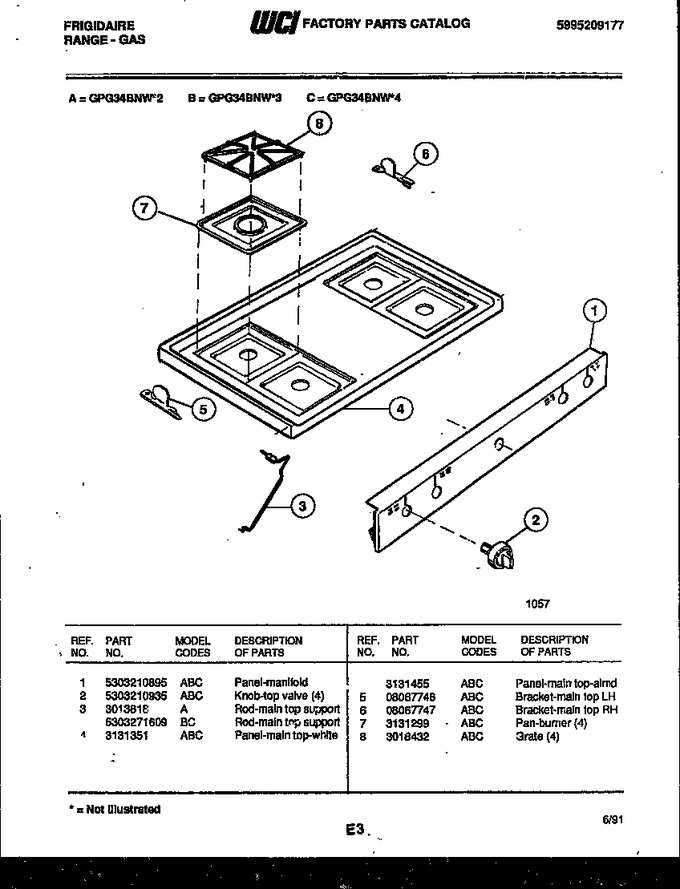

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303210895 | Panel, Manifold |
|
- | |||||
| 2 | 5303210935 | Knob-top Valve (4) |
|
- | |||||
| 3 | 5303271609 | Rod-maintop Support |
|
- | |||||
| 4 | 3131455 | Panel-main Top-almd |
|
- | |||||
| 5 | 08067746 | Bracket, Main Top, Lh |
|
- | |||||
| 6 | 08067747 | Bracket, Main Top, Rh |
|
- | |||||
| 7 | 3131299 | Pan-burner (4) |
|
- | |||||
| 8 | 3018432 | Grate (4) |
|
- |
