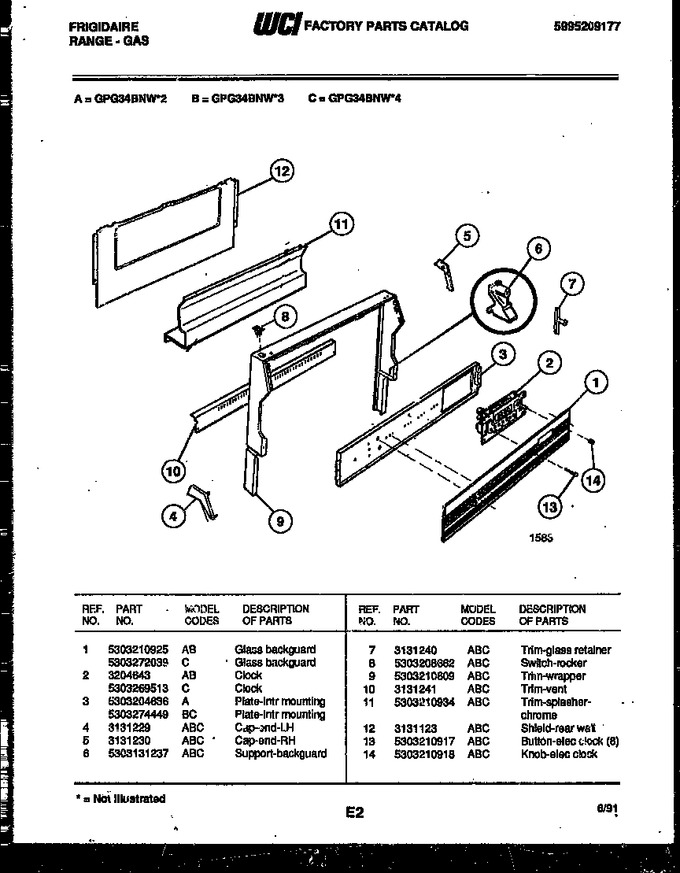

02 - Backguard
03 - Cooktop Parts
04 - Door Parts
05 - Drawer Parts
06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303272039 | Glass Backguard |
|
- | |||||
| 2 | 5303269513 | Clock |
|
- | |||||
| 3 | 5303274449 | Plate-intr Mounting |
|
- | |||||
| 4 | 3131229 | Cap, End (lh) |
|
- | |||||
| 5 | 3131230 | Cap, End (rh) |
|
- | |||||
| 6 | 5303131237 | Support, Backguard |
|
- | |||||
| 7 | 3131240 | Trim-glass Retainer |
|
- | |||||
| 8 | 5303208662 | Switch-rocker |
|
- | |||||
| 9 | 5303210609 | Trim, Wrapper |
|
- | |||||
| 10 | 3131241 | Trim-vent |
|
- | |||||
| 11 | 5303210934 | Trim-splasher Chrome |
|
- | |||||
| 12 | 3131123 | Shield, Rear Wall |
|
- | |||||
| 13 | 5303210917 | Button-elec Clock (8) |
|
- | |||||
| 14 | 5303210918 | Knob-elec Clock |
|
- |
