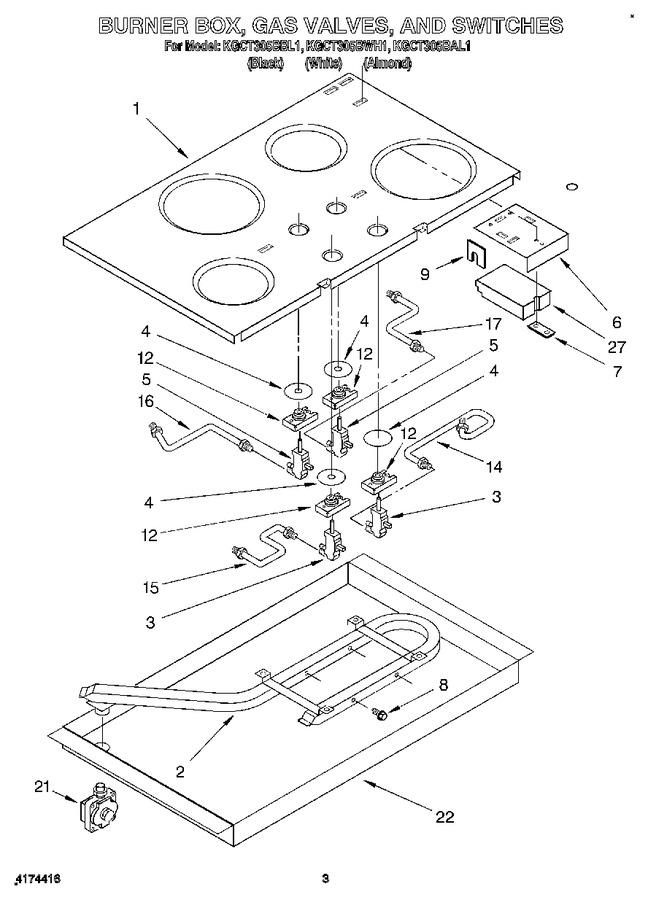

01 - Cooktop, Burner And Grate


02 - Burner Assembly


03 - Burner Box, Gas Valves, And Switches


04 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3188324		Cover, Top Assy.		Appelez-nous	-
2	3187442		Pipe, Manifold		Appelez-nous	-
3	3187570		Valve, Gas Burner (lf & Rr)		Appelez-nous	-
4	WP3188425		Seal, Shaft   (Replaces: 3185430)				$ 82.61
4	4159603		Washer		Appelez-nous	-
4	3148443		Screw		Appelez-nous	-
5	3187569		Valve, Gas Burner (rf & Lr)		Appelez-nous	-
6	3187444		Sheild, Heat		Appelez-nous	-
7	3148443		Screw		Appelez-nous	-
7	3187583		Bracket		Appelez-nous	-
8	3185829		Bolt (gas Valve)		Appelez-nous	-
9	3187754		Grommet, Wire		Appelez-nous	-
12	WP3185830		Switch, Gas Burner   (Replaces: 3185830)				$ 93.81
14	3186689		Tubing, Large Gas Burner (rf)		Appelez-nous	-
15	3186690		Tubing, Small Gas Burner (lf)		Appelez-nous	-
16	3186692		Tubing, Large Gas Burner (lr)		Appelez-nous	-
17	3186691		Tubing, Small Gas Burner (rr)		Appelez-nous	-
21	3177120		Regulator, Pressure		Appelez-nous	-
22	3188321		Burner Box		Appelez-nous	-
22	3148443		Screw		Appelez-nous	-
27	WP4454392		Module, Spark Reignition   (Replaces: 3187409)				$ 290.32
27	3148443		Screw		Appelez-nous	-
	LIT3188087		Installation Instructions		Appelez-nous	-
	3179164		Tape, Foam		Appelez-nous	-
	4173627		Conversion Kit Natural Gas To L.p.		Appelez-nous	-
	3188310		Hardware, Mounting		Appelez-nous	-
	WPW10339879		Tie, Wire (2)   (Replaces: 309330)				$ 7.11
	4159465		Screw		Appelez-nous	-
	3185833		Cord, Power		Appelez-nous	-
	LIT3187587		Wiring Diagram		Appelez-nous	-
	LIT3188080		Use & Care Guide		Appelez-nous	-
