SELECT A DIAGRAM

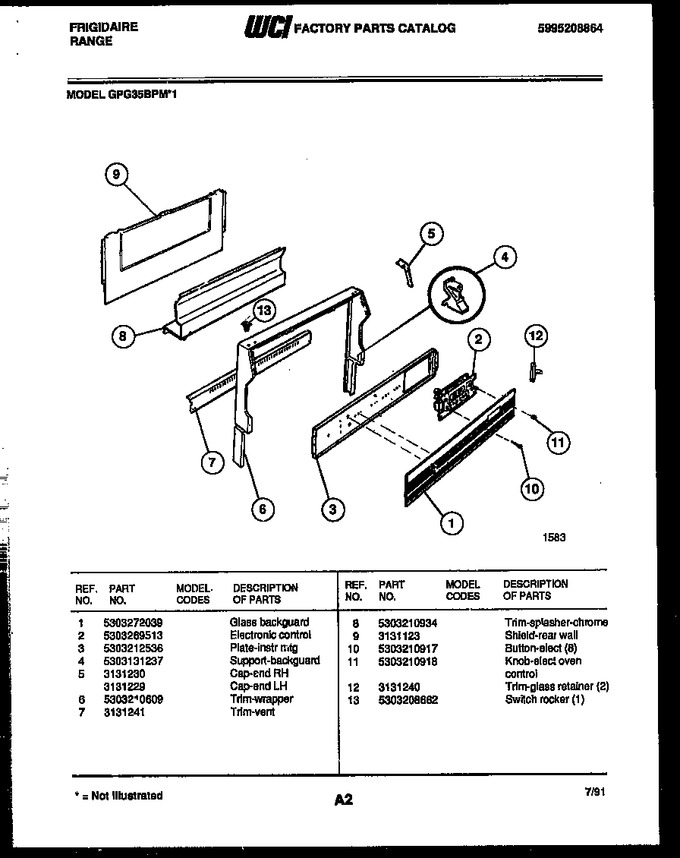

02 - Backguard
03 - Cooktop Parts
04 - Drawer Parts
05 - Door Parts
06 - Burner, Manifold And Gas Control
07 - Body Parts
08 - Burner Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303272039 | Glass Backguard |
|
- | |||||
| 2 | 5303269513 | Electronic Control |
|
- | |||||
| 3 | 5303212536 | Plate - Instr Mtg |
|
- | |||||
| 4 | 5303131237 | Support, Backguard |
|
- | |||||
| 5 | 3131230 | Cap, End (rh) |
|
- | |||||
| 6 | 5303210609 | Trim, Wrapper |
|
- | |||||
| 7 | 3131241 | Trim-vent |
|
- | |||||
| 8 | 5303210934 | Trim-splasher Chrome |
|
- | |||||
| 9 | 3131123 | Shield, Rear Wall |
|
- | |||||
| 10 | 5303210917 | Button-elect (8) |
|
- | |||||
| 11 | 5303210918 | Knob-elect Oven Control |
|
- | |||||
| 12 | 3131240 | Trim-glass Retainer, (2) |
|
- | |||||
| 13 | 5303208662 | Switch Rocker (1) |
|
- | |||||
| 5A | 3131229 | Cap, End (lh) |
|
- |
