SELECT A DIAGRAM

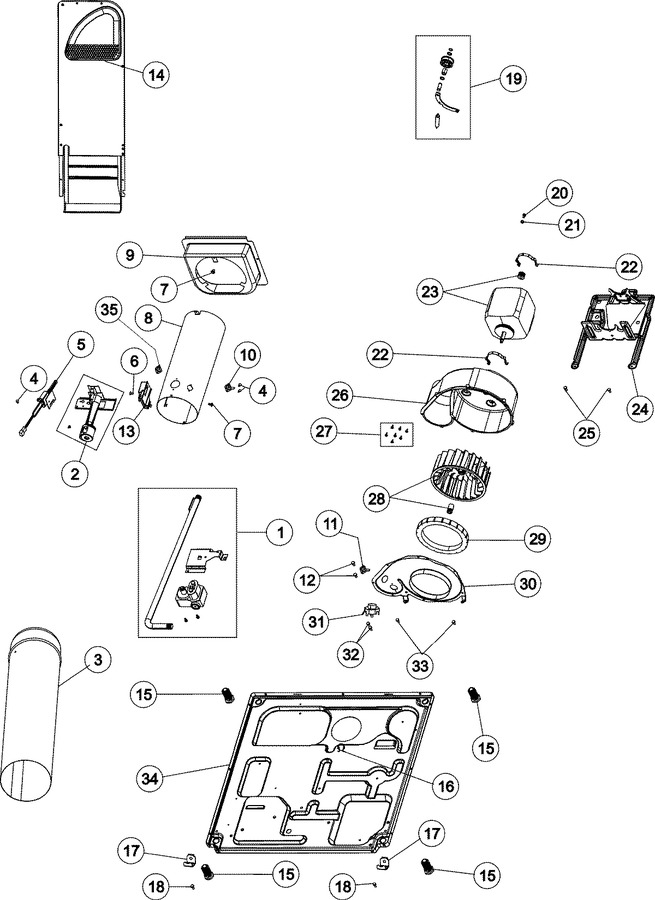

01 - Base, Heating & Motor


02 - Cabinet & Front Panel


03 - Control Panel & Top


04 - Supplemental Information


05 - Tumbler


06 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	37001127		Valve & Pipe Assy	10			$ 239.94
2	649P3		Natural To Lp Conversion Kit	10		Immediately	$ 58.39
2	Y56234		Assembly, Burner	10	Appelez-nous	-
2	650P3		Lp To Natural Conversion Kit	10			$ 84.60
3	505518		Duct, Exhaust	10	Appelez-nous	-
4	WP8281196		Screw,indent Hex Head-   (Replaces: 56692)	10		Immediately	$ 6.47
5	WP37001308		Igniter & Bracket Assembly   (Replaces: 40069801)	10		Immediately	$ 67.52
6	WP3177991		Screw, 8b-18 X 1/4 He   (Replaces: 23222)	10		Immediately	$ 6.47
7	D503688		Screw   (Replaces: 503688)	10		Immediately	$ 6.95
8	37001041		Duct, Combustion	10	Appelez-nous	-
9	500122		Shroud, Heat Duct	10	Appelez-nous	-
10	Y61886		Thermostat, Limit	10	Appelez-nous	-
11	WP694674		Thermostat, Cycling (limit)   (Replaces: 33002567)	10		Immediately	$ 45.46
12	WP90767		Screw, 8b-18x3/8 Slt   (Replaces: 501086)	10		Immediately	$ 7.04
13	WP338906		Sensor, Flame   (Replaces: Y56231)	10		Immediately	$ 46.72
14	503605		Assembly, Heater Duct	10	Appelez-nous	-
15	Y500101		Leg, Leveling (plastic)	10			$ 25.84
16	504034		Clip, Wire	10	Appelez-nous	-
17	37001145		Clip, Front Panel	10			$ 29.66
18	WP27001200		Screw (12-14x1/2 Type B   (Replaces: 27001200)	10			$ 6.91
19	WP37001287		Assy, Idler Lever/shaft/pulley   (Replaces: 37001287)	10		Immediately	$ 49.53
20	D500824		Screw, 1/4-20 Unc Hex   (Replaces: 500824)	10			$ 6.95
21	WPW10139757		Nut, Jam Mid Lock 1/4-20   (Replaces: 27001225)	10			$ 7.16
22	WP660658		Clamp, Motor Mount   (Replaces: Y58047)	10			$ 7.05
23	WP2200376		Motor, Pully   (Replaces: 40048501)	10		Immediately	$ 146.83
24	D518517		Mount, Motor   (Replaces: 503613)	10			$ 30.65
25	WP27001200		Screw (12-14x1/2 Type B   (Replaces: 27001200)	10			$ 6.91
26	D511969WP		Housing, Blower   (Replaces: 56020)	10			$ 61.51
27	31260		Screw, No.8 X 3/8 Ind H	10			$ 2.68
28	D510139P		Assembly, Blower Fan   (Replaces: 56000)	10		Immediately	$ 73.39
29	37001119		Seal, Blower Housing	10			$ 32.71
30	500078		Cover, Blower Housing	10	Appelez-nous	-
31	WP31001590		Thermistor, Temp Control   (Replaces: 31001590)	10			$ 98.65
32	WP90767		Screw, 8b-18x3/8 Slt   (Replaces: 501086)	10		Immediately	$ 7.04
33	D503688		Screw   (Replaces: 503688)	10		Immediately	$ 6.95
34	37001156		Dryer Base	10	Appelez-nous	-
35	WP40113801		Fuse, Thermal   (Replaces: 40113801)	10		Immediately	$ 10.37

    View Diagram in Separate Window       Print Part List
