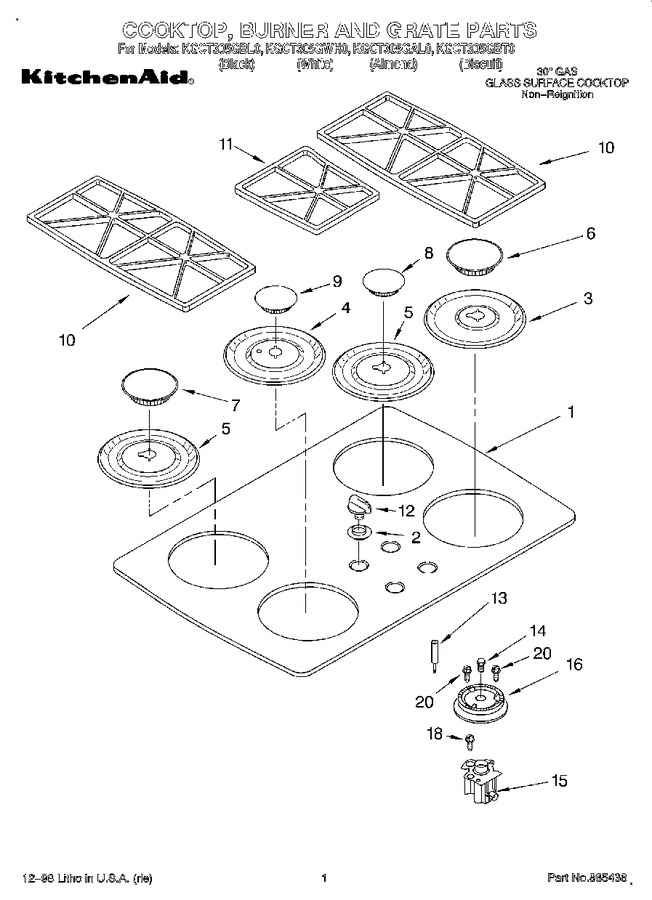

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3192153 | Cooktop, Glass (black) |
|
- | |||||
| 1 | 3192155 | Cooktop, Glass (almond) |
|
- | |||||
| 1 | 3192156 | Cooktop, Glass (biscuit) |
|
- | |||||
| 1 | 3192154 | Cooktop, Glass (white) |
|
- | |||||
| 2 | 3191817 | Grommet, Glass (biscuit) |
|
- | |||||
| 2 | WP3180081 | Grommet, Glass (white) (Replaces: 3180081) |
|
$ 7.40 | |||||
| 2 | W10854242 | Grommet, Glass (black) (Replaces: 3180079) |
|
Immediately | $ 7.58 | ||||
| 2 | W10854241 | Grommet, Glass (almond) (Replaces: 3180080) |
|
$ 6.87 | |||||
| 3 | 3191819 | Bezel, Cooktop (rf) (biscuit) |
|
- | |||||
| 3 | 3191308 | Bezel, Cooktop (rf) (white) |
|
- | |||||
| 3 | 3191307 | Bezel, Cooktop (rf) (black) |
|
- | |||||
| 3 | 3191309 | Bezel, Cooktop (rf) (almond) |
|
- | |||||
| 4 | 3191500 | Bezel, Cooktop (lf) (almond) |
|
- | |||||
| 4 | 3191499 | Bezel, Cooktop (lf) (white) |
|
- | |||||
| 4 | 3191498 | Bezel, Cooktop (lf) (black) |
|
- | |||||
| 4 | 3191826 | Bezel, Cooktop (lf) (biscuit) |
|
- | |||||
| 5 | 3191818 | Bezel, Cooktop (lr, Rr) (biscuit) |
|
- | |||||
| 5 | 3191304 | Bezel, Cooktop (lr, Rr) (almond) |
|
- | |||||
| 5 | 3191302 | Bezel, Cooktop (lr, Rr) (black) |
|
- | |||||
| 5 | 3191303 | Bezel, Cooktop (lr, Rr) (white) |
|
- | |||||
| 6 | 3191729 | Cap, (rf) (white) |
|
- | |||||
| 6 | 3191728 | Cap, (rf) (black) |
|
$ 33.65 | |||||
| 6 | 3191730 | Cap, (rf) (almond/biscuit) |
|
- | |||||
| 7 | 3191733 | Cap, (lr) (almond/biscuit) |
|
- | |||||
| 7 | 3191732 | Cap, (lr) (white) |
|
- | |||||
| 7 | 3191731 | Cap, (lr) (black) |
|
$ 35.27 | |||||
| 8 | 3191736 | Cap, (rr) (almond/biscuit) |
|
- | |||||
| 8 | 3191735 | Cap, (rr) (white) |
|
$ 43.51 | |||||
| 8 | 3191734 | Cap, (rr) (black) |
|
$ 41.09 | |||||
| 9 | 3191737 | Cap, (lf) (black) |
|
$ 44.65 | |||||
| 9 | 3191738 | Cap, (lf) (white) |
|
- | |||||
| 9 | 3191739 | Cap, (lf) (almond/biscuit) |
|
- | |||||
| 10 | 3191486 | Grate, Burner (white) |
|
$ 99.21 | |||||
| 10 | 3191487 | Grate, Burner (almond/biscuit) |
|
- | |||||
| 10 | 3191485 | Grate, Burner (black) |
|
$ 96.94 | |||||
| 11 | 3191278 | Grate, Filler (white) |
|
- | |||||
| 11 | 3191279 | Grate, Filler (almond/biscuit) |
|
- | |||||
| 11 | 3191277 | Grate, Filler (black) |
|
- | |||||
| 12 | 3191924 | Knob, Control (4) (almond) |
|
- | |||||
| 12 | WP3191922 | Knob, Control (4) (black) (Replaces: 3191922) |
|
Immediately | $ 6.47 | ||||
| 12 | 3191923 | Knob, Control (4) (white) |
|
$ 5.84 | |||||
| 12 | 3191925 | Knob, Control (4) (biscuit) |
|
$ 12.21 | |||||
| 13 | 3192527 | Ignitor |
|
- | |||||
| 14 | WP3192523 | Orifice (left Rear) (Replaces: 3192523) |
|
$ 80.19 | |||||
| 14 | 3192528 | Orifice (right Front) |
|
- | |||||
| 14 | 3192525 | Orifice (left Front) |
|
$ 38.58 | |||||
| 14 | WP9753930 | Orifice (right Rear) (Replaces: 3192524) |
|
$ 80.19 | |||||
| 15 | 3191743 | Holder, Orifice (left Front) |
|
- | |||||
| 15 | 3191741 | Holder, Orifice (left Rear) |
|
- | |||||
| 15 | 3191740 | Holder, Orifice (right Front) |
|
- | |||||
| 15 | 3191742 | Holder, Orifice (right Rear) |
|
- | |||||
| 16 | 9753111 | Head, Burner (left Front) |
|
- | |||||
| 16 | 9753187 | Head, Burner (left Rear) |
|
- | |||||
| 16 | 9753109 | Head, Burner (right Front) |
|
- | |||||
| 16 | 9753110 | Head, Burner (right Rear) |
|
- | |||||
| 18 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 20 | WP3400814 | Screw (Replaces: 3400863) |
|
$ 3.96 |
