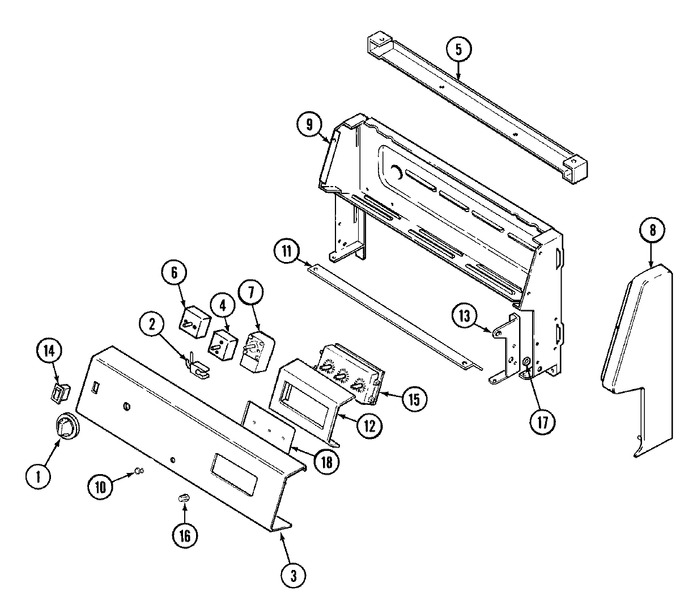

01 - Body
02 - Control Panel
03 - Door/drawer
04 - Oven/base
05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP74003611 | Knob (wht) (Replaces: 7737P039-60) | 50 |
|
$ 17.45 | ||||
| 2 | W10852510 | Light, Indicator (Replaces: 7407P102-60) | 50 |
|
$ 106.11 | ||||
| 3 | 7101P348-60 | Screw (wht) | 50 |
|
- | ||||
| 3 | 74003234 | Panel, Control (wht) | 50 |
|
- | ||||
| 4 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 50 |
|
Immediately | $ 6.26 | |||
| 4 | 7403P342-60 | Switch, Selector | 50 |
|
- | ||||
| 5 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 50 |
|
Immediately | $ 12.62 | |||
| 5 | 4001F064-51 | Extension, Control Panel | 50 |
|
- | ||||
| 6 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 50 |
|
Immediately | $ 57.78 | |||
| 6 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 50 |
|
Immediately | $ 35.10 | |||
| 6 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 50 |
|
Immediately | $ 6.26 | |||
| 7 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 50 |
|
Immediately | $ 6.26 | |||
| 7 | 7404P100-60 | Thermostat | 50 |
|
- | ||||
| 8 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 50 |
|
Immediately | $ 12.62 | |||
| 8 | 74002338 | End Cap, Panel (rt-wht) | 50 |
|
- | ||||
| 8 | 74002339 | End Cap, Panel (lt-wht) | 50 |
|
- | ||||
| 9 | 74002162 | Housing, Control Panel | 50 |
|
- | ||||
| 10 | W11690131 | Lens, Indicator Light (Replaces: 7730P012-60) | 50 |
|
$ 6.73 | ||||
| 11 | 3604F201-80 | Shield, Sight | 50 |
|
- | ||||
| 11 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 50 |
|
Immediately | $ 12.62 | |||
| 12 | 7101P348-60 | Screw (wht) | 50 |
|
- | ||||
| 12 | 3801F317-45 | Bracket, Clock | 50 |
|
- | ||||
| 13 | 3418D098-60 | Hinge, Main Top (rt) | 50 |
|
- | ||||
| 13 | 3418D097-60 | Hinge, Main Top (lt) | 50 |
|
- | ||||
| 13 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 50 |
|
Immediately | $ 12.62 | |||
| 14 | 7403P314-60 | Switch, Rocker (wht) | 50 |
|
- | ||||
| 15 | 7601P193-60 | Clock | 50 |
|
- | ||||
| 16 | 7711P466-60 | Knob, Clock | 50 |
|
$ 14.72 | ||||
| 17 | WP3195558 | Nut, Speed (Replaces: 7103P044-60) | 50 |
|
$ 7.68 | ||||
| 18 | 7201P056-60 | Gasket | 50 |
|
- | ||||
| 18 | 7902P109-60 | Glass, Clock | 50 |
|
- | ||||
| 19 | 5170D188-60 | Wire Harness, Control Panel | 50 |
|
- | ||||
| 19 | 74001013 | Harness, Control/top | 50 |
|
- | ||||
| 19 | 5195D093-60 | Wire Harness, Door Latch | 50 |
|
- | ||||
| 20 | 74002476 | Manual, Use & Care | 50 |
|
- | ||||
| 21 | 16000327 | Guide, Quick Ref. - Maytag | 50 |
|
- |
