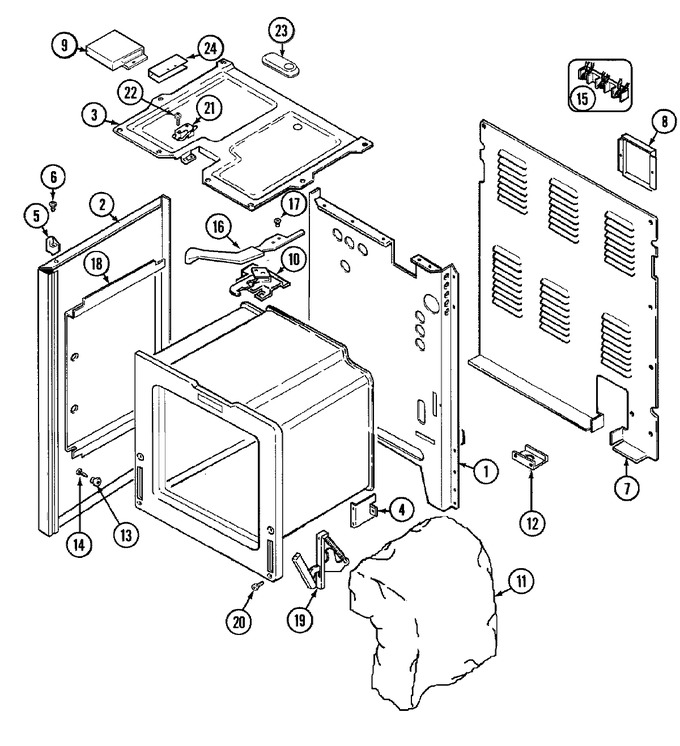

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74001772		Back, Main	50	Appelez-nous	-
1	74002334		Shield, Wire	50	Appelez-nous	-
1	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	50		Immediately	$ 12.62
2	74003237		Panel, Side (alm)	50	Appelez-nous	-
3	74001753		Box, Burner----na	50	Appelez-nous	-
3	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	50		Immediately	$ 12.62
4	3807F400-51		Support,oven Rear	50	Appelez-nous	-
4	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	50		Immediately	$ 12.62
5	8010P088-60		Spacer, Main Top (rt)	50	Appelez-nous	-
5	8010P087-60		Spacer, Main Top (lt)	50	Appelez-nous	-
6	W11233072		Screw (no.8ab)   (Replaces: 71001183)	50		Immediately	$ 12.62
7	74003241		Cover, Main Back Wire	50	Appelez-nous	-
7	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	50		Immediately	$ 12.62
8	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	50		Immediately	$ 12.62
8	4005F427-51		Cover, Access	50	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	50		Immediately	$ 12.62
9	4005F398-80		Cover, Latch Assy.	50	Appelez-nous	-
10	74003123		Latch, Oven Door	50	Appelez-nous	-
10	74003139		Retainer, Latch Insulation	50	Appelez-nous	-
10	W10828565		Screw, Black   (Replaces: 7101P270-60)	50			$ 6.70
10	74001084		Insulation, Door Latch	50	Appelez-nous	-
11	74001800		Insulation, Back	50	Appelez-nous	-
11	74003037		Insulation, Oven Wrap	50	Appelez-nous	-
12	3605F174-51		Plate, Conduit Tubing	50	Appelez-nous	-
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	50		Immediately	$ 12.62
13	W10857933		Spacer, Side Panel   (Replaces: 8004P024-60)	50			$ 7.07
14	WPW10348409		Screw (8abx13/16-zn)   (Replaces: 74001449)	50		Immediately	$ 6.98
14	W11693756		Screw (8abx19/32-zn)   (Replaces: 74003004)	50		Immediately	$ 12.65
15	7401P041-60		Board, Terminal	50	Appelez-nous	-
15	WPW10245259		Block, Terminal   (Replaces: 7401P039-60)	50		Immediately	$ 31.65
16	74003005		Lever, Latch (blk)	50	Appelez-nous	-
17	WP4159193		Screw   (Replaces: 7101P115-60)	50			$ 4.29
18	74002599		Retainer, Insulation (side)	50	Appelez-nous	-
18	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	50		Immediately	$ 12.62
19	7106P056-60		Hinge	50	Appelez-nous	-
19	WP74011140		Hinge, Door   (Replaces: 74003243)	53		Immediately	$ 120.21
20	WP4159193		Screw   (Replaces: 7101P112-60)	50			$ 4.29
21	74001822		Switch, Door Lock	50	Appelez-nous	-
22	700520		Screw	50			$ 213.24
23	4005F432-45		Cover, Vent	50	Appelez-nous	-
23	WPW10348409		Screw (8abx13/16-zn)   (Replaces: 74001449)	50		Immediately	$ 6.98
24	74001823		Insulator, Door Lock Switch	50	Appelez-nous	-
