SELECT A DIAGRAM

01 - Section


02 - Section


03 - Section

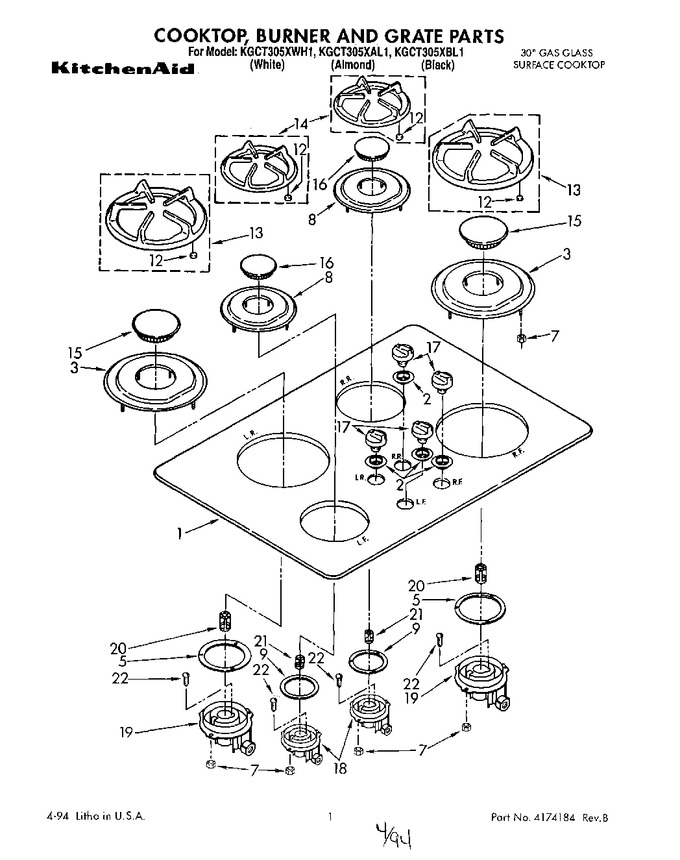

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3181343		Cooktop, Glass (almond)		Appelez-nous	-
1	3181342		Cooktop, Glass (black)		Appelez-nous	-
1	3181344		Cooktop, Glass (white)		Appelez-nous	-
2	W10854241		Grommet, Glass Cooktop (4) (almond)   (Replaces: 3180080)				$ 6.87
2	WP3180081		Grommet, Glass Cooktop (4) (white)   (Replaces: 3180081)				$ 7.40
2	W10854242		Grommet, Glass Cooktop (4) (black)   (Replaces: 3180079)			Immediately	$ 7.58
3	3180087		Bezel, Cooktop (large) (white)		Appelez-nous	-
3	3180085		Bezel, Cooktop (large) (black (includes Illus. 5 And 7)		Appelez-nous	-
3	3180086		Bezel, Cooktop (large) (almond)		Appelez-nous	-
5	3181659		Gasket, Burner (large)		Appelez-nous	-
7	4166262		Nut, Hex		Appelez-nous	-
8	3180088		Bezel, Cooktop (small) (black (includes Illus. 7 And 9))		Appelez-nous	-
8	3180089		Bezel, Cooktop (small) (almond)		Appelez-nous	-
8	3180090		Bezel, Cooktop (small) (white)		Appelez-nous	-
9	3181658		Gasket, Burner (small)		Appelez-nous	-
12	3180414		Pad, Grate (incls. 5 Pads)		Appelez-nous	-
13	3180921		Grate, Large (rf & Lr) (includes No.12) (black (kgct305xbl1))		Appelez-nous	-
13	3180923		Grate, Large (rf & Lr) (includes No.12) (shadow Grey (kgct305xwh1))		Appelez-nous	-
13	3180922		Grate, Large (rf & Lr) (includes No.12) (taupe (kgct305xal1))		Appelez-nous	-
14	3180929		Grate (small) L.f.& R.r. (includes No.12) (shadow Grey (kgct305xwh1))		Appelez-nous	-
14	3180927		Grate (small) L.f.& R.r. (includes No.12) (black (kgct305xbl1))		Appelez-nous	-
14	3180928		Grate (small) L.f.& R.r. (includes No.12) (taupe (kgct305xal1))		Appelez-nous	-
15	3180082		Cap, Rapid Burner (2) (black (kgct305xbl1))		Appelez-nous	-
15	3180083		Cap, Rapid Burner (2) (taupe (kgct305xal1))		Appelez-nous	-
15	3180084		Cap, Rapid Burner (2) (shadow Grey (kgct305xwh1))		Appelez-nous	-
16	3180091		Cap, Semi Rapid Burner (2) (black (kgct305xbl1))		Appelez-nous	-
16	3180093		Cap, Semi Rapid Burner (2) (shadow Grey (kgct305xwh1))		Appelez-nous	-
16	3180092		Cap, Semi Rapid Burner (2) (taupe (kgct305xal1))		Appelez-nous	-
17	WP3181305		Knob, Control (4) (white)   (Replaces: 3181305)				$ 18.57
17	WP3181306		Knob, Control (4) (almond)   (Replaces: 3181306)				$ 22.92
17	WP3181304		Knob, Control (4) (black)   (Replaces: 3181304)				$ 16.43
18	3180265		Burner, Small Sealed		Appelez-nous	-
19	3180266		Burner, Large Sealed		Appelez-nous	-
20	3180288		Shutter, Burner Air		Appelez-nous	-
21	3180267		Shutter, Burner Air		Appelez-nous	-
22	3180235		Screw, Gas Burner		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
