New Model Search:

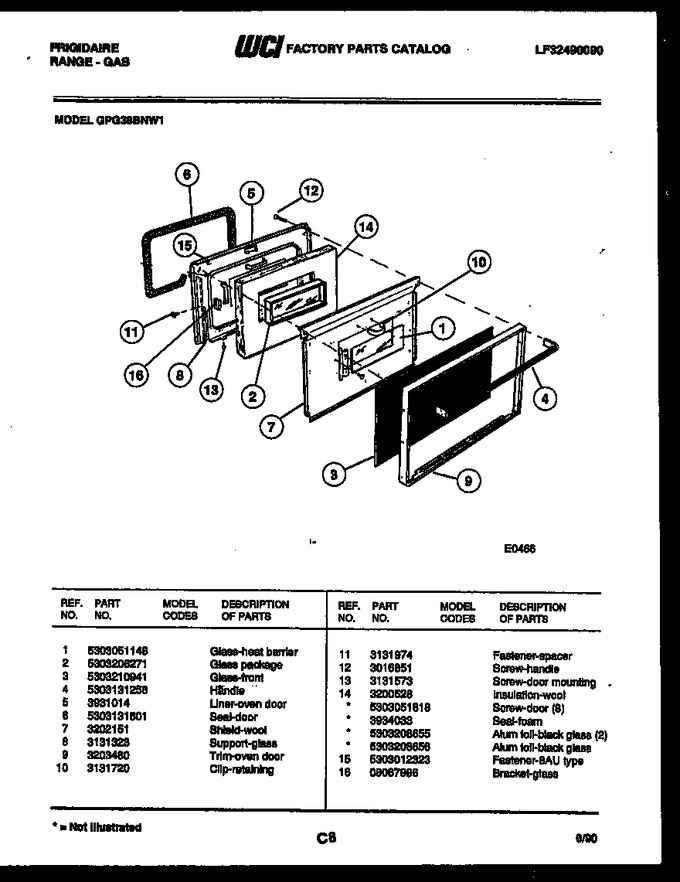

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303051148 | Glass, Heat Barrier |
|
- | |||||
| 2 | 5303206271 | Glass Package |
|
- | |||||
| 3 | 5303210941 | Glass-front |
|
- | |||||
| 4 | 5303131256 | Handle |
|
- | |||||
| 5 | 3931014 | Liner-oven Door |
|
- | |||||
| 6 | 5303131601 | Seal, Door |
|
$ 374.63 | |||||
| 7 | 3202151 | Shield, Wool |
|
- | |||||
| 8 | 3131323 | Support, Glass |
|
- | |||||
| 9 | 3203480 | Trim, Oven Door |
|
- | |||||
| 10 | 3131720 | Clip-retaining |
|
- | |||||
| 11 | 3131974 | Fastener-spacer |
|
- | |||||
| 12 | 3016851 | Screw-handle |
|
- | |||||
| 13 | 3131573 | Screw-door Mounting |
|
- | |||||
| 14 | 3200528 | Insulation-wool |
|
- | |||||
| 15 | 3203010 | Fastener-8 Au Type (Replaces: 5303012323) |
|
$ 14.89 | |||||
| 16 | 08067996 | Bracket-glass |
|
- | |||||
| 14A | 5303051818 | Screw-door (8) (non-illustrated) |
|
- | |||||
| 14B | 3934033 | Seal-foam (non-illustrated) |
|
- | |||||
| 14C | 5303208655 | Alum Foil-black Glass (2) (non-illustrated) |
|
- | |||||
| 14D | 5303208656 | Alum Foil-black Glass (non-illustrated) |
|
- |
