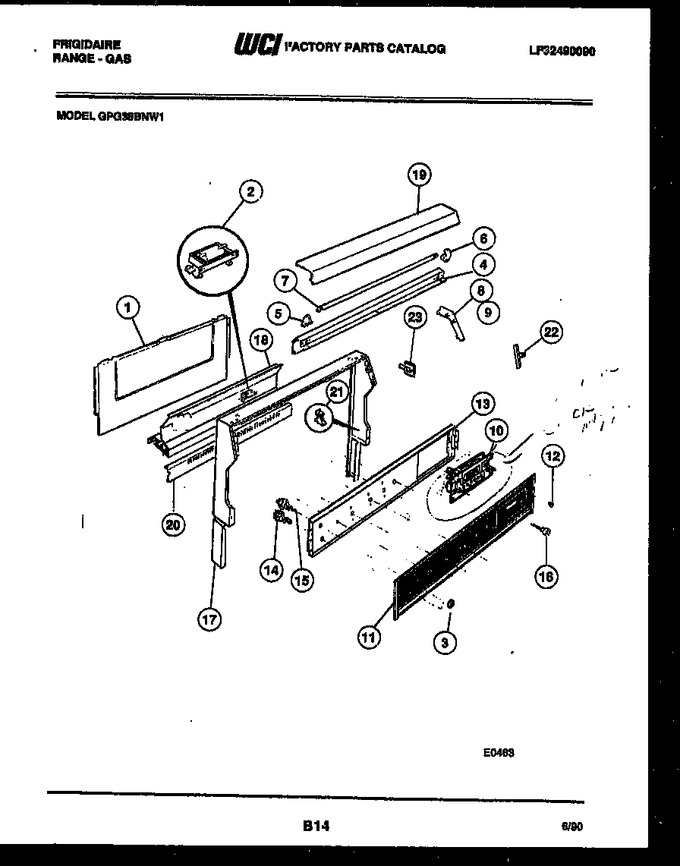

02 - Backguard
03 - Cooktop Parts
04 - Drawer Parts
05 - Burner, Manifold And Gas Control
06 - Body Parts
07 - Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131123 | Shield, Rear Wall |
|
- | |||||
| 2 | 5303051115 | Ballast |
|
- | |||||
| 3 | 5303011507 | Bezel, Switch (2) |
|
$ 21.47 | |||||
| 4 | 3131277 | Support, Fluorescent |
|
- | |||||
| 5 | 3051222 | Receptacle-fl Lt |
|
- | |||||
| 6 | 3051223 | Receptacle-fl Lt |
|
- | |||||
| 7 | 3131275 | Bulb-fluor |
|
$ 49.40 | |||||
| 8 | 3131267 | Cap End-lh Trim Canopy |
|
- | |||||
| 9 | 3131268 | Cap End-rh Trim Canopy |
|
- | |||||
| 10 | 3204643 | Electric Clock |
|
- | |||||
| 11 | 5303210950 | Glass Control Panel |
|
- | |||||
| 12 | 5303210918 | Knob-oven Control |
|
- | |||||
| 13 | 5303204636 | Plate, Instr. Mtg |
|
- | |||||
| 14 | 5303200479 | Switch Oven Light |
|
$ 7.04 | |||||
| 15 | 5303200480 | Switch-fluor Light |
|
$ 125.53 | |||||
| 16 | 5303210917 | Button-clock (8) |
|
- | |||||
| 17 | 3131280 | Trim-wrapper |
|
- | |||||
| 18 | 5303210934 | Trim-splasher |
|
- | |||||
| 19 | 5303210968 | Trim-canopy |
|
- | |||||
| 20 | 3131241 | Trim-vent |
|
- | |||||
| 21 | 5303131237 | Support, Backguard |
|
- | |||||
| 22 | 3131240 | Retainer-trim Glass |
|
- | |||||
| 23 | 3131276 | Spacer-fl Lt Mtg |
|
- | |||||
| *25691 | 5303013807 | Rivet-accordion |
|
- | |||||
| *25691 | 3018820 | Shield-backguard |
|
- |
