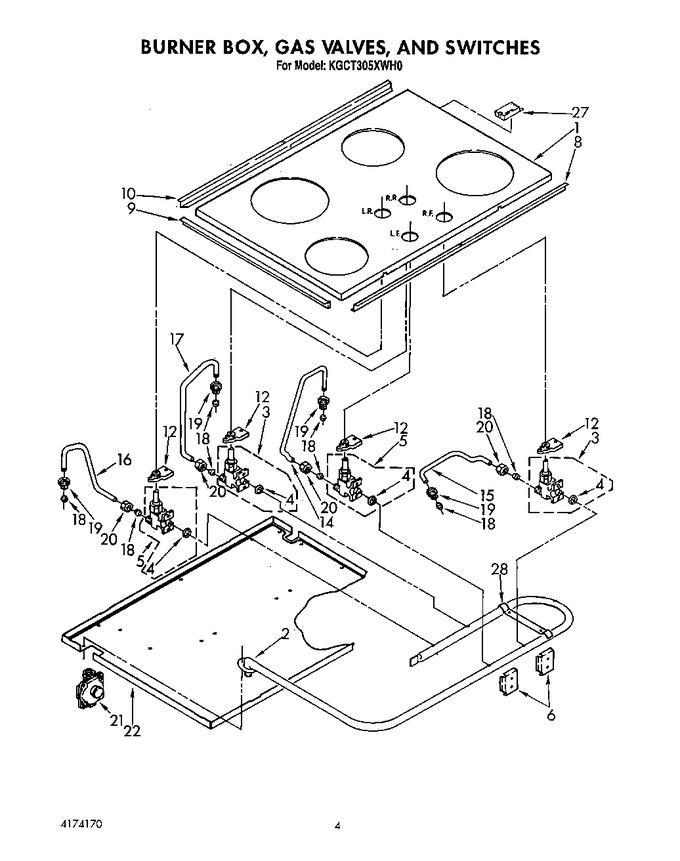

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3180912		Cover, Top Assy.		Appelez-nous	-
2	3180426		Pipe, Manifold		Appelez-nous	-
3	3180430		Valve, Gas Burner (lf & Rr) (includes Illus. 4)		Appelez-nous	-
4	3180431		Washer, Gas Valve Sealing Washer (4)		Appelez-nous	-
5	3180429		Valve, Gas Burner (rf & Lr) (includes Illus. 4)		Appelez-nous	-
6	3181205		Bracket, Clamp (4) (gas Valve)		Appelez-nous	-
8	3180696		Frame, Front		Appelez-nous	-
9	3181256		Frame, Side (2)		Appelez-nous	-
10	3180670		Frame, Rear		Appelez-nous	-
12	WP3185427		Switch, Gas Burner   (Replaces: 3180703)				$ 114.48
14	3180424		Tubing, Large Gas Burner (rf)		Appelez-nous	-
15	3180418		Tubing, Small Gas Burner (lf)		Appelez-nous	-
16	3180422		Tubing, Large Gas Burner (lr)		Appelez-nous	-
17	3180420		Tubing, Small Gas Burner (rr)		Appelez-nous	-
18	3180436		Sleeving, Gas Tube (8)		Appelez-nous	-
19	3180438		Nut, Gas Tubing (burner End) 4		Appelez-nous	-
20	3180437		Nut, Gas Tubing (gas Valve End) 4		Appelez-nous	-
21	3177120		Regulator, Pressure		Appelez-nous	-
22	3180669		Cover, Burner Box		Appelez-nous	-
27	WP4454392		Module Spark Reignition   (Replaces: 3180475)				$ 290.32
28	3180413		Clamp, Manifold		Appelez-nous	-
	LIT3177316		Installation Instructions		Appelez-nous	-
	LIT4174170		Repair Parts List		Appelez-nous	-
	LIT3180602		Use & Care Guide		Appelez-nous	-
NI	3180435		Screw (8)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
