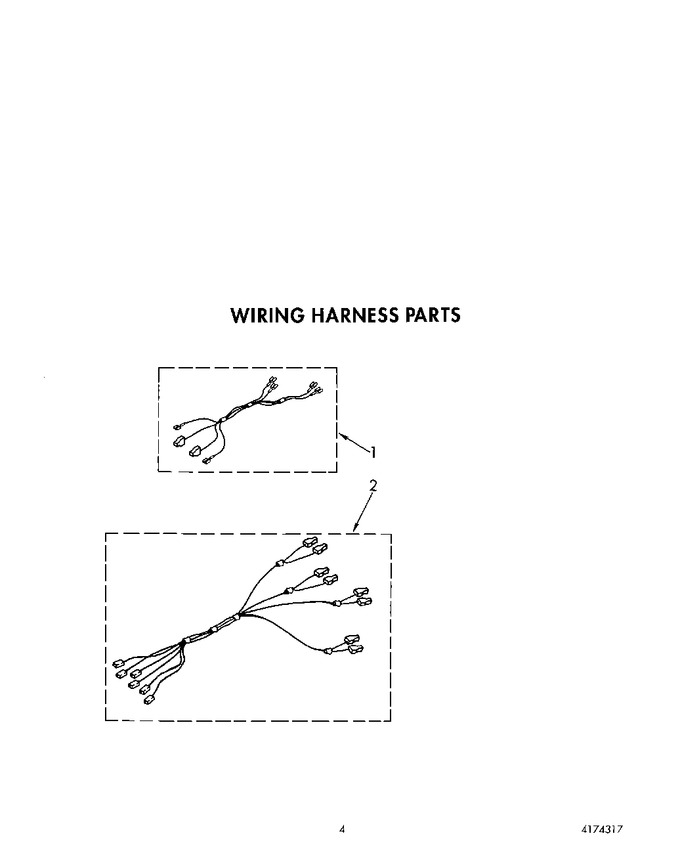

04 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3185831		Harness, Wire (ignitor)		Appelez-nous	-
2	3185832		Harness, Wire (switch)		Appelez-nous	-
2	3180474		Wire Assy. Module Ground		Appelez-nous	-
2	3185833		Cord, Power		Appelez-nous	-
2	4159465		Screw		Appelez-nous	-
2	WPW10339879		Tie, Wire (2)   (Replaces: 309330)				$ 7.11
2	4159603		Washer		Appelez-nous	-
2	3180600		Hardware, Mounting		Appelez-nous	-
2	4173627		Conversion Kit Natural Gas To L.p.		Appelez-nous	-
2	3179164		Tape, Foam		Appelez-nous	-
