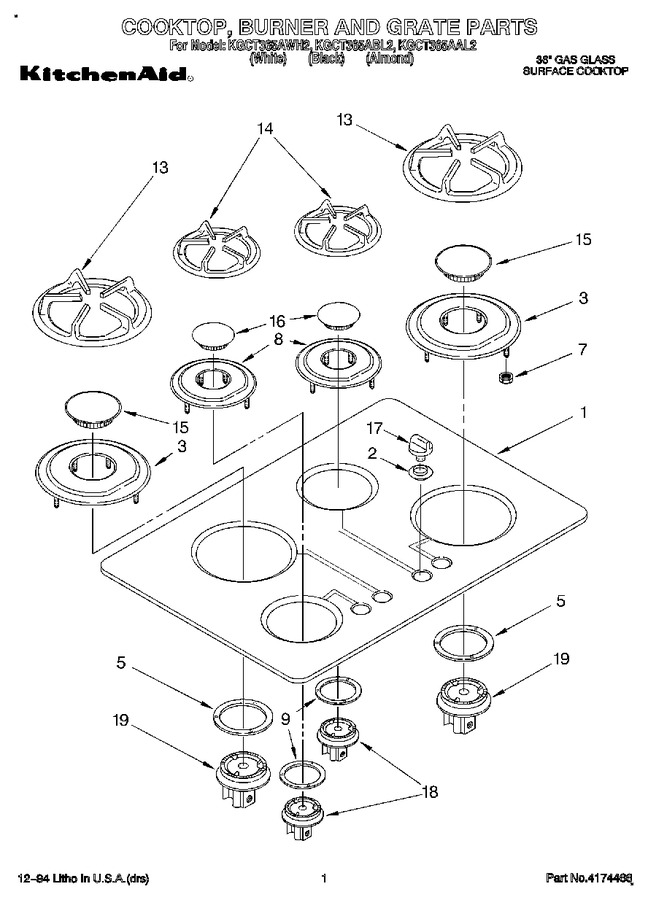

01 - Cooktop, Burner And Grate


02 - Sealed Gas Burner Kit


03 - Burner Box, Gas Valves, And Switches


04 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3185899		Cooktop, Glass (white)		Appelez-nous	-
1	3185897		Cooktop, Glass (black)		Appelez-nous	-
1	3185898		Cooktop, Glass (almond)		Appelez-nous	-
2	W10854241		Grommet, Glass Cooktop (4) (almond)   (Replaces: 3180080)				$ 6.87
2	WP3180081		Grommet, Glass Cooktop (4) (white)   (Replaces: 3180081)				$ 7.40
2	W10854242		Grommet, Glass Cooktop (4) (black)   (Replaces: 3180079)			Immediately	$ 7.58
3	3185819		Bezel, Cooktop (large) (almond (includes Illus. 5 And 7)		Appelez-nous	-
3	3185818		Bezel, Cooktop (large) (black)		Appelez-nous	-
3	3185820		Bezel, Cooktop (large) (white)		Appelez-nous	-
5	3181659		Gasket, Burner (large)		Appelez-nous	-
7	4166262		Nut, Hex (3)		Appelez-nous	-
8	3185816		Bezel, Cooktop (small) (almond (includes Illus. 7 And 9)		Appelez-nous	-
8	3185815		Bezel, Cooktop (small) (black)		Appelez-nous	-
8	3185817		Bezel, Cooktop (small) (white)		Appelez-nous	-
9	3181658		Gasket, Burner (small)		Appelez-nous	-
13	3186564		Grate, Large (rf & Lr) (black)		Appelez-nous	-
13	3186598		Grate, Large (rf & Lr) (white)		Appelez-nous	-
13	3186599		Grate, Large (rf & Lr) (almond L.f. & R.r. (includes No.12))		Appelez-nous	-
14	3186601		Grate (small) (includes No.12) (almond Model)		Appelez-nous	-
14	3186600		Grate (small) (includes No.12) (white Model)		Appelez-nous	-
14	3186565		Grate (small) (includes No.12) (black Model)		Appelez-nous	-
15	3185794		Cap, Rapid Burner Large (2) (white)		Appelez-nous	-
15	3185792		Cap, Rapid Burner Large (2) (almond)		Appelez-nous	-
15	3185793		Cap, Rapid Burner Large (2) (black)		Appelez-nous	-
16	3185795		Cap, Semi Rapid Small (2) (almond Burner (2))		Appelez-nous	-
16	3185796		Cap, Semi Rapid Small (2) (black)		Appelez-nous	-
16	3185797		Cap, Semi Rapid Small (2) (white)		Appelez-nous	-
17	WP3182567		Knob, Control (4) (black)   (Replaces: 3182567)				$ 26.96
17	WP3182569		Knob, Control (4) (almond)   (Replaces: 3182569)				$ 23.49
17	WP3182568		Knob, Control (4) (white)   (Replaces: 3182568)				$ 18.16
18	3185821		Burner, Small		Appelez-nous	-
19	3185822		Burner, Large		Appelez-nous	-
