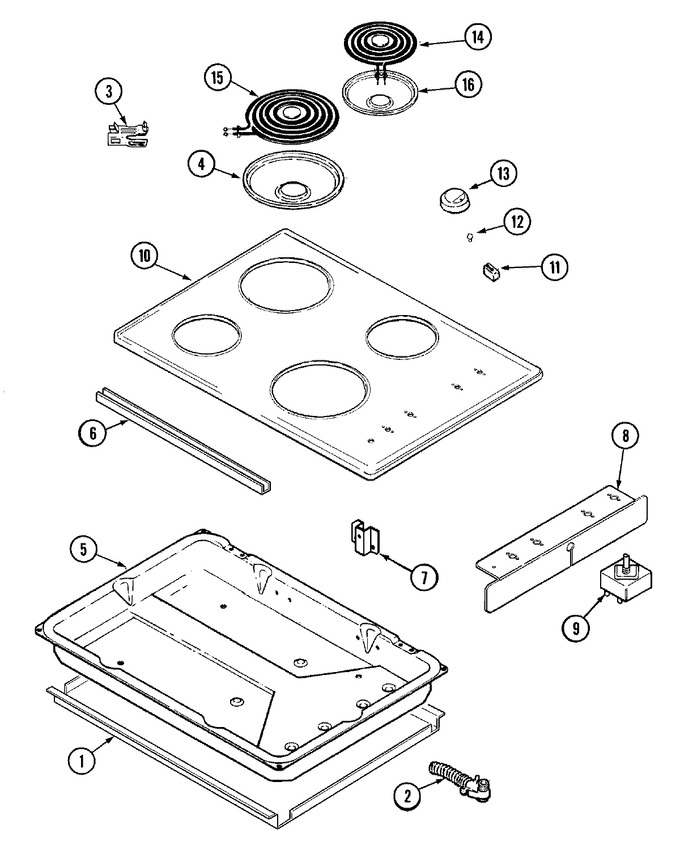

01 - Control Panel/top Assembly/body
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74004502 | Baffle, Main Top | 10 |
|
- | ||||
| 2 | 5700P840-60 | Cable, Conduit Assy (Replaces: 74004486) | 10 |
|
- | ||||
| 2 | 3801F072-45 | Bracket, Conduit | 10 |
|
- | ||||
| 3 | 12001676 | Kit, Receptacle (Replaces: 1430306K) | 10 |
|
Immediately | $ 28.45 | |||
| 4 | WPW10196405 | Bowl, Drip (8``-chr) (Replaces: 74001213) | 10 |
|
Immediately | $ 15.56 | |||
| 5 | 4011F143-80 | Bottom, Burner Box | 10 |
|
- | ||||
| 6 | 3802F070-51 | Brace, Top | 10 |
|
- | ||||
| 6 | WP7101P126-60 | Screw (Replaces: 7101P059-60) | 10 |
|
Immediately | $ 6.85 | |||
| 7 | 3801F183-45 | Bracket, Main Top Support | 10 |
|
- | ||||
| 8 | W11577436 | Grommet (Replaces: 8008P010-60) | 10 |
|
- | ||||
| 8 | 74004488 | Shield, Switch Wiring | 10 |
|
- | ||||
| 9 | 3400855 | Screw 8-32 (Replaces: Y704426) | 10 |
|
- | ||||
| 9 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 9 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 9 | 7103P021-60 | Nut, Switch | 10 |
|
- | ||||
| 10 | 74004489 | Top, Main (wht) | 10 |
|
- | ||||
| 10 | WP7101P126-60 | Screw (Replaces: 7101P059-60) | 10 |
|
Immediately | $ 6.85 | |||
| 11 | W10852510 | Light, Indicator (Replaces: 7407P102-60) | 10 |
|
$ 106.11 | ||||
| 12 | W11690131 | Lens, Indicator Light (Replaces: 7730P012-60) | 10 |
|
$ 6.73 | ||||
| 13 | 74004829 | Knob, Inf. Switch (wht) | 10 |
|
$ 17.99 | ||||
| 14 | WP12001559 | Element, Surface (6``) (Replaces: 74004090) | 10 |
|
$ 141.24 | ||||
| 14 | WPW10259868 | Element, Surface (6``) (Replaces: 74007157) | 11 |
|
Immediately | $ 112.28 | |||
| 15 | WP12001560 | Element, Surface (8``) (Replaces: 74004089) | 10 |
|
$ 172.17 | ||||
| 15 | WPW10345410 | Element, Surface (8``) (Replaces: 74007156) | 11 |
|
Immediately | $ 165.96 | |||
| 15 | W11740803 | Harness, Surface Element (Replaces: 74007807) | 10 |
|
- | ||||
| 16 | WPW10196406 | Bowl, Drip (6``-chr) (Replaces: 74001212) | 10 |
|
Immediately | $ 12.05 | |||
| 19 | 12001323 | Wire/terminal Kit | 10 |
|
- | ||||
| 20 | 74004491 | Use & Care Manual | 10 |
|
- | ||||
| 20 | 8111P473-60 | Manual, Use & Care | 13 |
|
- | ||||
| 21 | 16000327 | Guide, Quick Ref. - Maytag | 10 |
|
- |
