02 - Control Panel
03 - Door Parts
04 - Drawer Parts
05 - Gas Control
06 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

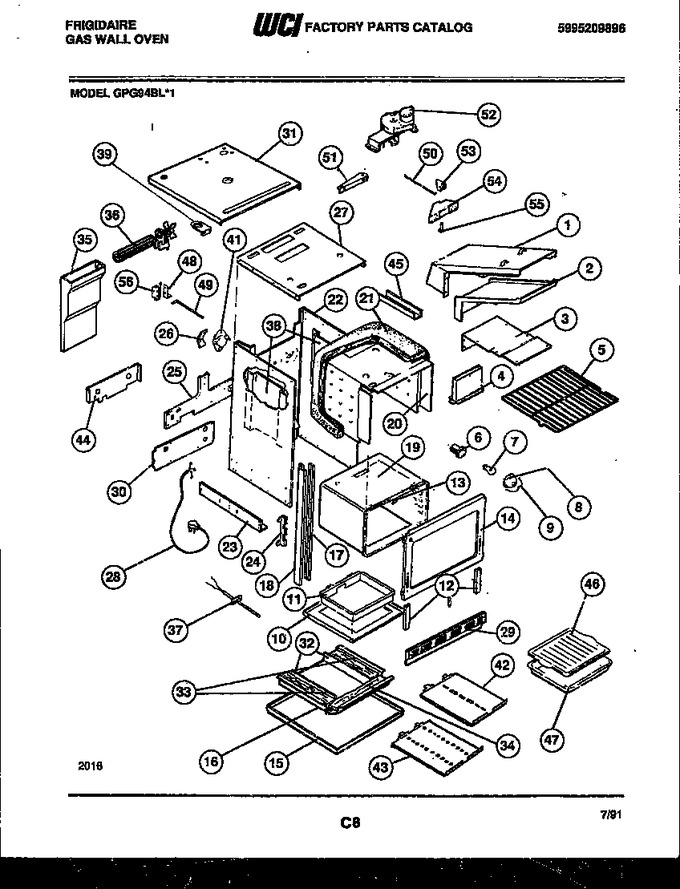

| 1 | 5303210822 | Shield - Flue Top |
|
- | |||||
| 2 | 3203725 | Flue |
|
- | |||||
| 3 | 3203686 | Shield - Flue Bottom |
|
- | |||||
| 4 | 3203730 | Flue Adaptor |
|
- | |||||
| 5 | 3202442 | Rack - Oven (2) |
|
- | |||||
| 6 | 316116400 | Socket - Light (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 7 | 40A15 | Bulb (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 8 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 9 | 3204483 | Retainer-lens |
|
- | |||||
| 10 | 5303210696 | Bottom - Oven |
|
- | |||||
| 11 | 530321700 | Box - Oven Burner |
|
- | |||||
| 12 | 3203688 | Support,oven Front |
|
- | |||||
| 13 | 3202082 | Cover-front Drum Seam |
|
- | |||||
| 14 | 3202449 | Front - Oven |
|
- | |||||
| 15 | 3202447 | Wrap - Outer Base |
|
- | |||||
| 16 | 5303210706 | Shield - Insulator Base |
|
- | |||||
| 17 | 3203665 | Trim Inner-lh |
|
- | |||||
| 18 | 3204414 | Trim-side-outer |
|
- | |||||
| 19 | 5303210715 | Liner |
|
- | |||||
| 20 | 3203684 | Shield - Insulation-t & S |
|
- | |||||
| 21 | 5303210713 | Insulation - Back |
|
- | |||||
| 22 | 5303210686 | Wrapper Outer-b & S |
|
- | |||||
| 23 | 3016278 | Support - Height Adj |
|
- | |||||
| 24 | 3201631 | Channel, Hinge |
|
$ 58.22 | |||||
| 25 | 5303210721 | Bracket - Safety Valve |
|
- | |||||
| 26 | 3204114 | Spring - Oven |
|
- | |||||
| 27 | 5303210683 | Wrapper, Top |
|
- | |||||
| 28 | 3203699 | Cord Power |
|
- | |||||
| 29 | 3202343 | Trim - Base Vent |
|
- | |||||
| 30 | 3203678 | Cover-wire |
|
- | |||||
| 31 | 5303210681 | Wrapper - Outer Top |
|
- | |||||
| 32 | 5303210705 | Angles - Shield |
|
- | |||||
| 33 | 5303210711 | Insulation - Sides |
|
- | |||||
| 34 | 5303210712 | Insulation - Front |
|
- | |||||
| 35 | 5303210839 | Duct - Blower Mtr W/a |
|
- | |||||
| 36 | 5303210808 | Motor - Blower Fan |
|
- | |||||
| 37 | 5303210806 | Probe - Oven Assy |
|
- | |||||
| 38 | 5303210841 | Shield - Bodysides |
|
- | |||||
| 39 | 5303210842 | Bracket - Thermo Protector |
|
- | |||||
| 41 | 5303210644 | Overload - Switch |
|
- | |||||
| 42 | 5303210843 | Shield - Lowerburner |
|
- | |||||
| 43 | 5303210844 | Shield - Insulation |
|
- | |||||
| 44 | 5303210845 | Shield - Housing Rear |
|
- | |||||
| 45 | 5303210846 | Shield-insulation |
|
- | |||||
| 46 | 5303019066 | Insert, Broiler Pan |
|
- | |||||
| 47 | 5303018808 | Pan - Broiler |
|
- | |||||
| 48 | 3202384 | Bracket - Switch Mtg |
|
- | |||||
| 49 | 3202077 | Rod-switch |
|
- | |||||
| 50 | 3016241 | Rod |
|
- | |||||
| 51 | 3016276 | Base Motor Mtg |
|
- | |||||
| 52 | 5303269766 | Motor Latch Assy |
|
- | |||||
| 53 | 3051648 | Latch |
|
- | |||||
| 54 | 3051647 | Housing, Latch |
|
- | |||||
| 55 | 5308012004 | Stud - Latch |
|
$ 8.29 | |||||
| 56 | 5303279258 | Switch - Oven Light |
|
- | |||||
| *49227 | 19100260007 | Wiring Diagram (not For Purchase) |
|
- | |||||
| 17A | 3203664 | Trim Inner-rh |
|
- | |||||
| 21A | 5303210714 | Insulation - Top |
|
- | |||||
| 21B | 5303210709 | Insulation, Adaptor |
|
- | |||||
| 21C | 5303210708 | Insulation, Oven Bottom |
|
- | |||||
| 21D | 5303210707 | Insulation - Wrapper |
|
- | |||||
| 55A | 3201632 | Spacer - Oven (non-illustrated) |
|
- | |||||
| 55B | 5303210710 | Insulation - Btm C/p (non-illustrated) |
|
- | |||||
| 55C | 3019069 | Latch Cover (non-illustrated) |
|
- | |||||
| 55D | 5303210851 | Shield W/a Burner Box (non-illustrated) |
|
- |
