01 - Cooktop, Burner And Grate

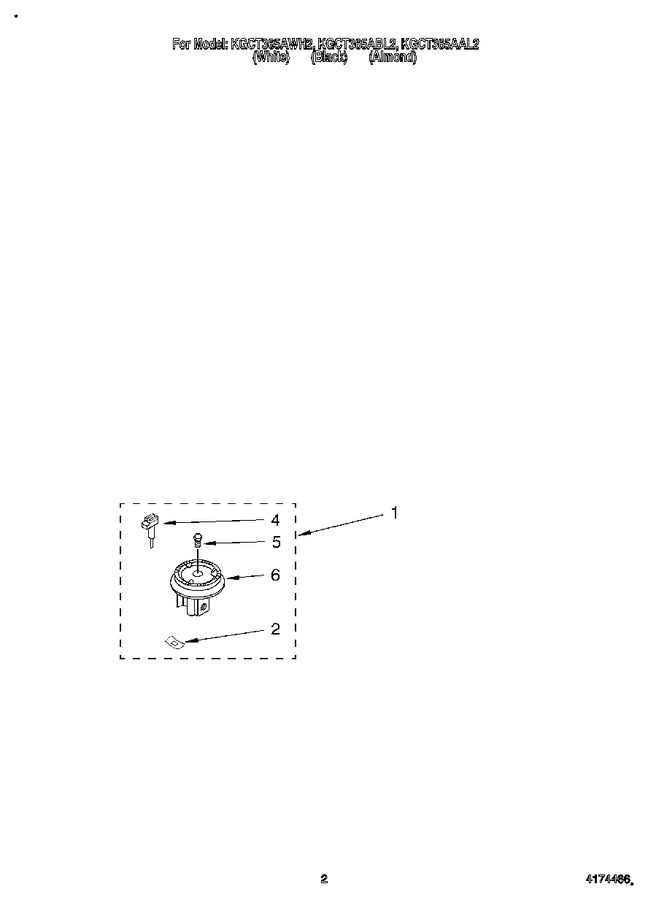

02 - Sealed Gas Burner Kit
03 - Burner Box, Gas Valves, And Switches
04 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 814244 | Sealed Gas Burner Kit (large Burner) |
|
- | |||||
| 1 | 814245 | Sealed Gas Burner Kit (small Burner) |
|
- | |||||
| 2 | 3185805 | Nut |
|
- | |||||
| 4 | 3185804 | Electrode |
|
$ 27.18 | |||||
| 5 | 3185948 | Orifice, Burner (small Burner) |
|
- | |||||
| 5 | 3185947 | Orifice, Burner (large Burner) |
|
- | |||||
| 6 | 3185821 | Burner, Sealed (small Burner (orifice Included)) |
|
- | |||||
| 6 | 3185822 | Burner, Sealed (large Burner (orifice Included)) |
|
- |
