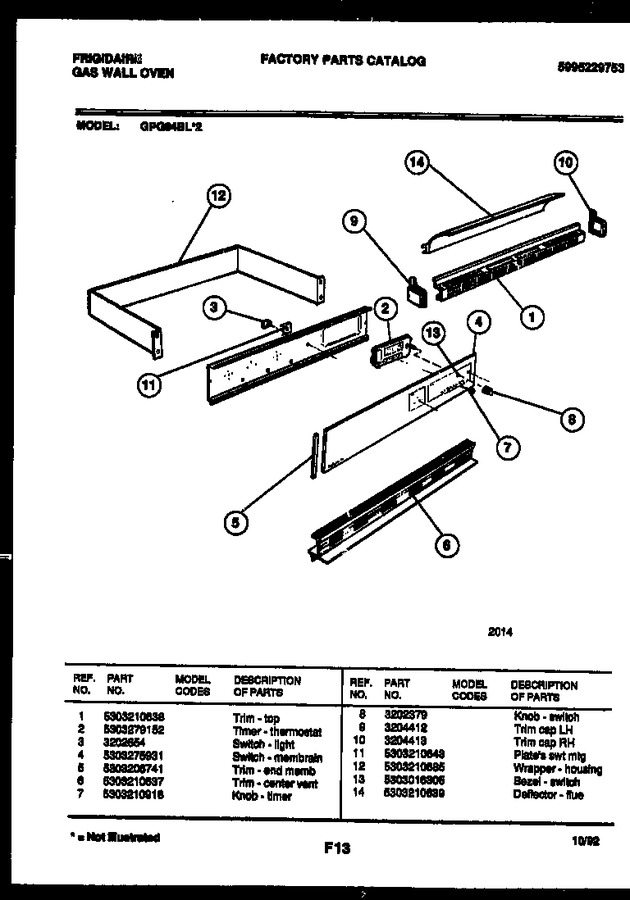

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303210638 | Trim - Top |
|
- | |||||
| 2 | 5303279152 | Timer - Thermostat |
|
- | |||||
| 3 | 3202654 | Switch-light |
|
- | |||||
| 4 | 5303275931 | Switch - Membrain |
|
- | |||||
| 5 | 5303206741 | Trim - End Memb |
|
- | |||||
| 6 | 5303210637 | Trim - Center Vent |
|
- | |||||
| 7 | 5303210918 | Knob-timer |
|
- | |||||
| 8 | 3202379 | Knob-switch |
|
- | |||||
| 9 | 3204412 | Trim-cap Lh |
|
- | |||||
| 10 | 3204413 | Trim-cap Rh |
|
- | |||||
| 11 | 3204413 | Trim-cap Rh |
|
- | |||||
| 12 | 5303210685 | Wrapper - Housing |
|
- | |||||
| 13 | 5303016305 | Bezel - Switch |
|
- | |||||
| 14 | 5303210639 | Deflector - Flue |
|
- |
