New Model Search:

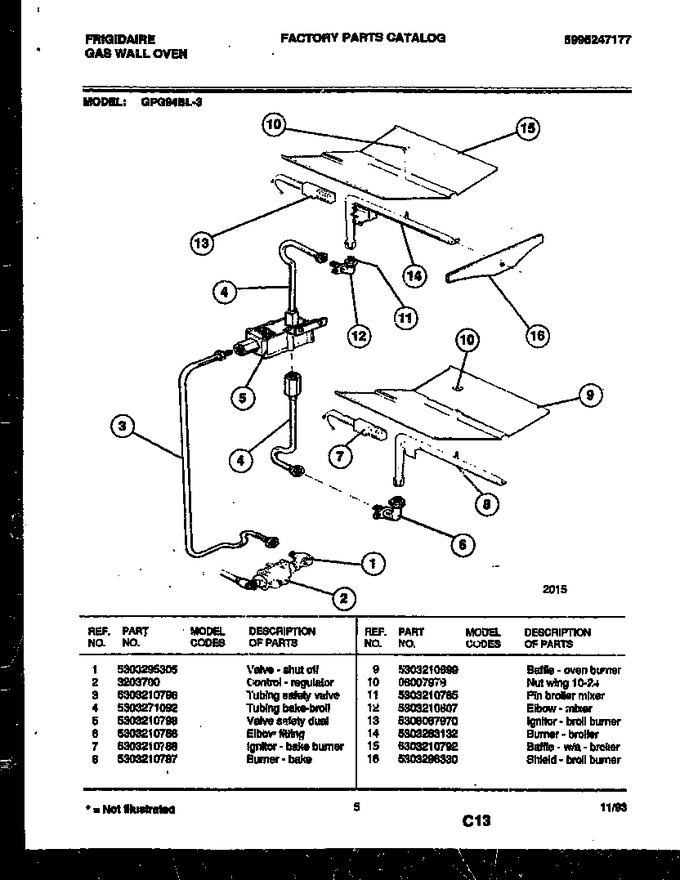

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303295305 | Valve-shut Off |
|
- | |||||
| 2 | 3203700 | Control Regulator |
|
- | |||||
| 3 | 5303210796 | Tubing Safety Valve |
|
- | |||||
| 4 | 5303271092 | Tubing Bake-broil |
|
- | |||||
| 5 | 5303210798 | Valve Safety Dual |
|
Immediately | $ 587.56 | ||||
| 6 | 5303210786 | Elbow Fitting |
|
- | |||||
| 7 | 5303210788 | Ignitor - Bake Burner |
|
- | |||||
| 8 | 5303210787 | Burner - Bake |
|
- | |||||
| 9 | 5303210699 | Baffle - Oven Burner |
|
- | |||||
| 10 | 08007979 | Nut Wing 10-24 |
|
- | |||||
| 11 | 5303210785 | Pin Broiler Mixer |
|
- | |||||
| 12 | 5303210807 | Elbow - Mixer |
|
- | |||||
| 13 | 5303935068 | Ignitor - Broil Burner (Replaces: 5308067970) |
|
$ 166.55 | |||||
| 14 | 5303283132 | Burner,broiler |
|
- | |||||
| 15 | 5303210792 | Baffle - W/a - Broiler |
|
- | |||||
| 16 | 5303296330 | Shield - Broil Burner |
|
- |
