SELECT A DIAGRAM

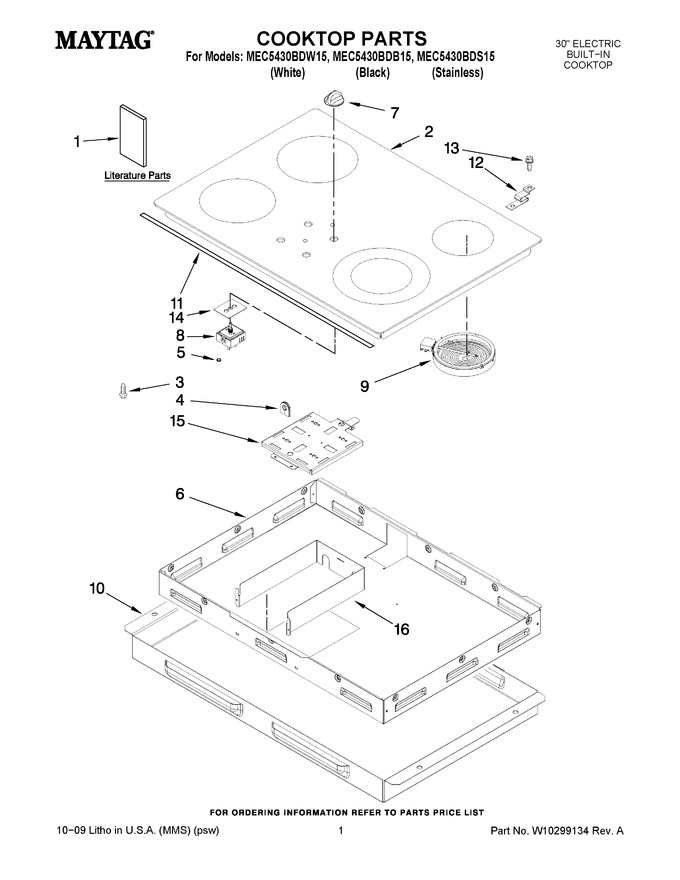

01 - Cooktop Parts


02 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8101P478-60		Installation Instructions		Appelez-nous	-
1	8111P523-60		Use & Care Guide		Appelez-nous	-
1	9762761		Safer Cooking Tips (english)		Appelez-nous	-
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
1	8119P207-60		Wiring Diagram (english)		Appelez-nous	-
1	8119P208-60		Wiring Diagram (french)		Appelez-nous	-
2	7920P211-60		Cooktop (black/stainless)				$ 463.86
2	7920P212-60		Cooktop (white)				$ 475.77
3	WP7101P309-60		Screw   (Replaces: 7101P309-60)			Immediately	$ 6.26
4	8008P068-60		Grommet, Wire				$ 14.39
5	WPW10293874		Grommet   (Replaces: 8008P076-60)			Immediately	$ 7.25
6	4011F508-51		Box, Burner				$ 108.68
7	WP74011260		Knob, Control (4) (black/stainless)   (Replaces: 7737P388-60)			Immediately	$ 15.17
7	WP74011408		Knob, Control (4) (white)   (Replaces: 7737P389-60)				$ 17.70
8	12002121		Switch, Infinite (rf)   (Replaces: 7403P816-60)				$ 108.89
8	WP74007840		Switch, Infinite (rr)   (Replaces: 7403P755-60)			Immediately	$ 163.25
8	WP74007841		Switch, Infinite (lr/lf)   (Replaces: 7403P754-60)				$ 144.45
9	W10823698		Element, Surface (lf)   (Replaces: 7406P421-60)			Immediately	$ 175.61
9	W10823692		Element, Surface (rf)   (Replaces: 7406P403-60)			Immediately	$ 204.83
9	W10823711		Element, Surface (rr)   (Replaces: 7406P365-60)			Immediately	$ 183.95
9	WP74011005		Element, Surface (lr)   (Replaces: 7406P420-60)			Immediately	$ 276.00
10	3601F384-51		Baffle, Bottom				$ 46.34
11	W10168883		Trim Stainless Only				$ 56.79
12	8004P093-60		Support, Ceramic				$ 10.61
13	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
14	WP71002569		Gasket, Switch   (Replaces: 7201P077-60)			Immediately	$ 9.06
15	3605F315-51		Plate, Switch		Appelez-nous	-
16	4005F708-51		Cover, Switch		Appelez-nous	-
