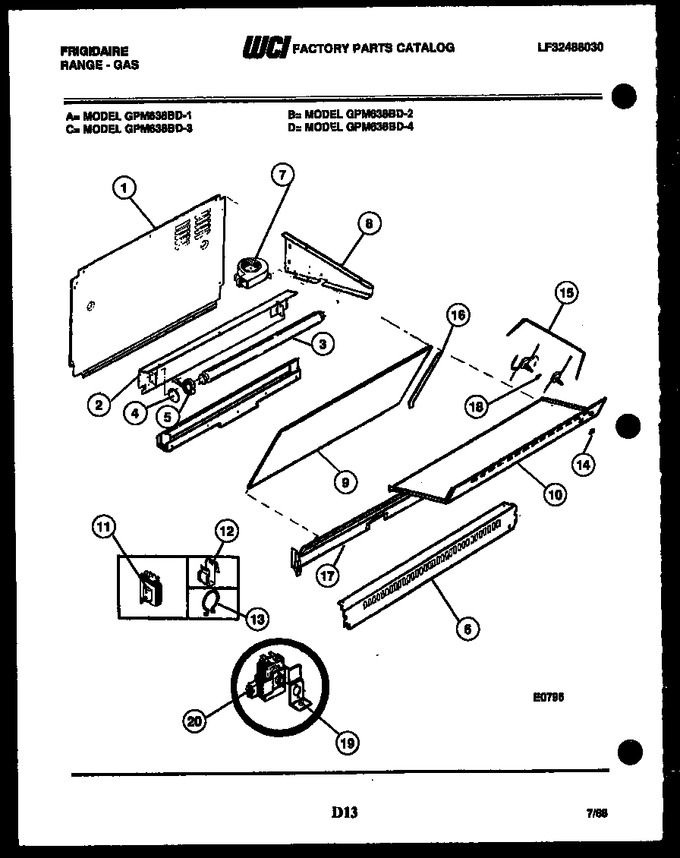

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08067729		Back, O/u Mid Wall		Appelez-nous	-
2	08067740		Reflector-work Lt.		Appelez-nous	-
3	08067739		Bulb-fluor Work Light		Appelez-nous	-
4	08067775		Insul. Fluor. Light Recept.		Appelez-nous	-
5	08010388		Receptacle Flo.		Appelez-nous	-
6	08067930		Trim Vent		Appelez-nous	-
7	08010396		Blower-motor Assy.		Appelez-nous	-
8	08067830		Gusset-mvw Suppt. (lh)		Appelez-nous	-
9	08067736		Glass, Splasher U/o		Appelez-nous	-
10	08012849		Pnl. Splasher (upper)		Appelez-nous	-
11	08067730		Ballast		Appelez-nous	-
12	08067733		Fstnr., Cable Clamp		Appelez-nous	-
13	08008992		Fstnr.-cable Clamp		Appelez-nous	-
14	08067927		Bezel-switch (2)		Appelez-nous	-
15	08067769		Harness, O/u Light Switch		Appelez-nous	-
16	08010548		Trim-o/u Spl. Side Lh		Appelez-nous	-
17	08067929		Trim-o/u Spl. Filler		Appelez-nous	-
18	08067832		Washer		Appelez-nous	-
19	08067831		Angle-s/c Stat.		Appelez-nous	-
20	08067928		Thermo.-oven S/c		Appelez-nous	-
16A	08010549		Trim-o/u Spl. Side Rh		Appelez-nous	-
8A	08067737		Gusset-mvw Suppt. (rh)		Appelez-nous	-
