SELECT A DIAGRAM
01 - Body
02 - Top Assembly
03 - Wiring Information
New Model Search:

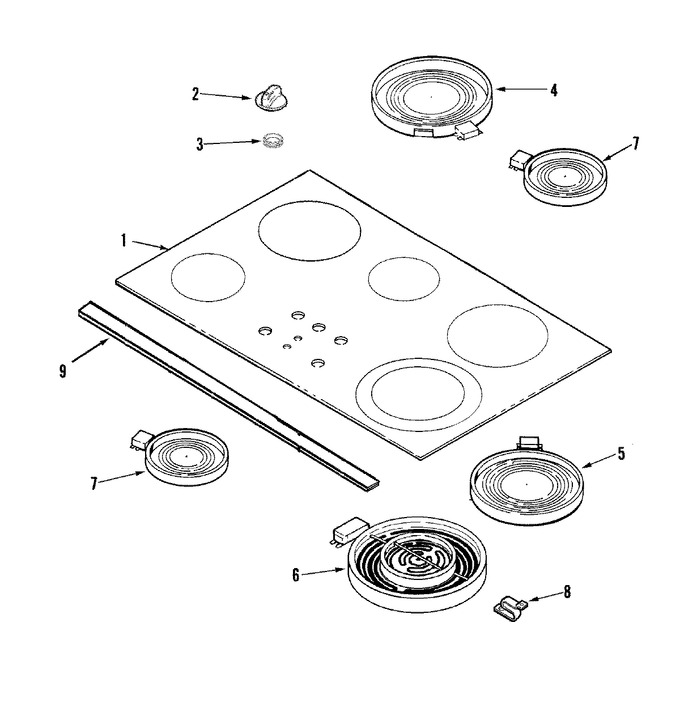

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12002793 | Tape, Foam (Replaces: 74007941) | 10 |
|
$ 70.97 | ||||
| 1 | 74007860 | Top, Glass (blk) | 10 |
|
- | ||||
| 2 | WP74011260 | Knob (blk) (Replaces: 74007883) | 10 |
|
Immediately | $ 15.17 | |||
| 2 | WP74011260 | Knob (blk) (Replaces: 74011260) | 12 |
|
Immediately | $ 15.17 | |||
| 3 | WPW10293874 | Grommet (Replaces: 74007885) | 10 |
|
Immediately | $ 7.25 | |||
| 4 | W10823697 | Element (2200w) (Replaces: 74008569) | 11 |
|
$ 326.21 | ||||
| 4 | W10823707 | Element W/limiter (8``) (Replaces: 74005477) | 10 |
|
Immediately | $ 316.13 | |||
| 5 | WP74011005 | Element (2000w) (Replaces: 74011005) | 11 |
|
Immediately | $ 276.00 | |||
| 5 | W10823708 | Element (2000w) (Replaces: 74007839) | 10 |
|
$ 307.60 | ||||
| 6 | W10823692 | Element, Dual (2400w) (Replaces: 74008897) | 11 |
|
Immediately | $ 204.83 | |||
| 6 | W10823694 | Element, Dual Rad.(2400/1000w) (Replaces: 71002168) | 10 |
|
Immediately | $ 320.29 | |||
| 7 | W10823704 | Element W/limiter (6``) (Replaces: 74005476) | 10 |
|
Immediately | $ 309.01 | |||
| 7 | W10823711 | Element (1200w) (Replaces: 74008568) | 11 |
|
Immediately | $ 183.95 | |||
| 8 | 74007845 | Support, Element | 10 |
|
- | ||||
| 9 | W10168884 | Trim (rear-36``-stl) (Replaces: 74008243) | 10 |
|
$ 149.79 | ||||
| 10 | 74007564 | Manual, Use & Care | 10 |
|
- | ||||
| 10 | 8111P474-60 | Manual, Use & Care | 12 |
|
- | ||||
| 10 | 8111P474-60 | Manual, Use & Care | 13 |
|
- | ||||
| 11 | 74007888 | Wires, Loose | 10 |
|
- | ||||
| 12 | 20001080 | Cooktop Cleaning Creme 4 Oz | 10 |
|
$ 3.95 | ||||
| 12 | WA906B | Razor, Scraper (Replaces: 74007585) | 10 |
|
Immediately | $ 4.86 |
