SELECT A DIAGRAM

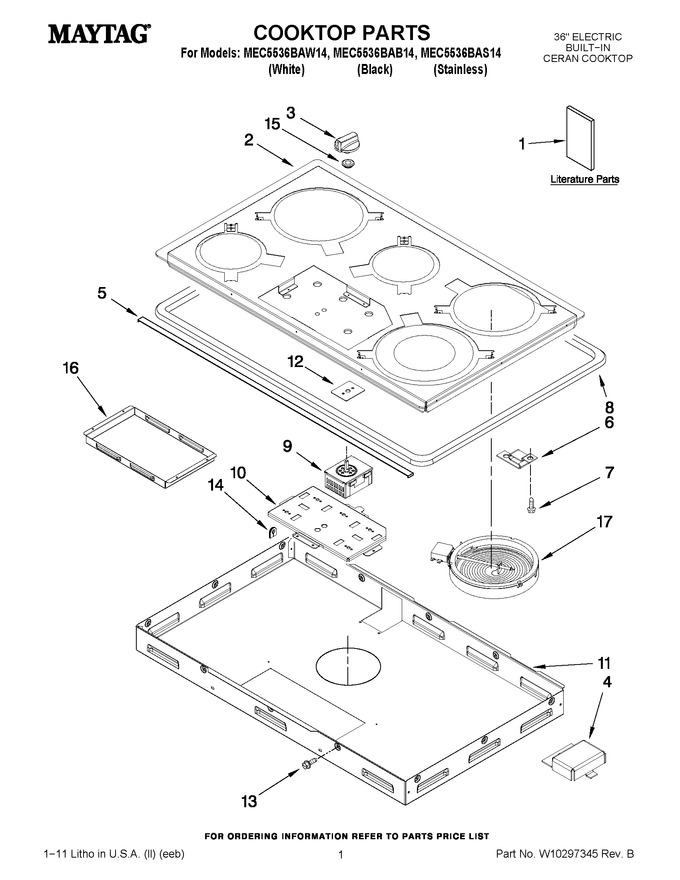

01 - Cooktop Parts
02 - Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8101P478-60 | Installation Instructions |
|
- | |||||
| 1 | 8119P209-60 | Tech Sheet (english) |
|
- | |||||
| 1 | 8119P210-60 | Tech Sheet (french) |
|
- | |||||
| 1 | 8111P523-60 | Use & Care Guide |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english) |
|
- | |||||
| 2 | 7920P210-60 | Cooktop, Glass (white) |
|
- | |||||
| 2 | 7920P209-60 | Cooktop, Glass (black) |
|
- | |||||
| 3 | WP74011260 | Knob, Control (black) (Replaces: 7737P388-60) |
|
Immediately | $ 15.17 | ||||
| 3 | WP74011408 | Knob, Control (white) (Replaces: 7737P389-60) |
|
$ 17.70 | |||||
| 4 | 3601F384-51 | Cover, Switch |
|
$ 46.34 | |||||
| 5 | W10168884 | Trim (ss Only) |
|
$ 149.79 | |||||
| 6 | 8004P093-60 | Spring Locator(10) |
|
$ 10.61 | |||||
| 7 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 8 | 12002793 | Seal, Foam (Replaces: 8270P188-60) |
|
$ 70.97 | |||||
| 9 | WP74007841 | Switch, Infinite (lr & Rr) (Replaces: 7403P754-60) |
|
$ 144.45 | |||||
| 9 | 12002121 | Switch, Infinite (dual (rf)) (Replaces: 7403P816-60) |
|
$ 108.89 | |||||
| 9 | WP74007840 | Switch, Infinite (lf & Cr) (Replaces: 7403P755-60) |
|
Immediately | $ 163.25 | ||||
| 10 | 3605F314-51 | Plate, Switch |
|
- | |||||
| 11 | 4011F515-51 | Box-burner |
|
- | |||||
| 12 | WP71002569 | Gasket, Switch (Replaces: 7201P077-60) |
|
Immediately | $ 9.06 | ||||
| 13 | WP7101P309-60 | Screw (Replaces: 7101P309-60) |
|
Immediately | $ 6.26 | ||||
| 14 | 8008P068-60 | Grommet, Wire |
|
$ 14.39 | |||||
| 15 | WPW10293874 | Grommet, Switch (Replaces: 8008P076-60) |
|
Immediately | $ 7.25 | ||||
| 16 | 4005F710-51 | Cover, Switch |
|
- | |||||
| 17 | W10823711 | Element, Surface (lf & Cr) (Replaces: 7406P365-60) |
|
Immediately | $ 183.95 | ||||
| 17 | WP74011005 | Element, Surface (rr) (Replaces: 7406P420-60) |
|
Immediately | $ 276.00 | ||||
| 17 | W10823692 | Element, Surface (dual (rf)) (Replaces: 7406P403-60) |
|
Immediately | $ 204.83 | ||||
| 17 | 7111P020-60 | Element, Surface (clamp, Wire) |
|
- | |||||
| 17 | 7002P276-60 | Element, Surface (insulation) |
|
- | |||||
| 17 | W10823697 | Element, Surface (lr) (Replaces: 7406P371-60) |
|
$ 326.21 |
